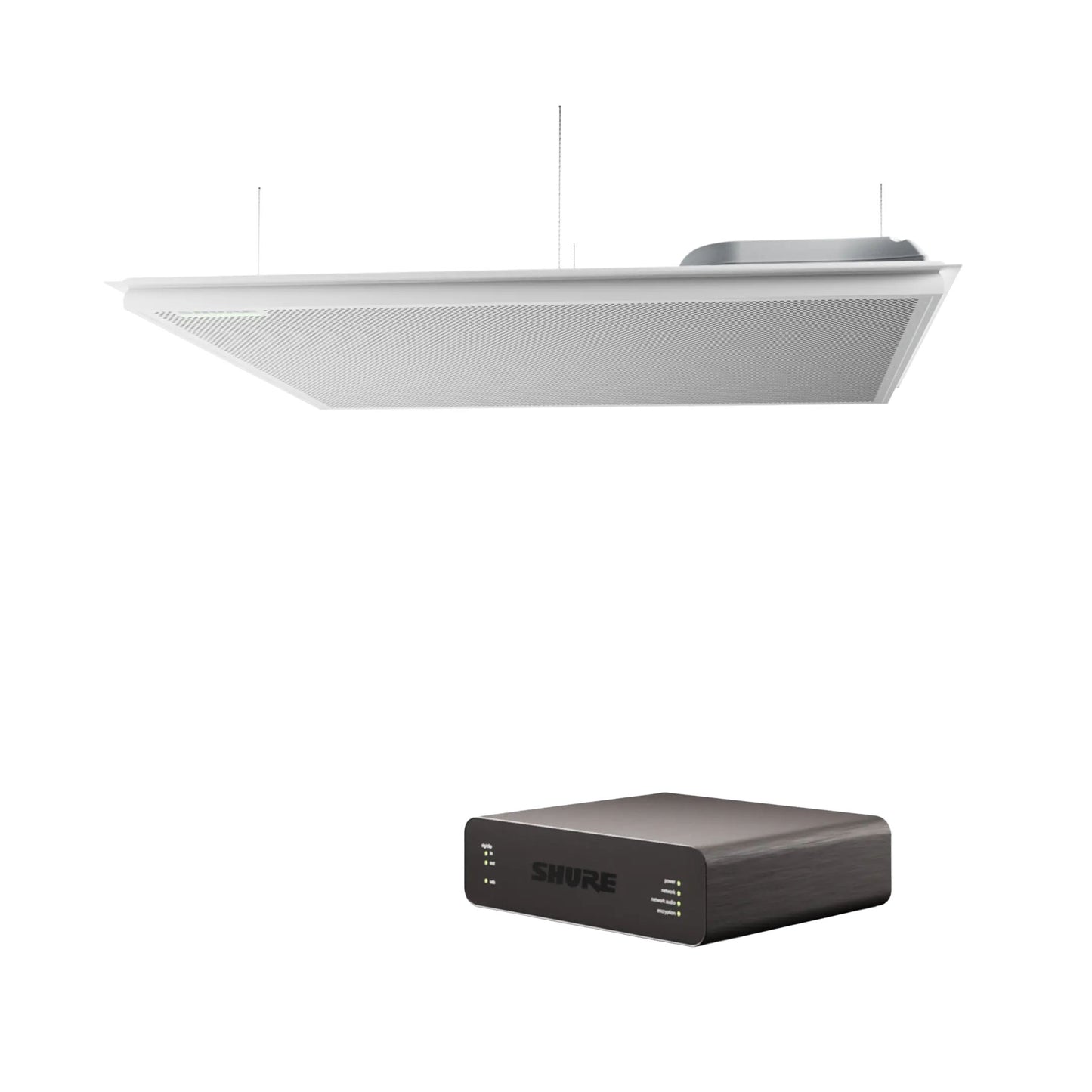

Shure MXA902 + ANIUSB-MATRIX Audio Conferencing Kit
Shure MXA902 + ANIUSB-MATRIX Audio Conferencing Kit
SoundPro Item: 146519 | Part Number: MXA902W-S-USB
Usually ships in 5-7 business days
- Array microphone, loudspeaker and DSP integrated in a single ceiling-mounted unit for enhanced meeting audio with minimal installation time
- Flawless integration and high-quality conferencing performance, certified for Microsoft Teams, Zoom Rooms, and Works with Google Meet
- A complete, premium audio solution for small and medium-sized rooms that ready to go out of the box - no configuration required
- Directly connect the system to an in-room PC that runs your conferencing application, with seamless USB connectivity via the ANIUSB-MATRIX Interface
- Connect the Kit to all-in-one systems to expand and improve audio coverage in large rooms or challenging spaces
High-quality, reliable meeting room audio is now easier than ever. Certified for Microsoft Teams and Zoom Rooms, and Works with Google Meet, this pre-routed Audio Conferencing Kit includes the MXA902 Integrated Ceiling Array Microphone + Loudspeaker, paired with the ANIUSB-MATRIX Audio Network Interface for a complete, easy-to-install and ready-to-use audio solution that ensures premium sound and full room coverage in small and medium-sized spaces, with quick, seamless connectivity to your preferred conferencing platform.
- Coverage Area Size20 x 20 ft (6.1 x 6.1 m)
- Coverage TypeSingle-zone automatic
- Power RequirementsPower over Ethernet Plus (PoE+), Class 4
- Power Consumption24 W maximum
- Control SoftwareDesigner
- Cable RequirementsCat5e or higher (shielded cable recommended)
- Connector TypeRJ45
- Plenum RatingUL2043 (Suitable for Air Handling Spaces)
- Dust ProtectionIEC 60529 IP5X Dust Protected
- Operating Temperature Range-6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range-29°C (-20°F) to 74°C (165°F)
- Microphone Elements113 MEMS
- Frequency Response125 Hz to 20 kHz
- AES67 or Dante Digital Output
- Channel Count: 1 output channel
- Sampling Rate: 48 kHz
- Bit Depth: 24
- Sensitivity (at 1 kHz)-1.74 dBFS/Pa
- Maximum SPL (Relative to 0 dBFS overload)95.74 dB SPL
- Signal-to-Noise Ratio (Ref. 94 dB SPL at 1 kHz)75.76 dB A-weighted
- Latency (Does not include Dante latency)26.6 ms
- Self Noise18.24 dB SPL-A
- Dynamic Range77.5 dB
- Digital Signal ProcessingAutomatic mixing, acoustic echo cancellation (AEC), noise reduction, automatic gain control, compressor, delay, equalizer (4-band parametric), mute, gain (140 dB range)
- Acoustic Echo Cancellation Tail LengthUp to 250 ms
- AES67 or Dante Digital Input Channel Count: 2 input channels
- Frequency Range (-10 dB)120 Hz to 20 kHz
- Maximum Output Level (At 1 meter)
- Pink noise: 86 dB SPL
- 1 kHz sine tone: 88 dB SPL
- Coverage Angle (Average of 1 octave band centered on 4 kHz)80°
- Digital Signal ProcessingDelay, compressor, signal generator, equalizer (4-band parametric)
- Latency (Not including Dante latency)6.3 ms
