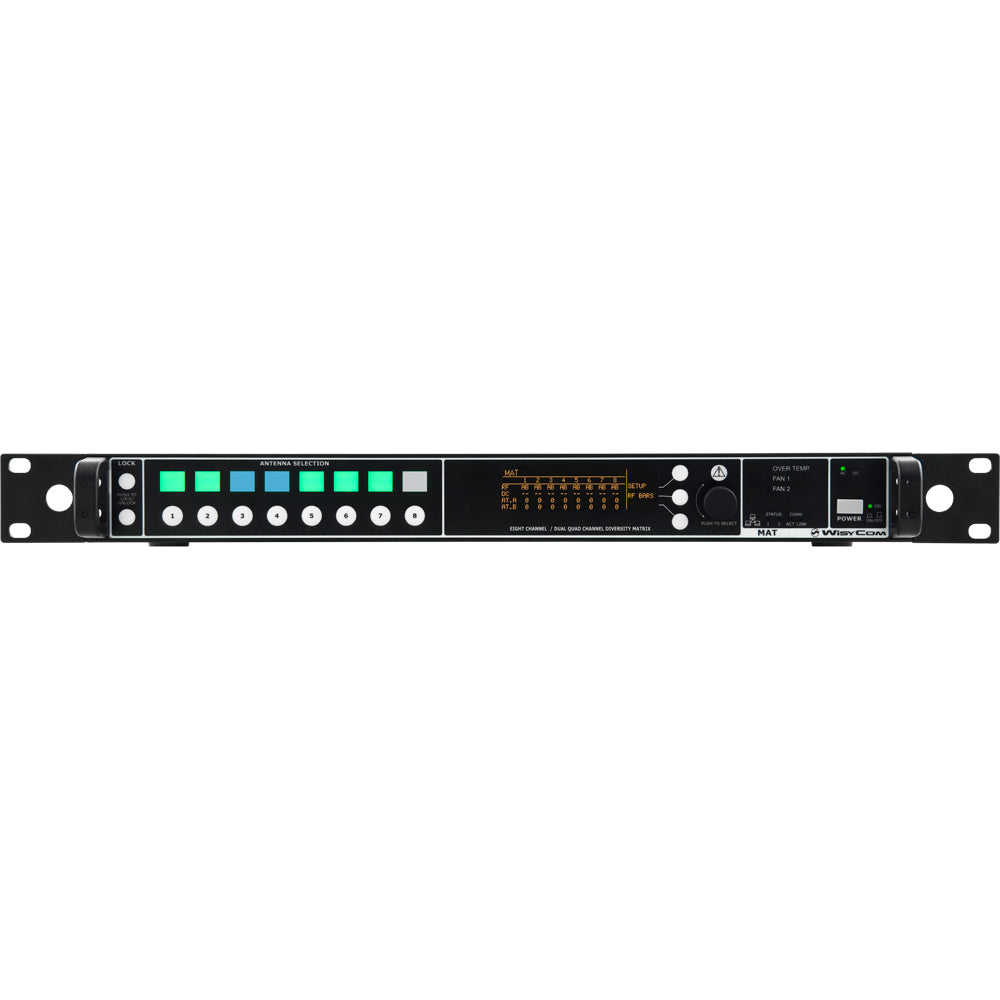

Wisycom MAT244-X1 Wideband Diversity Programmable 4:1 Matrix Combiner | Configuration: Standard
Wisycom MAT244-X1 Wideband Diversity Programmable 4:1 Matrix Combiner | Configuration: Standard
SoundPro Item: 150846
Usually ships in 5-7 business days
- Combiner mode: diversity 4:2 / non-diversity 8:1 or 8:4 (SW configurable)
- Wide bandwidth 150-1160 MHz operation
- Remote management and monitor of alarms thru Ethernet 10/100 base TX
- Antenna booster supply toggled on each input independently
- Voltage and current monitoring on each booster supply with alarm
- Programmable attenuators on each inputs
- Remote boost control (for gain/bandwidth) with a bidirectional data link thru coax (input BNCs)
- light window where the user can enter their own text to identify the 8 areas
The Wisycom MAT244 is a Wideband programmable diversity antenna matrix combiner for receive applications from 150MHz to 1160MHz. The MAT244 is used for expanding the receive coverage of microphones. The MAT244 allows for up to 4 zones of diversity coverage. Using the network connection, monitor and control the MAT244 from Wisycom Manager for PC. The MAT244 provides individual gain control for every input. The MAT244 can provide the 12V bias required for Wisycom active antennas. Utilize the full control of Wisycom smart antennas, such as the LFA, ADFA, and BFA. Connect via coaxial and manage the gain and filters of the antennas from hundreds of feet away on the panel of the MAT244, or through Wisycom Manager for PC. The MAT244-DC additionally offers 12VDC power input for redundancy.
- Frequency ranges150 - 1160 MHz (MAT244X1)
- Input/Output Gain
- 7 dB (Combiner 8:1)
- 0 dB (Combiner 8:4)
- 7 dB (Combiner 4:2)
- OIP3
- 30 dBm typ. (Combiner 8:1)
- 24 dBm typ. (Combiner 8:4)
- 30 dBm typ. (Combiner 4:2)
- Connector
- input: 8 BNC-F
- output: 4 BNC-F
- Impedance50 Ω
- Noise figure5.5 dB (each channel)
- Amplifier linearityAmplifier linearity
- Display64 x 256 OLED (yellow)
- Power supplyAC connector 90-264Vac /47-63Hz, (fuse protected) T2A-50W max
- Materialaluminum
- Finishingblack varnish
- Dimensions44 x 483 x 398 mm (HxWxD)
- Weight3,7 Kg
- Temperature Range-25 - +55 °C
- Managing Interface10/100 Base TX Ethernet port and thru frontal tactile buttons
- Antenna Booster Powering
- +12Vcc / 800mA MAX for ports 1A, 1B [2x4:2 conf] or for port 1,5 [other configuration]
- +12Vcc / 230mA MAX (other ports)
