ADAM Audio A4V 4-Inch Powered Studio Monitor
ADAM Audio A4V 4-Inch Powered Studio Monitor
SoundPro Item: 132526 | Part Number: A4V
Usually ships in 5-7 business days
- German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
- 4'' Woofer (Multi-Layer Mineral)
- Cumulated Amp. Power Peak: 130 W
- Frequency Response @ -6 dB: 52 Hz - 45 kHz
- Maximum SPL per speaker at 1 m: 100 dB SPL
- A Control remote software: control DSP-based functionality remotely and in real time over ethernet
- Rotatable HPS waveguide and X-ART tweeter
- Automated room correction with Sonarworks
- 5 year warranty
Designed for small studio spaces, short listening distances and immersive multi-speaker configurations, the A4V delivers accurate, full-bodied sound in a compact form factor.
The A4V is a two-way speaker incorporating a 4-inch long-throw woofer made from the same Multi-Layer Mineral (MLM) fibers as other A Series speakers plus the classic X-ART tweeter. Onboard DSP-based tuning capabilities let you easily dial in the perfect sound for your space. With a frequency range of 52 Hz to 45 kHz, the A4V can accommodate a broad spectrum of audio applications—from producing podcasts to mixing string quartets—and will fit well within immersive and 3D setups.
- Displayfront panel multi-color LED
- Cabinet Designdual front ported
- Cabinet Materialvinyl wrapped MDF and painted MDF front panel
- Mounting Optionsthreaded inserts on the bottom of the cabinet (4 x M8)
- Power Consumption
- Max: 220W
- Idle: 10W
- Sleep: 3.5W
- AC Input Voltage100-240V, 50/60Hz
- Power Rating300W max
- Audio Input Connectors
- Analog: XLR, RCA
- Input Impedance: 9 kohm / 3.3 kohm
- Max Input Level: +19dBu
- Woofer
- Amplification
- Amplifier Type: PWM
- Peak: 110W (10% THD, limiter deactivated)
- RMS: 90W (1% THD, limiter deactivated)
- Drivers
- Basket Diameter: 4"
- Voice Coil Diameter: 1"
- Cone Material: MLM
- Tweeter
- Amplification
- Amplifier Type: Class A/B
- Peak: 20W (10% THD, limiter deactivated)
- RMS: 15W (1% THD, limiter deactivated)
- Tweeter
- Type: X-ART
- Diaphragm Area: 4 inch²
- Equivalent Diaphragm Diameter: 2"
- Velocity Transform Ratio: 4 to 1
- Diaphragm Weight: 0.17 g
- Waveguide: HPS (rotatable)
- Waveguide Dispersion: 120° horizontal x 70° vertical
- Control Options (via Network)
- Networking Connector: RJ45
- Connection Type: Ethernet
- Communication Protocol: OCA using standard IP data
- Control Software: A Control (Windows and MacOS available)
- Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration
- Advanced Room Adaptation: 6 x PEQ, Level, Delay
- Third-party Calibration Compatibility: Import from Sonarworks SoundID Reference
- Acoustics
- Frequency Response @ -3 dB: 58 Hz – 41 kHz
- Frequency Response @ -6 dB: 52 Hz – 45 kHz
- Max SPL per Speaker at 1m: 100dB SPL
- Crossover Frequencies: 3 kHz
- Signal Processing
- AD Converter: 24-bit
- Internal Sample Rate: 96 kHz
- Delay Range, Resolution: 0 -10 ms, 0.1 ms
- Protection: independent peak and thermo limiters for each driver, and amplifier thermo limiters

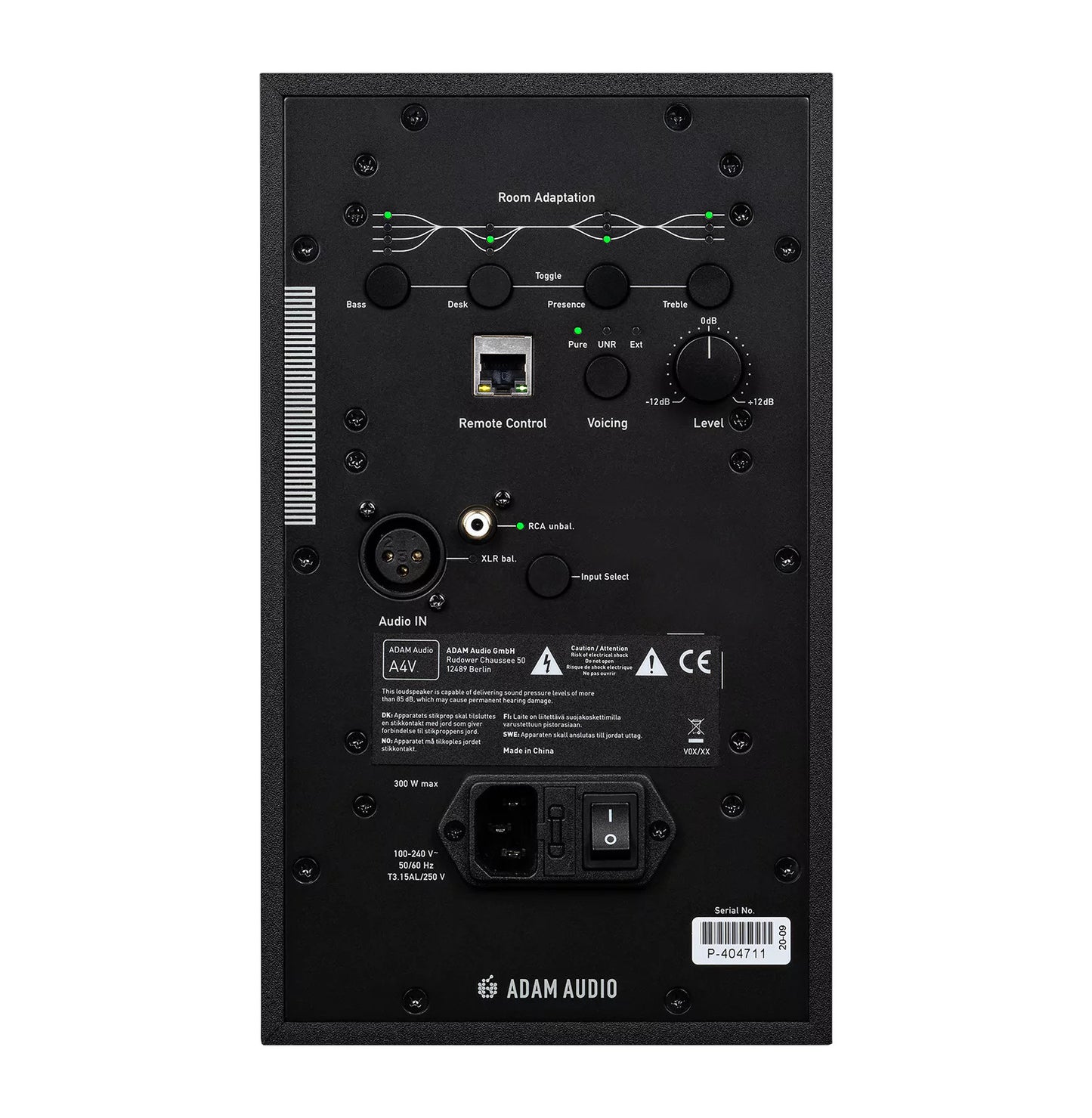

- Control Options (via Backplate)
- Input Sensitivity: 0dBu = 100dB SPL at 1 m @ 0 dB level setting
- Level: -12dB to +12dB
- Input Selection: balanced, unbalanced
- Voicings: Pure, UNR
- Room Adaption
- Bass: +2, 0, -2, -4 dB
- Desk: 0, -2, -4 dB
- Presence: +1, 0, -1 dB
- Treble: +1.5, 0, -1.5 dB
- Weight12.7 pounds
- Dimensions (HxWxD)10.5" x 6.25" x 8.6"
