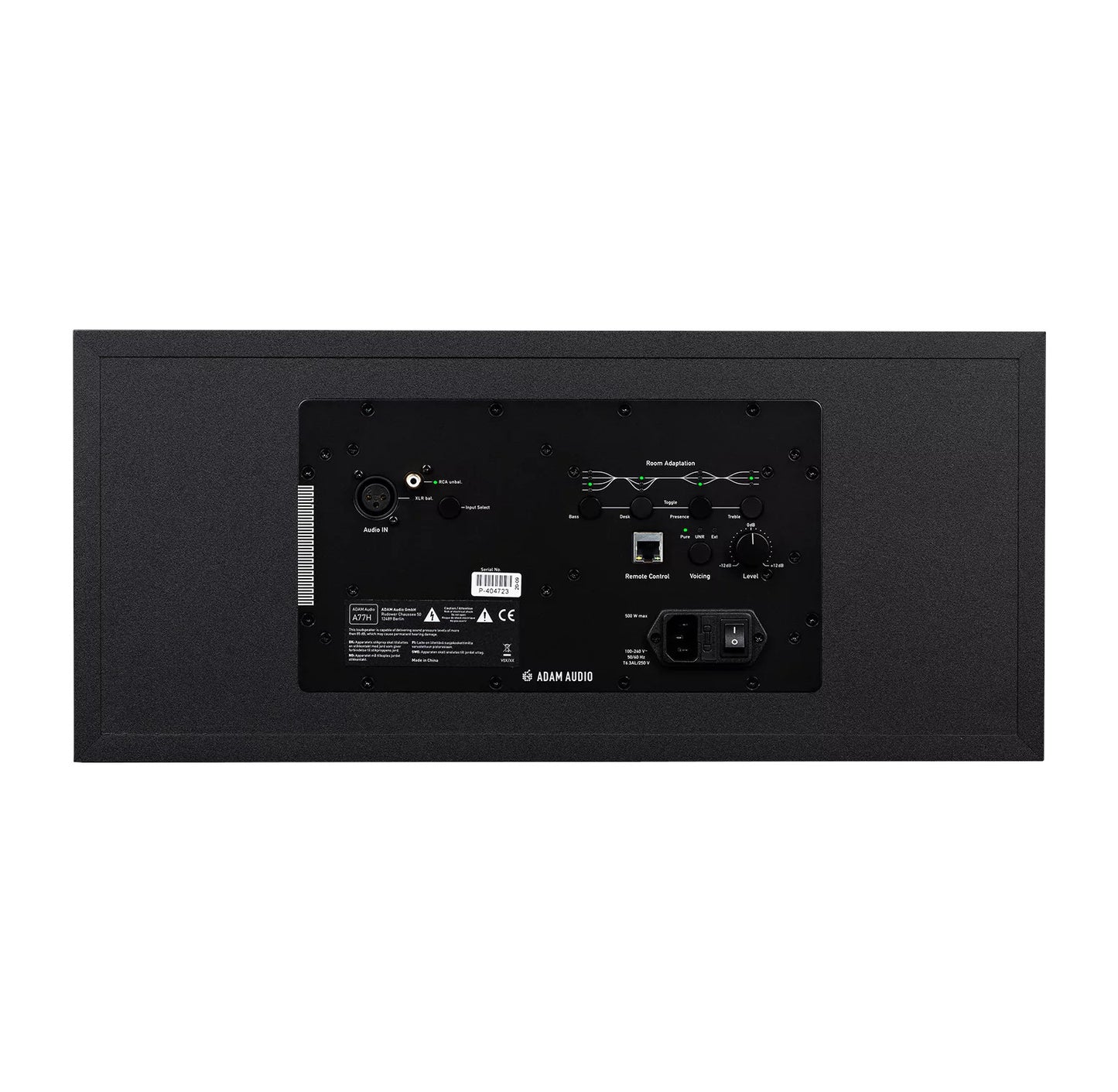

  • ADAM Audio A77H 3-Way Dual 7-Inch Powered Studio Monitor back
1 3

ADAM Audio A77H 3-Way Dual 7-Inch Powered Studio Monitor

ADAM Audio A77H 3-Way Dual 7-Inch Powered Studio Monitor

SoundPro Item: 132529 | Part Number: A77H

$1,499.99
$1,499.99 $1,499.99
Your Price Sold out
MSRP: $1,499.99 | MAP: $1,499.99

Usually ships in 5-7 business days

  • German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
  • 3.5" DCH Midrange Driver
  • 2 x 7'' Woofer (Multi-Layer Mineral)
  • Cumulated Amp. Power Peak: 340W
  • A Control Remote software: control DSP-based functionality remotely and in real time over ethernet
  • Rotatable HPS waveguide and X-ART tweeter
  • Automated room correction with Sonarworks
  • 5 year warranty
Log in or register for YOUR best price

The A77H is a true three-way midfield monitor that capitalizes on the latest ADAM Audio technologies to deliver a rich, spacious, and enveloping sound.

Incorporating two 7-inch woofers, a midrange driver, and ADAM Audio’s X-ART tweeter, the A77H delivers an ultra-wide frequency range. The addition of the midrange driver helps produce clear sound in the most sensitive range of human hearing. Rotatable HPS waveguide technology and onboard DSP allow you to tune the sound for your precise requirements.

View full details
  • Audio Input Connectors
    • Analog: XLR, RCA
    • Input Impedance: 9 kohm / 3.3 kohm
    • Max Input Level: +19 dBu
  • Amplification
    • Woofer
      • Amplifier Type: PWM
      • Peak: 250W (10% THD, limiter deactivated)
      • RMS: 200W (1% THD, limiter deactivated)
    • Midrange
      • Amplifier Type: Class A/B
      • Peak: 70W (10% THD, limiter deactivated)
      • RMS: 55W (1% THD, limiter deactivated)
    • Tweeter
      • Amplifier Type: Class A/B
      • Peak: 20W (10% THD, limiter deactivated)
      • RMS: 15W (1% THD, limiter deactivated)
  • Drivers
    • Woofer
      • Basket Diameter: 2x7"
      • Voice Coil Diameter: 1.5"
      • Cone Material: MLM
    • Midrange
      • Type: Dome Cone Hybrid (DCH)
      • Basket Diameter: 3.5"
      • Voice Coil Diameter: 1.3"
      • Cone Material: MLM
    • Tweeter
      • Type: X-ART
      • Diaphragm Area: 4 inch²
      • Equivalent Diaphragm Diameter: 2"
      • Velocity Transform Ratio: 4 to 1
      • Diaphragm Weight: 0.17 g
      • Waveguide: HPS (rotatable)
      • Waveguide Dispersion: 120° horizontal x 70° vertical
  • Crossover Frequencies400Hz, 300kHz
  • Signal Processing
    • AD Converter: 24-bit
    • Internal Sample Rate: 96 kHz
    • Delay Range, Resolution: 0 - 10 ms, 0.1 ms
    • Protection: independent peak and thermo limiters for each driver, and amplifier thermo limiters
  • Control Options (via Network)
    • Networking Connector: RJ45
    • Connection Type: Ethernet
    • Communication Protocol: OCA using standard IP data
    • Control Software: A Control (Windows and MacOS available)
    • Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration
    • Advanced Room Adaptation: 6 x PEQ, Level, Delay
    • Third-party Calibration Compatibility: Import from Sonarworks SoundID Reference
  • Control Options (via Backplate)
    • Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting
    • Level: -12dB to +12dB
    • Input Selection: balanced, unbalanced
    • Voicings: Pure, UNR
    • Room Adaption
      • Bass: +2, 0, -2, -4 dB
      • Desk: 0, -2, -4 dB
      • Presence: +1, 0, -1 dB
      • Treble: +1.5, 0, -1.5 dB
  • Displayfront panel multi-color LED
  • Cabinet Designdual front ported
  • Cabinet Materialvinyl wrapped MDF and painted MDF front panel
  • Mounting Optionsthreaded inserts on the bottom of the cabinet (4 x M8)
  • AC Input Voltage100 - 240 V, 50/60 Hz
  • Power Rating500 W max
  • Operating Conditions-10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
  • Weight37.7 pounds
  • Dimensions (HxWxD)9.25x20.8x13.75"
