ADAM Audio A7V 7-Inch Powered Studio Monitor

The evolution of an industry standard for use in an array of home, studio, and professional audio applications.

The A7V is a contemporary 2-way monitor that represents the evolution of ADAM Audio’s award winning A7X. It features a 7” Multi-Layer Mineral woofer and rotatable X-ART tweeter, which is made by hand in Berlin. DSP-based voicing, equalization and room correction options can be controlled remotely and in real time via the free-to-download A Control software, and updatable firmware allows for new filters and tunings to be implemented over the lifetime of the monitor.

ADAM Audio A7V Features

• German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
• 7'' Woofer (Multi-Layer Mineral)
• Cumulated Amp. Power Peak: 130 W
• Frequency Response @ -6 dB: 40 Hz - 45 kHz
• Max. peak SPL per speaker at 1 m: 105 dB SPL
• A Control remote software: control DSP-based functionality remotely and in real time over ethernet
• Rotatable HPS waveguide and X-ART tweeter
• Automated room correction with Sonarworks
• 5 year warranty

• A7V 7-inch powered studio monitor1
• Power cable1

• Audio Input Connectors
  • Analog: XLR, RCA
  • Input Impedance: 9kohm / 3.3kohm
  • Max Input Level: +19 dBu
• Amplification
  • Woofer
  • Amplifier Type: PWM
  • Peak: 110W (10% THD, limiter deactivated)
  • RMS: 90W (1% THD, limiter deactivated)
  • Tweeter
  • Amplifier Type: Class A/B
  • Peak: 20W (10% THD, limiter deactivated)
  • RMS: 15W (1% THD, limiter deactivated)
• Drivers
  • Woofer
  • Basket Diameter: 7"
  • Voice Coil Diameter: 1.3"
  • Cone Material: MLM
  • Tweeter
  • Type: X-ART
  • Diaphragm Area: 4 inch²
  • Equivalent Diaphragm Diameter: 2"
  • Velocity Transform Ratio: 4 to 1
  • Diaphragm Weight: 0.17 g
  • Waveguide: HPS (rotatable)
  • Waveguide Dispersion: 120° horizontal x 70° vertical
• Control Options (via Network)
  • Networking Connector: RJ45
  • Connection Type: Ethernet
  • Communication Protocol: OCA using standard IP data
  • Control Software: A Control (Windows and MacOS available)
  • Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration
  • Advanced Room Adaptation: 6 x PEQ, Level, Delay
  • Third-party Calibration Compatibility: import from Sonarworks SoundID reference

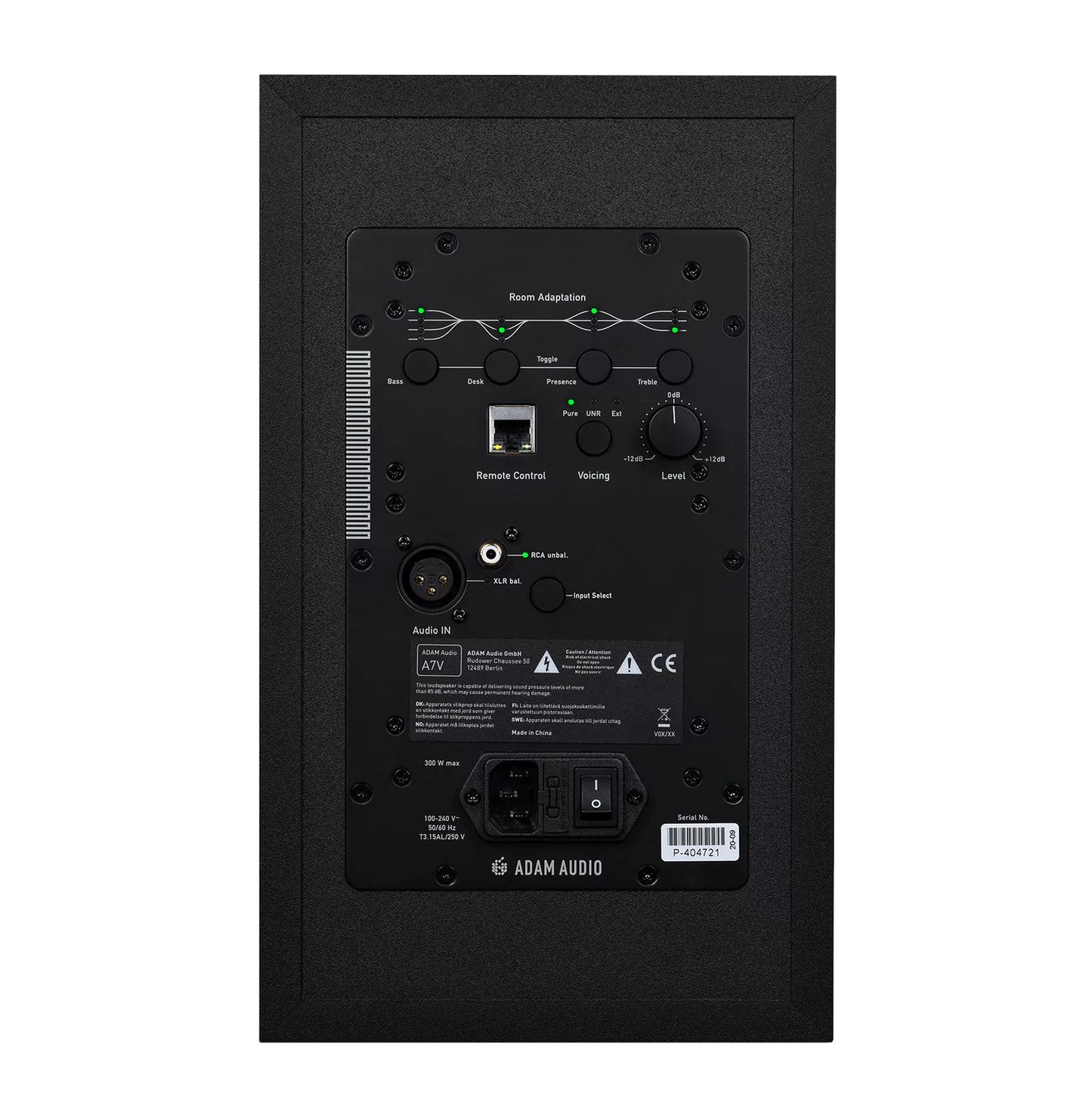

• Control Options (via Backplate)
  • Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting
  • Level: -12dB to +12dB
  • Input Selection: balanced, unbalanced
  • Voicings: Pure, UNR
  • Room Adaption
  • Bass: +2, 0, -2, -4 dB
  • Desk: 0, -2, -4 dB
  • Presence: +1, 0, -1 dB
  • Treble: +1.5, 0, -1.5 dB
• Acoustics
  • Frequency Response @ -3 dB: 44 Hz – 41 kHz
  • Frequency Response @ -6 dB: 40 Hz – 45 kHz
  • Max peak SPL per speaker at 1m: 105dB SPL
  • Crossover Frequencies: 2.8 kHz
• Signal Processing
  • AD Converter: 24-bit
  • Internal Sample Rate: 96 kHz
  • Delay Range, Resolution: 0 - 10 ms, 0.1 ms
  • Protection: independent peak and thermo limiters for each driver, and amplifier thermo limiters
• Power Rating300W max
• Power Consumption
  • Max: 220W
  • Idle: 10W
  • Sleep: 3.5W
• Displayfront panel multi-color LED
• Cabinet Designdual front ported
• Cabinet Materialvinyl wrapped MDF and painted MDF front panel
• Mounting Optionsthreaded inserts on the bottom of the cabinet (4 x M8)
• AC Input Voltage100 - 240 V, 50/60 Hz
• Operating Conditions-10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
• Weight19.1 pounds
• Dimensions (HxWxD)13.25" x 7.8" x 11"
