Alfatron Electronics 10X-CAM USB3.0 PTZ Camera
Alfatron Electronics 10X-CAM USB3.0 PTZ Camera
SoundPro Item: 111949 | Part Number: 10X-CAM
Usually ships in 5-7 business days
- 1080P video with a Frame rate up to 60fps
- 10x Zoom Lens gives you clear and a fluent image
- Leading Auto Focus Technology
- Low Noise and High SNR
- Quiet PTZ
- 255 Presets
- Controlled via RS232, RS485, and IR remote control
- Multiple Network Protocol – Supports IP VISCA, ONVIF, RTSP & RTMP
- Control Protocols – VISCA IP, ONVIF, PELCO-D, PELCO-C and VISCA standard protocols
- 12V DC or USB Powered
- 16.43° tele field of view, 60.9° wide field of view
- Wide Application – Tele Education, Lecture Capture, Webcasting, Video Conferencing, Tele Training, Tele Medicine, Interrogation and Emergency command systems
The ALF-10X-Cam is an HD PTZ 1080p equipped camera with a 10x Zoom Lens. This PTZ camera is suitable for medium to large size meeting rooms, boardrooms and conference venues.
- ModelALF-10X-CAM
- Camera Parameter
- Sensor: 1/2.8-inch-high quality HD CMOS sensor
- Effective Pixels: 16: 9 2.07 megapixel
- Video Format
- HDMI/ video format: 1080P60/50/30/25/59.94/29.97;1080I60/50/59.94;720P60/50/30/25/59.94/29.97
- Interface video format: 1)1920X1080P60/50/30/25; 1280X720P60/50/30/25; 960X540P30; 640X360P30; 640X480P30; 352X288P30; 960X540P30
- Optical Zoom
- 10X
- f=4.7~47mm
- Viewing Angle: 6.43°(Tele)60.9°(Wide)
- AV: F1.6 – F3.0
- Digital Zoom: 10X
- Minimum Illumination: 0.5Lux (F1.8, AGC ON)
- DNR: 2D & 3D DNR
- White Balance: Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
- Focus: Auto/Manual
- Aperture: Auto/Manual
- Electronic Shutter: Auto/Manual
- BLC: ON/OFF
- WDR: OFF/ Dynamic level adjustment
- Video adjustment: Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
- SNR: >55dB
- Input/Output Interface

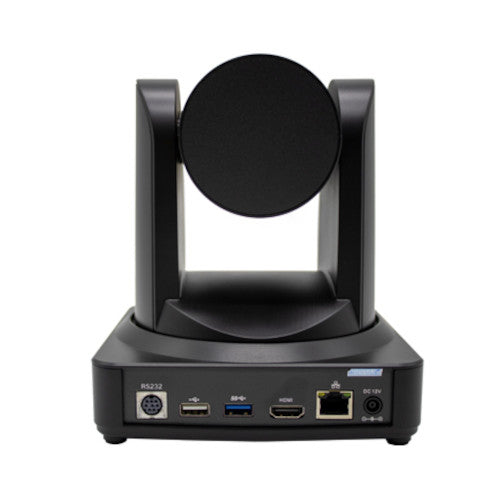

- Video Interfaces: ALF-10-CAM USB2.0, USB3.0, HDMI, LAN, RS232(input)
- Image code stream: Double streams output simultaneously
- Video Compression format: H.264, H.265
- Control Signal Interface: RS-232 Ring through RS232 output, RS-485
- Control Protocol: VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps
- HD IP Interface: 100M IP port(100BASE-TX); 5G WiFi (optional), support IP Visca control protocol
- Network Protocol: RTSP/RTMP,ONVIF
- Power Interface: HEC3800 outlet (DC12V)
- PTZ Parameter
- Pan Rotation: ±170°
- Tilt Rotation: -30°~+90°
- Pan Control Speed: 0.1 -180°/sec
- Tilt Control Speed: 0.1-80°/sec
- Preset Speed: Pan: 60°/sec, Tilt: 30°/sec
- Preset Number: 255 presets (10 presets by the remote controller)
- Other Parameter
- Supply Adapter: AC110V-AC220V to DC12V/2A
- Input Voltage: DC12V±10%
- Input Current: 1A(Max)
- Consumption: 12W (Max)
- Store Temperature: -10°C to +60°C
- Store Humidity: 20% – 95%
- Working Temperature: -10°C to +50°C
- Working Humidity: 20%–80%
- Dimension: 150x150x167.5mm
- Weight: 1.4KG
- Working Environment: Indoor
- Remote Operation (IP): Remote Upgrade, Reboot, and Reset
