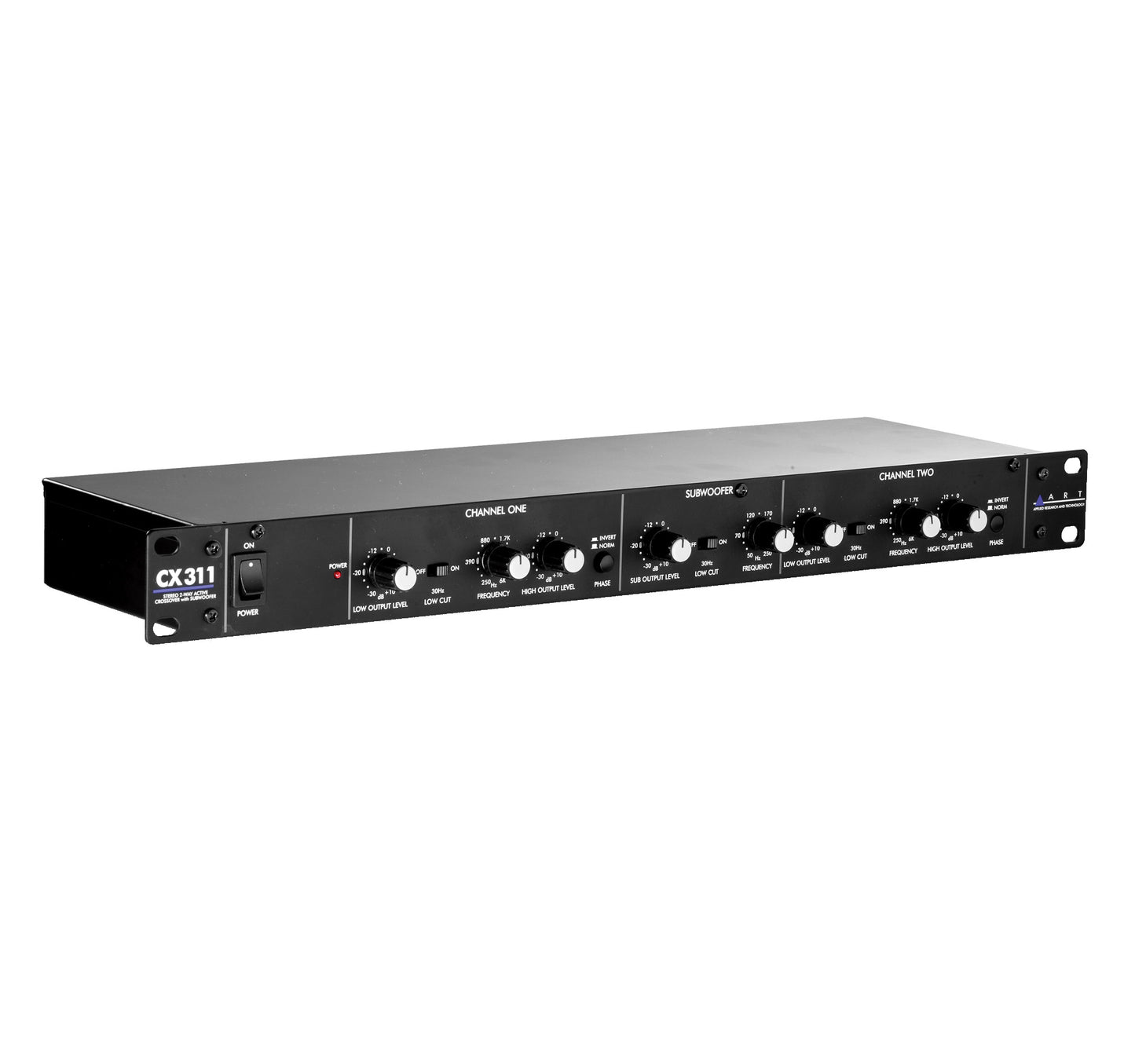

ART CX311 Stereo 2-Way Crossover with Subwoofer Out
ART CX311 Stereo 2-Way Crossover with Subwoofer Out
SoundPro Item: 88019 | Part Number: CX311
Usually ships in 5-7 business days
- Each channel features independent high and low output level controls and a crossover frequency rotary control which covers a wide range (250hz to 6khz)
- All three outputs have a 30 cycle low cut switch to eliminate low-end rumble
- Subwoofer features an independent output level and rotary control for frequencies in the 50hz to 250hz range
- Stereo two-way crossover
- Subwoofer output
- Fourth-order Linkwitz-Riley filters (24dB / octave state-variable)
- Independent high and low output level controls
- Crossover frequency rotary control (250hz to 6khz)
- 30 cycle low cut switch
- Independent output level and rotary control (50hz to 250hz)
The CX311 from ART is two-way stereo crossover network with an additional subwoofer output for low-end frequency reinforcement. It employs 24dB/octave state-variable, Fourth-order Linkwitz-Riley filters that guarantee properly phased outputs at all frequencies which is optimal for the proper acoustic summing of common signals from adjacent drivers in the crossover region.
- Dimensions (HxWxD)1.75x19x5.5”
- Weight 4.85 lbs. (2.2 kg)
- Input Connections XLR, ¼” TRS, balanced
- Output Connections ¼”TS, unbalanced
- Input Impedance 100K ohms
- Output Impedance 220 ohms
- Maximum Input Level +21dBu
- Maximum Output Level +21dBu
- CMRR >75dB (typical @ 1kHz)
- Frequency Response 10Hz to 40kHz, +/-.5dB
- Signal to Noise Ratio
- >95dB, Ref: 0dBu
- 20Hz to 20kHz, unweighted
- Dynamic Range >114dB
- Total Harmonic Distortion <0.01% (20Hz-20kHz,0dBu)
- Crossover Filter Type Fourth-order Linkwitz-Riley, 24dB/octave, state-variable
- Crossover Frequency Range 250Hz to 6kHz
- Subwoofer Filter Type Two-pole Butterworth, 12dB/ octave
- Subwoofer Frequency Range 50Hz to 250Hz
- Power Requirements USA – 110-125V AC / 50-60hz/ 15W Export units configured for country of destination.
