ART S8-3WAY 8-Channel Mic Splitter
ART S8-3WAY 8-Channel Mic Splitter
SoundPro Item: 87939 | Part Number: S8-3WAY
Usually ships in 5-7 business days
- High-quality passive interface
- 8 high-performance transformers
- One (1) direct and two (2) transformer isolated output per channel
- Balanced XLR input and 3 balanced XLR per channel
- Extremely wide frequency response
- Extremely low voltage insertion loss
- Reversible rack ears for added system flexibility
- Live Sound
- Permanent/Fixed install
- Studio applications

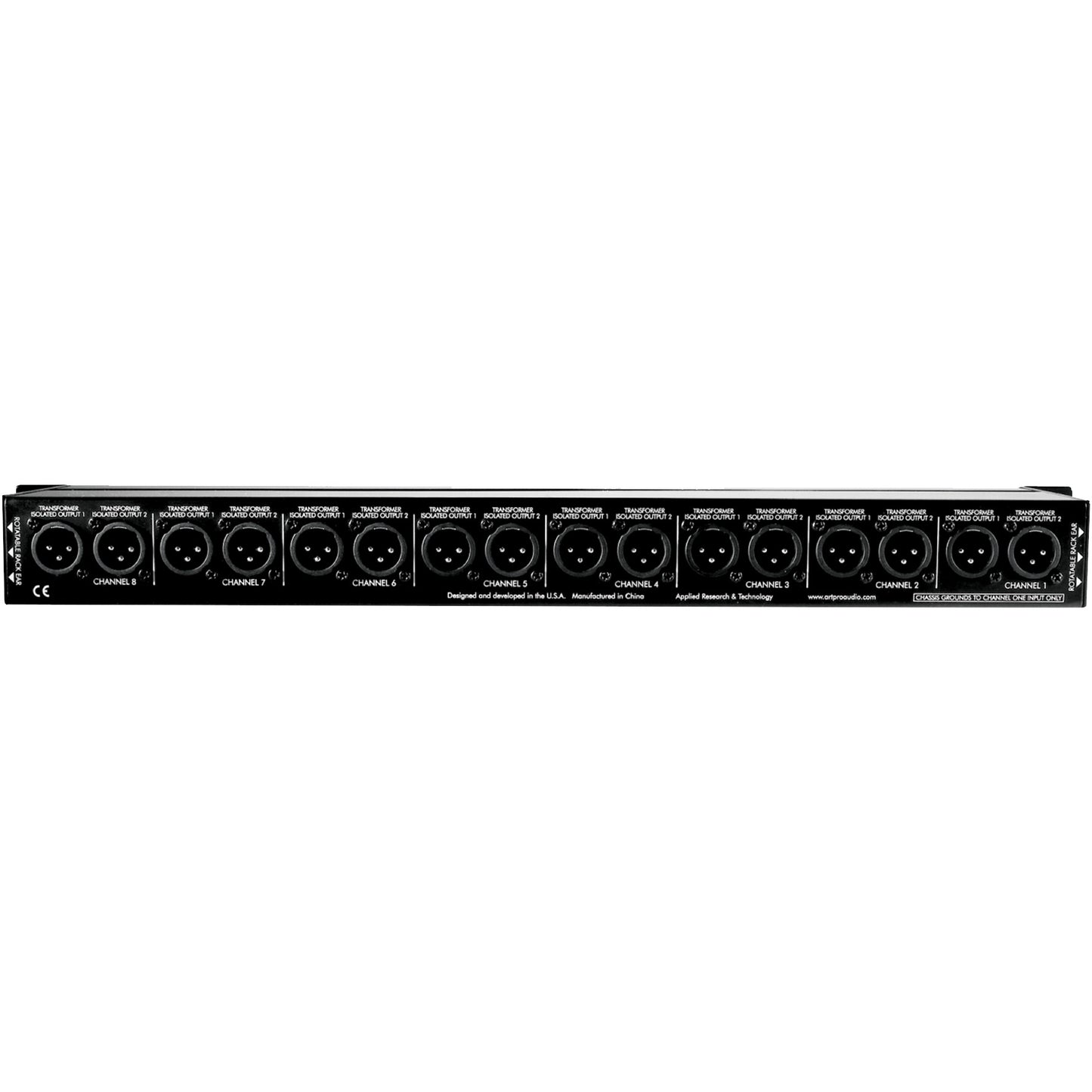

ART’s S8-3WAY 8-Channel Mic Splitter is for live sound, recording, and broadcasting where mic/XLR balanced line level input signals go to multiple mix locations. Each channel provides one XLR input, one XLR direct output with two additional transformer isolated XLR outputs for a total of 3 balanced outputs from each single microphone input signal.
Typical uses would include sending 8 direct signals through the S8-3WAY to a main Front-of-house mixer, with additional feeds going to a monitor mix station while transformer balanced isolated feeds are sent to remote recording desk or used for a broadcast feed.
The ART S8-3WAY features the same high-quality musical sounding transformers used in the popular ART S8, and is housed in a standard 1U space rack-mountable steel chassis designed for years of reliable operation.
- Frequency Response20 Hz to 20K Hz, ±0.25 dB @ -15 dBu, -3 dB at approximately 165K Hz
- THD + NOISE
- Less than 0.26% from 20 Hz to 20K Hz at –15 dBu input
- Less than 0.1% from 45 Hz to 20K Hz at –15 dBu input
- 0.002% Typical at 1K Hz, –15 dBu input
- Phase ResponseLess than 10 degrees at 20K Hz (ref. 1K Hz)
- Input ImpedanceGreater than 1.1K Ohms at 1K Hz (Typical driving source impedance is 150 Ohms)
- Output ImpedanceLess than 255 Ohms at 1K Hz (Typical output load impedance is 1K Ohms)
- Common Mode Rejection RatioGreater than 105 dB @ 60 Hz, Greater than 80 dB @ 3K Hz
- Voltage Insertion LossApproximately 2 dB at 1K Hz
- Max Input Level for 1% THD-1.4 dBu at 20 Hz, +3.5 dBu at 30 Hz, +9.4 dBu at 50 Hz
- Dimensions (HxWxD)1.75x19x3.75” (44.5x482.6x95mm)
- Weight3.75 lbs. (1.7 kg)
- Ref0 dBu = 0.775 VRMS
