Audix TM1 Plus Omni Condenser Measurement Microphone
Audix TM1 Plus Omni Condenser Measurement Microphone
SoundPro Item: 41618 | Part Number: TM1PLUS
Usually ships in 5-7 business days
- 6mm pre-polarized condenser capsule
- Hi SPL response
- Precision machined brass housings
- Low noise electronics
- Replaceable electronics and capsule

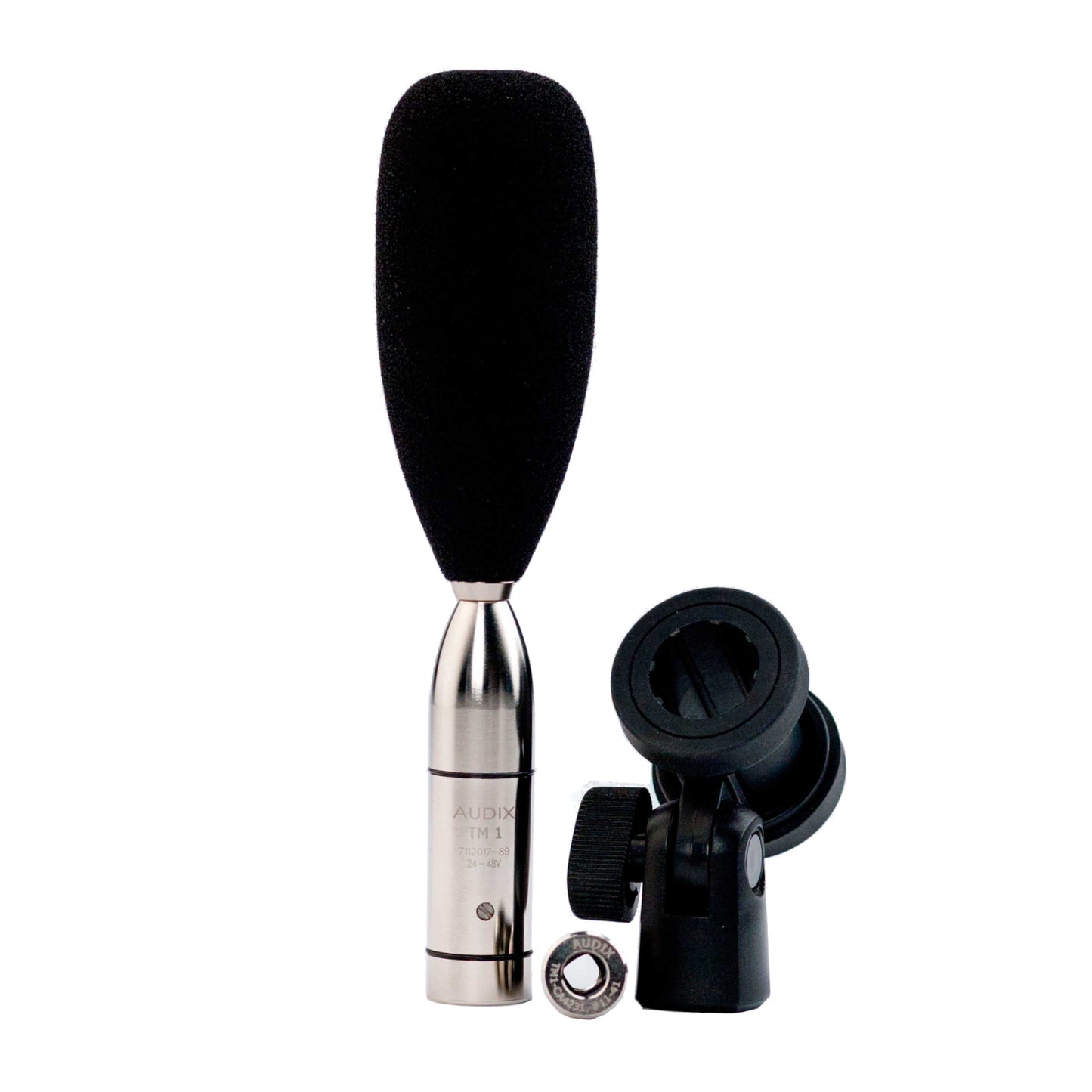

Audix's TM1PLUS includes the TM1 measurement mic, threaded acoustic windscreen, shock mount clip, ½ inch calibrator adaptor and mic calibration data on CD.
The TM1 is a 6 mm pre-polarized condenser microphone used for test and measurement applications, known for its linearity, accurate response and consistency. Equipped with a uniformly controlled omnidirectional polar pattern, the TM1 condenser microphone is designed to capture acoustic measurements for room analysis software programs, real time analyzers and other sound control devices. With a flat frequency range of 20 Hz-20 kHz, the TM1 is an excellent tool for sound engineers, sound companies and recording enthusiasts. Requiring 24-48 V phantom power for operation, the TM1 microphone features a precision machined four stage brass body and capsule housing, nickel plate finish, Switchcraft® or Audix XLR and shock absorbent O-ring.
The data files are a numeric representation of the TM1 frequency response. Use with a variety of popular software measurement systems to correct the response curve of the microphone. The TM1 is great for:
- Test and measurement
- Real time analyzers
- Room analysis software programs
- Ambient room miking
- Transducer TypePre-polarized Condenser
- Frequency Response20 Hz – 20 kHz +/-2 dB
- Polar PatternOmni
- Output Impedance200 ohms
- Sensitivity6 mV / Pa @ 1k
- Equivalent Noise Level28 dB (A weighted)
- Signal to Noise Ratio66 dB
- Maximum SPL130 dB with distortion <1% 140 dB Max
- Power Requirements24 – 48 V Phantom
- Power Consumption8.9 mA @ 48 Volts
- ConnectorSwitchcraft® or Audix mail XLR
- PolarityPositive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
- Materials / Finish4 piece precision machined brass / Nickel Finish
- Weight4.7 oz. (132 g)
- Length5.9 inches (150 mm)
