• Biamp Tesira EX-MOD Modular Expander Device

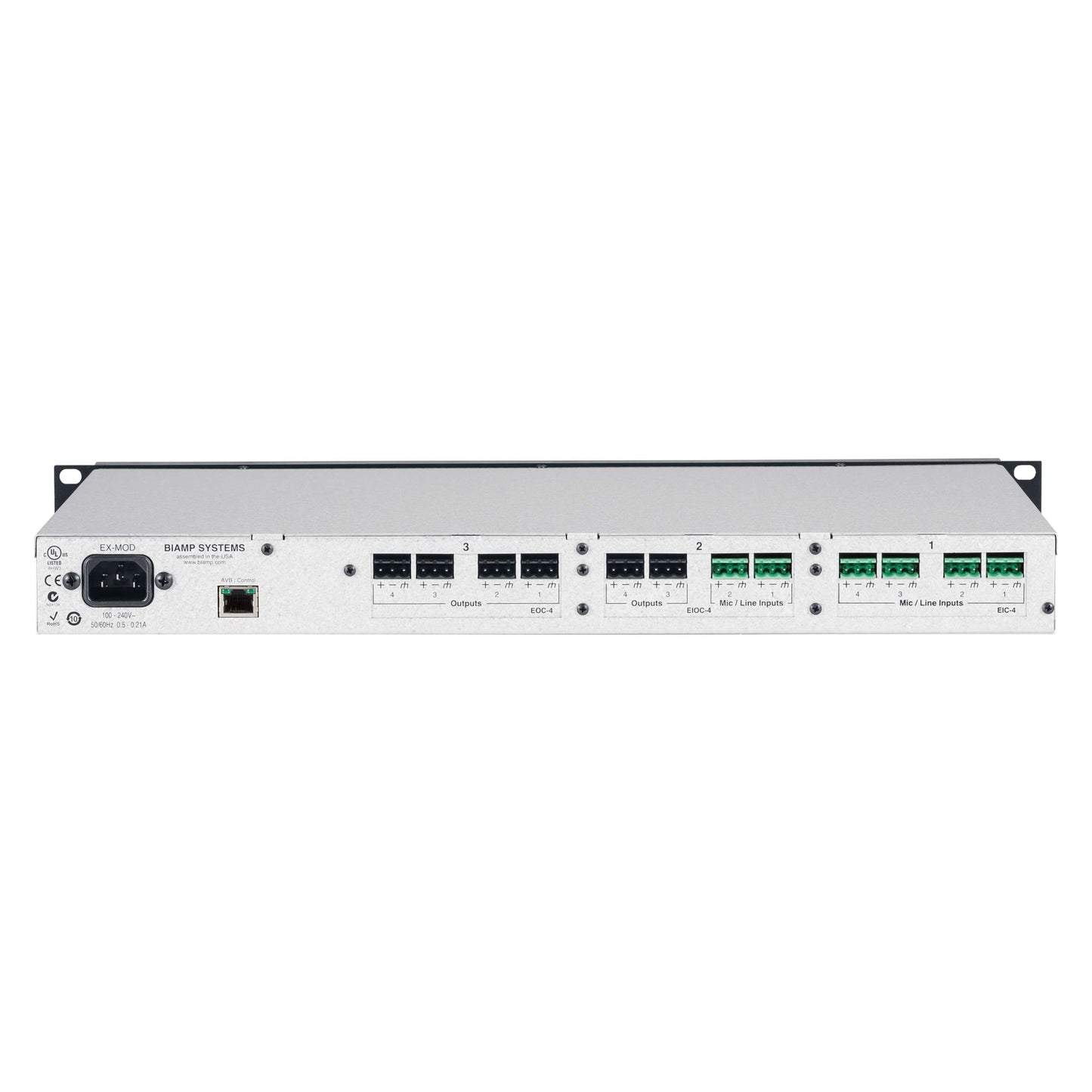

  • Biamp Tesira EX-MOD Modular Expander Device back
1 2

Biamp Tesira EX-MOD Modular Expander Device

Biamp Tesira EX-MOD Modular Expander Device

SoundPro Item: 76493 | Part Number: TESIRA EX-MOD

$2,310.00
$2,310.00 $2,310.00
Your Price Sold out
MSRP: $2,310.00 | MAP: $2,310.00

Usually ships in 5-7 business days

  • Can be configured with up to three I/O cards
  • Up to 12 channels of analog audio
  • AVB/TSN connection to Tesira system for audio networking, configuration and control
  • Plug-in barrier strip connections on cards
  • Front panel LEDs for device status indications
  • Internal universal power supply
  • Rack mountable (1RU)
  • CE marked, UL listed, and RoHS compliant
Log in or register for YOUR best price

The Tesira EX-MOD is a modular expander device that is designed for use with AVB-enabled Tesira server-class devices. It can be configured with up to three 4-channel input and/or output cards for a maximum of 12 channels. The expander communicates with the Tesira AVB network for audio networking, configuration, and control.

View full details
  • Frequency Response(20Hz~20kHz @ +4dBu): +0/-0.25dB
  • THD+N (20Hz~20kHz)
    • @ 0dB Gain, +4dBu In: < 0.006%
    • @ 54dB Gain, -50dBu In: < 0.040%
  • EIN (20Hz~20kHz, 66dB Gain, 150Ω)* < -125dBu
  • Dynamic Range (20Hz~20kHz, 0dB)* > 108dB
  • Tail Length** up to 300ms
  • Convergence** up to 100dB/sec
  • Input Impedance (balanced)* 8kΩ
  • Maximum Input* +24dBu
  • Input Gain Range (6dB Steps) 0 - 66dB
  • Output Impedance (balanced)*** 200Ω
  • Maximum Output*** +24dBu
  • Power Consumption (100~240VAC 50/60Hz)< 40W
  • Phantom Power*
    • +48 VDC
    • (7mA/input)
  • Cross Talk (channel to channel @ 1kHz)*
    • @ 0dB Gain, +4dBu In: < -85dB
    • @ 54dB Gain, -50dBu In: < -75dB
  • Overall Dimensions
    • Height: 1.75 inches (44 mm)
    • Width: 10.5 inches (267 mm)
    • Depth: 19.0 inches (483 mm)
    • Weight: 7 lbs (3.2 kg)
  • Sampling Rate48kHz
  • A/D - D/A Converters24-bit
  • Compliance
    • FCC Part 15B (USA)
    • CE marked (Europe)
    • UL and C-UL listed (USA & Canada)
    • RCM (Australia)
    • EAC (Eurasian Customs Union)
    • RoHS Directive (Europe)
  • Notes
    • * Specification applies to EIC-4, EEC-4, or input channels of EIOC-4
    • ** Specification applies to EEC-4
    • *** Specification applies to EOC-4 or output channels of EIOC-4
