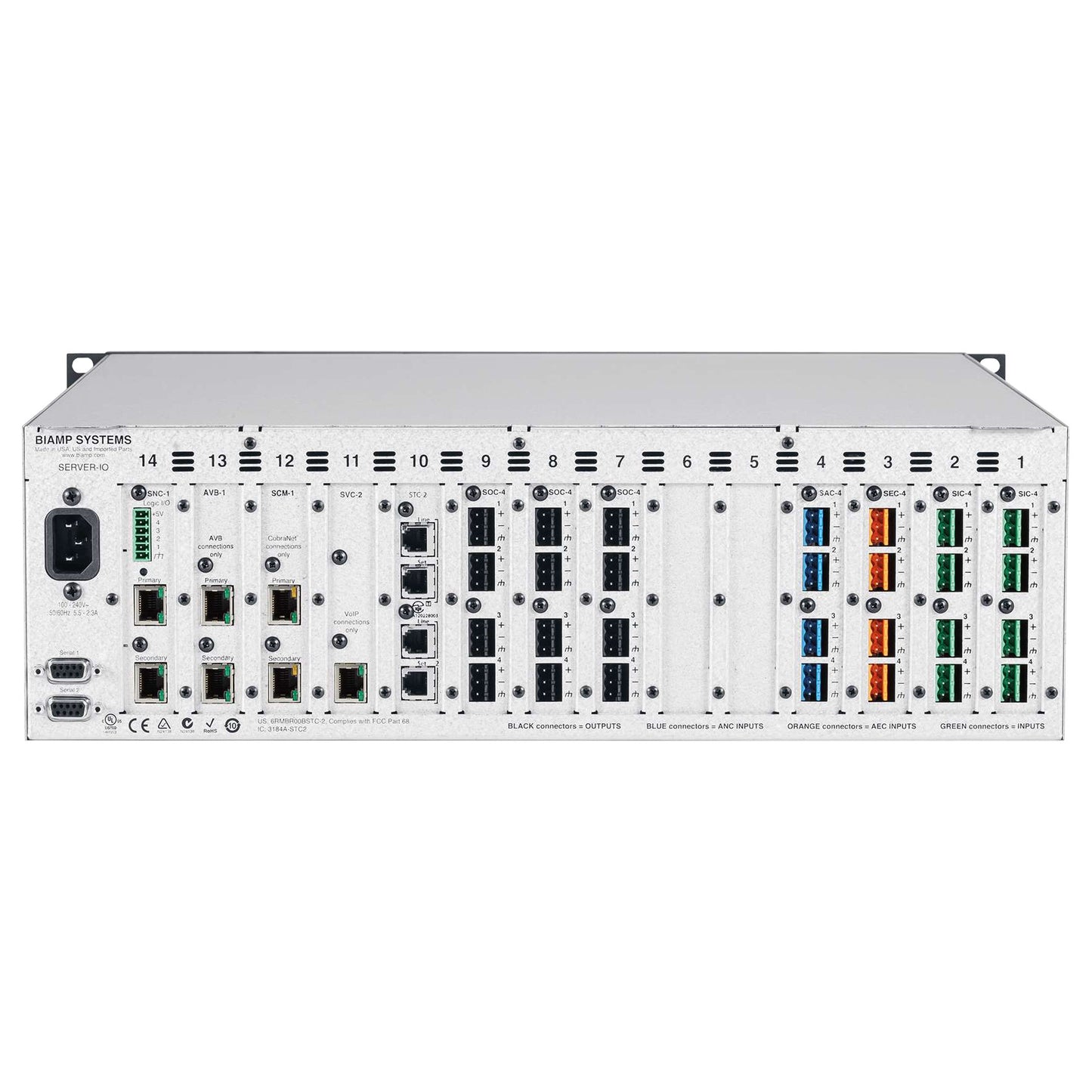

  • Biamp Tesira SERVER-IO back
1 2

Biamp Tesira SERVER-IO Configurable I/O DSP

Biamp Tesira SERVER-IO Configurable I/O DSP

SoundPro Item: 76454 | Part Number: TESIRA SERVER-IO

$8,142.00
$8,142.00 $8,142.00
Your Price Sold out
MSRP: $8,142.00 | MAP: $8,142.00

Usually ships in 5-7 business days

  • Supports up to 3 DSP-2 cards
  • Supports up to 12 I/O cards with a maximum of 48 channels of analog audio
  • Up to 420 x 420 channels of digital I/O over AVB
  • Supports optional 32 x 32 CobraNet audio networking
  • Supports optional 64 x 64 Dante audio networking
  • System configuration and control via Ethernet or serial connection
  • Front panel OLED display for device and system information
  • SpeechSense™ and AmbientSense™ processing algorithms
  • Signal processing via intuitive software allows configuration and control for: signal routing and mixing, equalization, filtering, dynamics, delay and much more
  • Extensive input, output and logic expansion devices supported as part of the Tesira digital audio networking platform
  • Rack mountable (3RU)
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems' five-year warranty
Log in or register for YOUR best price

The Tesira SERVER-IO is a digital network server. It is factory configured with one DSP-2 card and is capable of handling up to two additional DSP-2 cards. The SERVER-IO has capacity for up to three total audio networking cards per server. The combinations of networking cards may include one AVB-1 Audio Video Bridging network cards, up to two SCM-1 CobraNet network cards, and up to two DAN-1 Dante network cards in any configuration. The SERVER-IO can support up to 12 standard Tesira I/O cards for up to 48 channels of audio I/O (e.g. mic and line level, VoIP, and FXO telephone interface). The SERVER-IO can be used as a standalone device or with Tesira expanders to form a highly scalable audio network.

View full details
  • Frequency Response (20Hz~20kHz @ +4dBu)+0/-0.25dB
  • THD+N (20Hz~20kHz)
      @ 0dB Gain, +4dBu In: < 0.006% @ 54dB Gain, -50dBu In: < 0.040%
  • EIN (20Hz~20kHz, 66dB Gain, 150Ω)< -125dBu
  • Dynamic Range (20Hz~20kHz, 0dB)> 108dB
  • Input Impedance (balanced)8kΩ
  • Maximum Input+24dBu
  • Input Gain Range (6dB Steps)0 - 66dB
  • Output Impedance (balanced)200Ω
  • Maximum Output+24dBu
  • Power Consumption (100~240VAC 50/60Hz)< 150W
  • Phantom Power+48 VDC (7mA/input)
  • Cross Talk (channel to channel @ 1kHz)
    • @ 0dB Gain, +4dBu In: < -85dB
    • @ 54dB Gain, -50dBu In: < -75dB
  • Overall Dimensions
    • Height: 5.25 inches (133 mm)
    • Width: 19.0 inches (483 mm)
    • Depth: 17.0 inches (432 mm)
    • Weight: 18 lbs (8.2 kg)
  • Sampling Rate48kHz
  • A/D Converters24-bit
  • Compliance
    • FCC Part 15B (USA)
    • FCC Part 68 (USA)
    • Industry Canada CS-03 (Canada)
    • CE marked (Europe)
    • UL and C-UL listed (USA & Canada)
    • RCM (Australia)
    • EAC (Eurasian Customs Union)
    • RoHS Directive (Europe)
