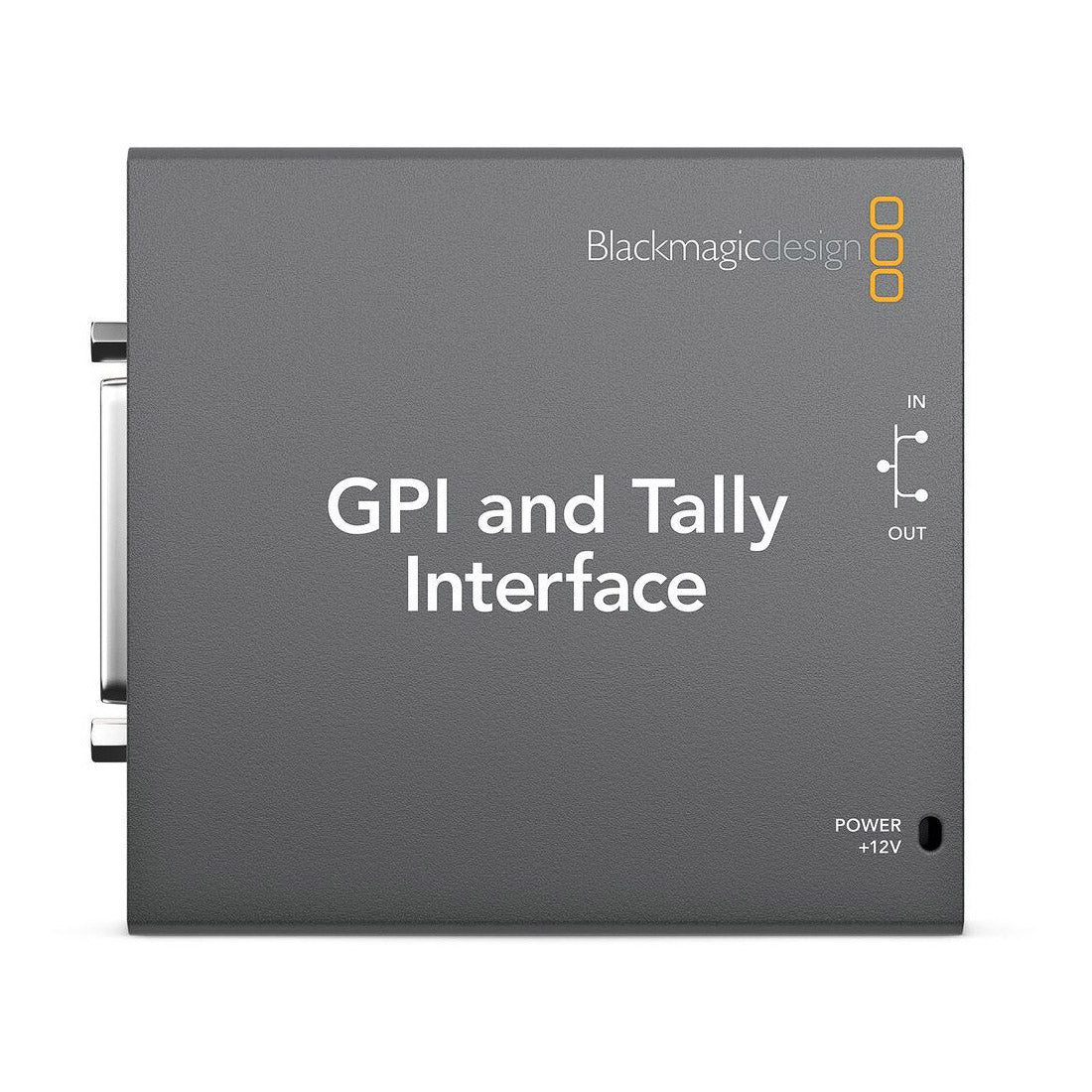

Blackmagic Design GPI & Tally Interface
Blackmagic Design GPI & Tally Interface
SoundPro Item: 24228 | Part Number: BMD-SWTALGPI8
Usually ships in 5-7 business days
- Use to add tally to your ATEM switcher
- 8 contact closure inputs, 8 contact closure outputs
- Can connect multiple interfaces together, and connect via Ethernet to the ATEM switcher
- Can operate as a videohub control panel without buttons and LEDs
Use the GPI and Tally Interface to add tally to your ATEM Switcher. There are 8 contact closure inputs and 8 contact closure outputs to send a tally signal to cameras, replay machines and monitors. For more tally outputs, connect multiple GPI and Tally interfaces together and connect via Ethernet to your ATEM switcher. The GPI and Tally Interface also operates as a videohub control panel without buttons and LEDs.
- Connections
- Contact Closure: 25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs.
- Computer Interface: 1 x USB 2.0 high speed interface for configuration and firmware updates.
- Inputs: Optical isolators triggered by connection to ground. Max 5V at 14mA.
- Outputs: Mechanical relay contact closure to ground. Max 30V at 1A.
- Ethernet: 10/100 BaseT with loop through for connecting to other ethernet enabled equipment.
- Software
- Software Included: Configured via ATEM Switcher Utility.
- Internal Software Upgrade: Firmware built into software driver. Loaded at system startup or via updater software.
- Operating Systems
- Mac 10.14 Mojave,
- Mac 10.15 Catalina or later
- Windows 8.1 and 10
- Power Requirements
- Power Supply: 12V power supply included with international socket adaptors for all countries.
- Environmental Specifications
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20 - 60 degrees celsius
- Relative Humidity: Up to 95%
