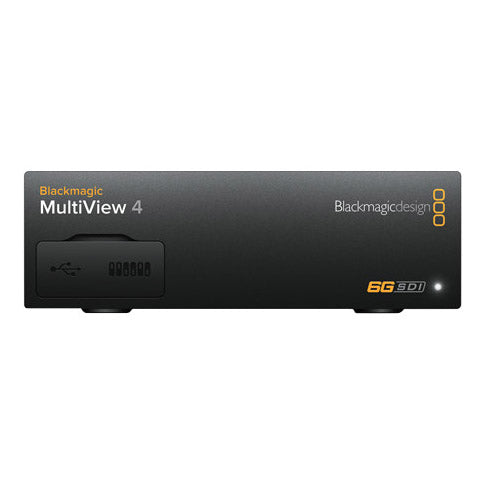

Blackmagic Design MultiView 4
Blackmagic Design MultiView 4
SoundPro Item: 23916 | Part Number: BMD-HDL-MULTIP6G/04
Usually ships in 5-7 business days
- Power supply not included - requires IEC cable
- Monitor multiple SDI sources on an HD or Ultra HD display or TV
- Multi rate SDI connections
- Well-suited for studio or live use
- Full frame re-synchronization
- Custom labels
- Tally
- Audio meters
- Can be daisy chained
- Can be controlled from included software utility on Mac or Windows
- Add Teranex Mini Smart Panel (sold separately) for full front panel control
- Add Teranex Mini Rack Shelf (sold separately) for rack mounting
Monitor completely independent SDI video sources on HD or Ultra HD displays with the Blackmagic MultiView 4. Full frame re-synchronization on every input lets you monitor any SD, HD, and Ultra HD formats and frame rates all at once on one display. Multi view monitoring is a perfect solution in large control rooms, live multi camera production, and when there isn’t room for multiple monitors.
The MultiView 4 has four independent 6G-SDI independent inputs compatible with SD, HD, and Ultra HD formats up to 2160p30. Sources are displayed in a 2x2 grid. Ethernet remote control software gives you the ability to turn on audio meters, select audio to output, and create custom labels.
With MultiView 4, you can see all your video sources without connecting multiple monitors and dozens of cables. Simply plug your cameras, decks, switchers, and routers into the SDI connections.
Get 4 independent monitors in one with full-frame re-synchronization. Every input can take a different video standard and frame rate from referenced or non-referenced NTSC, PAL, 720p, 1080i, 1080p, and Ultra HD up to 2160p30.
The MultiView 4 offers maximum compatibility with your existing equipment. Compatible with HD displays, SDI and HDMI outputs allow you to connect to televisions, video projectors, broadcast monitors, and more. SDI inputs detect and automatically re-sync SD and HD formats.
Advanced monitoring tools such as custom labels, audio meters, and tally indicators can be displayed with your video. Choose which audio source gets routed to the video output. Anamorphic support is provided in standard definition, letting you view 16 x 9 anamorphic video sources in widescreen.
- Connections
- SDI Video Inputs: 4 x 10-bit SD-SDI, HD-SDI and 6G-SDI
- SDI Video Outputs: 4 loop, 1 HD/Ultra HD
- SDI Rates: 270Mb, 1.5G, 3G, 6G
- SDI Video Multi View Outputs: 1 x 10-bit HD-SDI and 10 bit 6G-SDI
- HDMI Video Multi View Outputs: 1 x HDMI type A connector. Output supports EDID of the monitor
- SDI Reclocking: On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video
- Reference Input: None
- Multi Rate Support: Auto detection of SD, HD or 6G-SDI. Simultaneous viewing of 4K, HD and SD video
- Updates: USB 2.0 high speed (480Mb/s) interface or via Ethernet
- Configuration: RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting
- Standards
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- 4K Video Standards: 4K DCI 24p
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601
- Audio Meters: Each view, VU standard
- Source Routing: None
- SDI Video Sampling: 4:2:2 and 4:4:4
- SDI Audio Sampling: Television standard sample rate of 48kHz and 24-bit
- SDI Color Precision: 10-bit 4:2:2 and 4:4:4
- SDI Color Space: YUV or RGB for inputs, YUV for outputs
- SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input so that each input can be running a different television standard
- SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M
- Control
- Built in Control Panel: None. Supports Teranex Mini Smart Panel which adds menus and 2.2 inch color display.
- External Control Panel: None
- DisplayOptional Teranex Mini Smart Panel with 2.2 inch LCD for menu settings
- Software
- Software Control: MultiView software included free for Windows™ and Mac™.
- Internal Software Upgrade: Via included updater application
- Operating Systems
- Mac 10.15 Catalina
- Mac 11.1 Big Sur or later
- Windows 10, 64-bit
- Power Requirements
- Power Supply: IEC power cable required, 100 - 240V AC input
- Power Fail Protection: MultiView 4 settings preserved and restored instantly at power on
- Power over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet)
- Power Consumption: 16 Watts
- Physical Specifications
- Dimensions (H x W x D): 1.75 x 5.51 x 6.69 inches
- Weight: 1.28 lbs
- Environmental Specifications
- Operating temperature: 0° to 40° C (32° to 104° F)
- Storage temperature: -20° to 45° C (-4° to 113° F)
- Relative Humidity: 0% to 90% non-condensing
