Blackmagic Design Studio Camera 4K Plus
Blackmagic Design Studio Camera 4K Plus
SoundPro Item: 121840 | Part Number: BMD-CINSTUDMFT/G24PDD
Usually ships in 5-7 business days
- The ultimate self contained live production camera
- Designed for live production
- Exceptional low light performance
- 4K sensor combined with gen 5 color science provides imaging technology used in digital film cameras
- Large 7" viewfinders
- Physical and touchscreen controls
- Built-in tally for on air status
- Powerful broadcast connections
- Low cost camera control via SDI
- USB expansion port for accessories
- Blackmagic RAW quality
- Built-in microphones
- Monitor program video with PGM button
- Powered by Blackmagic OS
- Supports 3D LUTs for film looks
- Powers from DC or 10G Ethernet
The Studio Camera 4k Plus is the ideal partner to use with an ATEM Mini switcher. Studio Cameras cram tons of professional-caliber features into one compact, easy-to-transport build. This series of cameras from Blackmagic Design offer easy-to-read displays, intuitive controls, and enhanced connectivity to provide flexible and comprehensive tools. Get cinematic-quality video for live production applications ranging from TV and broadcast to educational presentations, conferences, special events, and more!
Capture amazing video no matter the lighting. Studio Cameras boast a 4K sensor that features gain from -12dB (100 ISO) up to +36dB (25,600 ISO) so it's optimized to reduce grain and noise in images while maintaining full dynamic range. The sensor’s resolution of 3840 x 2160 makes it ideal for both HD and Ultra HD projects.
Studio Cameras feature Blackmagic’s 5 color science, delivering the same imaging technology found in digital film cameras. The integrated DaVinci Resolve primary color corrector helps you get better images and can be controlled from a switcher for a more streamlined workflow. Due to its 13 stops of dynamic range, Studio Cameras offer darker blacks and brighter whites, making color correction a breeze. All models support 23.98-60 fps.

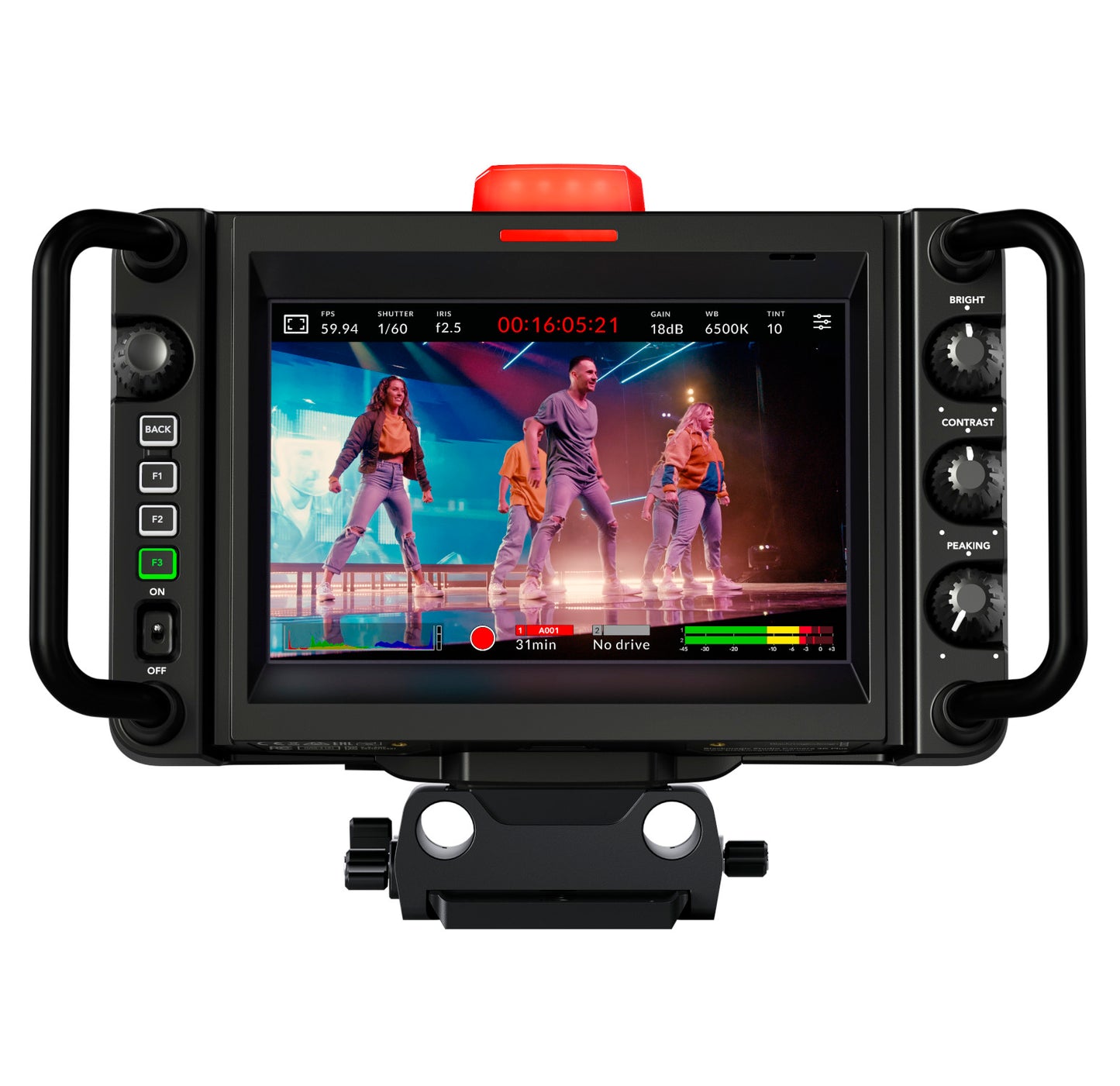

Track and frame your shots fast and with confidence using the Studio Camera’s 7” viewfinder. Onscreen overlays show vital shooting information, while menus for camera settings let you load and customize presets. Apply 3D LUTs for monitoring shots with your desired color and look. Get tactile control with physical buttons and knobs that let you adjust brightness, contrast, focus peaking, and more. Reassign functions to each button to fit your filming style.
Interconnect your consumer and broadcast equipment easily with the Studio Cameras’ HDMI with tally, camera control, and record trigger. Use with a live ATEM mini switcher or record Blackmagic RAW to USB disks. You also get headphone and mic connections, 2 high-speed USB C expansion ports, and built-in microphones for streamlined audio recording. These Studio Cameras utilize advanced Blackmagic OS, a user-friendly camera operating system that uses the most up-to-date technology. All camera features run independently for smoother operation and streamlined control.
- Camera Features
- Effective Sensor Size: 17.78mm x 10mm (Four Thirds)
- Lens Mount: active MFT mount
- Lens Control: iris, focus, zoom on supported lenses
- Dynamic Range: 13 stops
- Dual Native ISO: 0 dB and 18 dB gain
- Sensitivity at 0 dB gain
- f11 with 2160p59.94
- f12 with 2160p50
- at 2,000 lux with 89.9% reflectance
- Signal to Noise Ratio: 63dB for 2160p
- Shooting Resolutions: 3840 x 2160 (Ultra HD) up to 60 fps
- Frame Rates
- 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second
- Off-speed frame rates up to 60 fps in Ultra HD
- Focus: auto focus available using compatible lenses
- Screen Dimensions: 7 inch 1920 x 1200
- Screen Type: LCD capacitive touchscreen
- Screen Brightness: 600 nits
- Controls: Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials
- Mounting Options
- 2 x 1/4" tripod mount
- 1 x 3/8" tripod mount
- Connections
- HDMI 2.0 Video Outputs: 1
- Analog Audio Input: 1 x 3.5mm Stereo Input. Can also be used for Timecode input
- Analog Audio Output: 1 x 3.5mm mini jack for headphones
- Remote Control: remote camera control over HDMI
- Computer Interface: 2 x USB Type-C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB-C Port A
- Microphoneintegrated stereo microphone
- Built-in Speaker1 x mono speaker
- Standards
- SD Video Standards: none
- HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- HDMI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit
- Media2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW
- Media FormatCan format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems
- Supported Codecs
- Blackmagic RAW Constant Bitrate 3:1
- Blackmagic RAW Constant Bitrate 5:1
- Blackmagic RAW Constant Bitrate 8:1
- Blackmagic RAW Constant Bitrate 12:1
- Blackmagic RAW Constant Quality Q0
- Blackmagic RAW Constant Quality Q1
- Blackmagic RAW Constant Quality Q3
- Blackmagic RAW Constant Quality Q5
- Storage Features
- Storage Type: 2 x USB-C 3.1 Gen 1 expansion ports for external media
- Recording Formats: Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate
- Storage Rates (based on 30 frames per second)
- 3840 x 2160 (Ultra HD)
- Blackmagic RAW 3:1 - 127 MB/s
- Blackmagic RAW 5:1 - 77 MB/s
- Blackmagic RAW 8:1 - 48 MB/s
- Blackmagic RAW 12:1 - 32 MB/s
- Blackmagic RAW Q0 - 96 to 190 MB/s
- Blackmagic RAW Q1 - 64 to 153 MB/s
- Blackmagic RAW Q3 - 43 to 109 MB/s
- Blackmagic RAW Q5 - 26 to 64 MB/s
- Constant Quality storage rates quoted are indicative only. Actual storage rates are entirely dependent on image subject matter.
- External ControlBlackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles
- Color CorrectorDaVinci YRGB
- Live Tally Indicator1x front facing for talent, 1x rear facing for operator
- SoftwareBlackmagic Camera Setup for Mac and Windows
- Operating Systems
- Mac 10.15 Catalina
- Mac 11.1 Big Sur or later
- Windows 10, 64-bit
- Power Requirements
- Power Supply: 1 x External 12V DC 60W power supply
- Power Inputs: 1 x 12V DC locking 5.5 mm barrel connector
- Power Usage: 15 - 22 W
- Operating Temperature32°F to 104°F (0°C to 40°C)
- Relative Humidity0% to 90% non-condensing
- Dimensions10.77" x 6.59" x 6.68"
