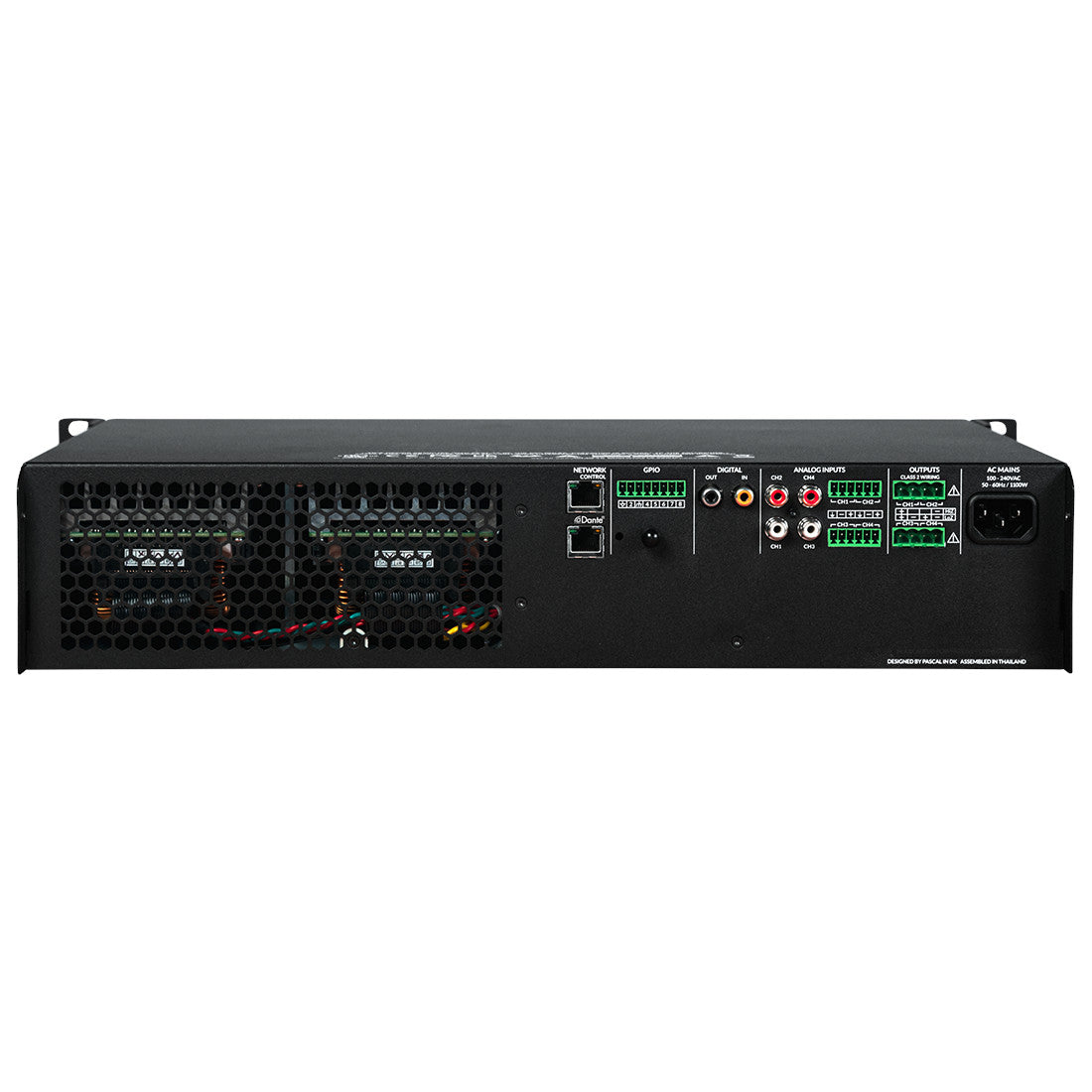

Blaze Audio PowerZone Connect 3004D DSP-Enabled Dante Power Amplifier
Blaze Audio PowerZone Connect 3004D DSP-Enabled Dante Power Amplifier
SoundPro Item: 143422 | Part Number: PowerZone Connect 3004D
Usually ships in 5-7 business days
- Full rack 2U form factor
- Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
- Audinate Dante® AoIP compatibility
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC™ Class-D technology
- UREC™ universal power supply with PFC
- Flexible power sharing across output channels
- S/PDIF input/output
- Configurable GPIO
- ErP and Energy Star compliant
- UL listed audio equipment
- 5 Year warranty
The PowerZone™ Connect 3004D from Blaze Audio is a 3000W DSP-enabled Class-D amplifier with 4 channels and Dante™.
The PowerZone™ Connect 2U series is a line of ultra-reliable, full-matrix DSP-enabled Class-D amplifiers that delivers exceptional system configuration and flexible output, with a total system power ranging from 1000 W to 6000 W. The PowerZone™ Connect 2U series powers both conventional low-impedance (2 Ω to 16 Ω) loudspeakers and constant voltage (70 V/100 V) transformer-coupled loudspeakers, and features proportional distribution in both Lo-Z and Hi-Z modes. Specific models of the PowerZone™ Connect 2U amplifiers offer compatibility with Audinate Dante™ AoIP networks and installations.
The intuitive PowerZone™ Control web app is built into all our PowerZone™ Connect amplifiers for easy system setup. PowerZone™ Control facilitates effortless customization of even the most challenging audio/voice systems by delivering many DSP configuration options and tuning features, including multizone setup, input mixing, priority and ducking, restriction, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, Wall-S1 controller configuration, Sine generator, and much more.
- Output Power @ 2Ω4 x 750W (SE)*
- Output Power @ 4Ω4 x 750W (SE) 2 x 1500W (BTL)**
- Output Power @ 8Ω4 x 400W (SE) 2 x 1500W (BTL)
- Output Power @ 70V 2 x 1200W (BTL)
- Output Power @ 100V 2 x 1500W (BTL)
- Total System Power 3000W
- Power Consumption 700W
- Dimensions3.5x17.3x13.1" (88x440x332mm)
- Weight 7.4 kg
