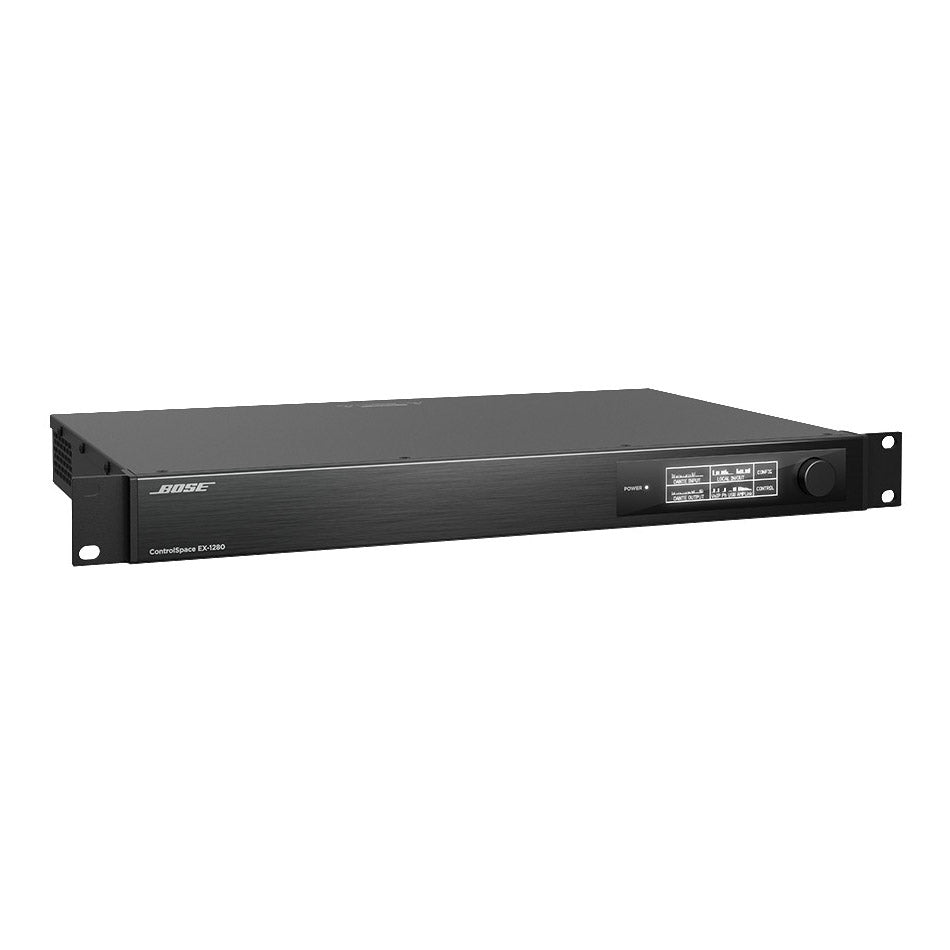

Bose ControlSpace EX-1280 Digital Signal Processor

Bose ControlSpace EX-1280 Digital Signal Processor

SoundPro Item: 107100 | Part Number: 834317-1110

$2,999.00
$3,699.00 $2,999.00
Your Price Sold out
MSRP: $3,699.00 | MAP: $2,999.00

Usually ships in 5-7 business days

  • Open architecture
  • USB connection facilitates easy integration with PC audio sources
  • Dante audio networking supports 64x64 audio channels
  • Bose AmpLink output provides 8 channels of uncompressed, low-latency digital audio to AmpLink-equipped Bose amplifiers
  • Front panel interface with large OLED display and rotary encoder
  • GPIO and Serial for interfacing with external devices and control systems
  • 1RU design ideal for general purpose and PA applications
Log in or register for YOUR best price

With an open-architecture, single-rack-unit design, the ControlSpace EX-1280 is a robust digital signal processor equipped for general-purpose audio processing applications. Twelve mic/line analog inputs, eight analog outputs, a Bose AmpLink output, and 64 x 64 Dante® connectivity allow for flexible configuration and high-quality sound system control. ControlSpace Designer software simplifies the setup process with drag-and-drop programming, making configuration quick and easy.

View full details
  • Integrated DSP
    • Signal Processor: 32-bit fixed/floating-point DSP 456 MHz/Arm Cortex-A8 600 MHz
    • Max. Calculation: 3.6 GIPS / 2.7 GFLOPS
    • Delay: 43 s
    • Audio Latency: 1.05 ms (analog in to analog out)
    • A/D & D/A Converters: 24-bit
    • Sample Rate: 48kHz
  • Analog Audio Inputs
    • Input Channels: 12 balanced, mic/line level
    • Input Connectors: 3.81 mm, 6-pin Euroblock
    • Input Impedance: 12kΩ at 1kHz (with or without phantom power active)
    • Max. Input Level: +24 dBu
    • Equivalent Input Noise: -118dB at 44dB gain setting
    • Phantom Power: +48 VDC, 10mA, selectable per input
    • Gain Settings: 0/+14/+24/+32/+44/+54/+64 dB
  • Analog Audio Outputs
    • Output Channels: 8 balanced, line-level
    • Output Connectors: 3.81 mm, 6-pin Euroblock
    • Output Impedance: 200Ω
    • Max. Output Level: +24dBu
  • Audio Performance
    • Frequency Response: 20Hz to 20kHz (+0.5dB/-0.5dB)
    • THD+N: 0.01% at +4 dBu (A-weighted, 20 Hz to 20 kHz)
    • Channel Separation (crosstalk): <-105dB at +4dBu input & output level, 1kHz
    • Dynamic Range: > 115dB, A-weighted, 20 Hz to 20 kHz, analog input to analog output
  • Audio Over IP, Dante64x64, primary/secondary
  • Digital Audio Outputs (AmpLink, output only)8 ultra-low latency (< 21 μs), 48 kHz; requires shielded Cat 5 cable
  • Communication Ports
    • USB Device: Micro-B type, stereo in/out, HID support
    • USB Host: Type A; for future use
  • Control Inputs
    • Inputs & Connectors: 5 analog or digital inputs, 2 kΩ internal pull-up resistor to 5 V, 3.81 mm, 6-pin Euroblock
    • Voltage Range
      • Analog Inputs: 0 V to 3.3 V (maximum: 5 V)
      • Digital Inputs: 0 V to 3.3 V (threshold voltage: 1.6 V)
  • Control Outputs
    • Outputs & Connectors: 5 digital outputs, 3.81 mm, 6-pin Euroblock
    • Output Voltage
      • High: 8 V (open circuit), 2.5 V at 10 mA
      • Low: < 1 V at 100 mA, push-pull
  • Indicators & Controls
    • Display: 256x64 OLED with rotary/push encoder
    • LED Status Indicators: Power/Status
    • Audio Signal Indication: on display
  • Electrical
    • Mains Voltage: 100VAC to 240VAC, 50/60Hz
    • AC Power Consumption: 35W typical at 104°F (40°C) ambient
    • Mains Connector: IEC 60320-C14 (inlet)
    • Power Dissipation: 60W (205 BTU, 52 kcal)
  • PC Configuration SoftwareControlSpace Designer
  • Network ControlEthernet (RJ-45), 1 Gbps
  • RS-232/485 PortsRS-232 (DTE) & Bose CC-16 (RS-485 master); 3.81 mm, 3-pin Euroblock
  • Cooling System2 variable-speed fans, side venting
  • Operating Temperature32°F to 104°F (0°C to 40°C)
  • Dimensions (HxWxD)1.7" x 19" x 11.1"
  • Weight7.1 pounds
