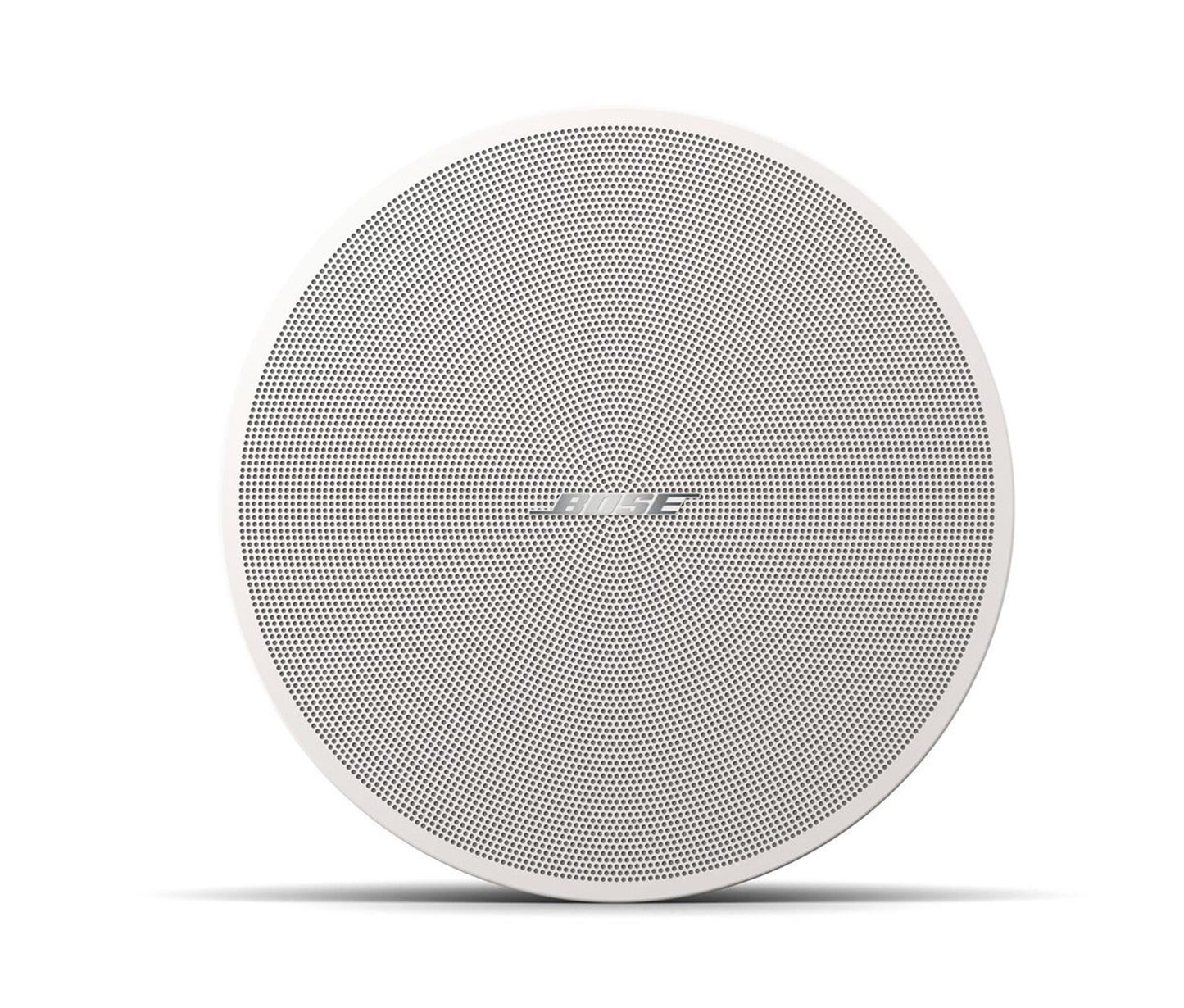

Bose DM3C DesignMax Loudspeakers | Color: White

Bose DM3C DesignMax Loudspeakers | Color: White

SoundPro Item: 147733

$349.00
$399.00 $349.00
Your Price Sold out
MSRP: $399.00 | MAP: $349.00

In stock and ready to ship

  • Combine DesignMax models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
  • Deliver clear highs and surprising low-end for their size with coaxial two-way drivers - no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
  • Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
  • Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
  • Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
  • Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Log in or register for YOUR best price

With coaxial two-way drivers, the 30-watt Bose Professional DesignMax DM3C loudspeaker offers clear, intelligible highs and surprising low end for their size - along with premium aesthetics that complement any commercial sound installation. The DM3C features a two-way 3.5-inch woofer and 0.75-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz - 20 kHz. The DM3C is ceiling-mounted, installed easily via QuickHold mounting arms.

View full details
  • Enclosure MaterialEngineered-plastics front baffle with integrated steel-formed backcan
  • EnvironmentalIndoor only
  • GrilleMagnetically attached perforated steel, powder-coated finish, paintable, with safety tether
  • Ceiling Cutout8.2 in (208 mm)
  • LogoRotatable, removable
  • Suspension/Mounting(3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points
  • Operating Temperature Range0 °C to 50 °C (32 °F to 122 °F)
  • Product Dimensions (HxWxD)10.0 in x 6.0 in (255 mm x 154 mm), loudspeaker diameter x depth / 8.0 in x 5.7 in (203 mm x 144 mm), backcan diameter x depth
  • Net Weight5.9 lb (2.7 kg), loudspeaker with grille (single) / 1.7 lb (0.8 kg), tile bridge (single)
  • Shipping Weight19.2 lb (8.7 kg), pair
  • Frequency Range (-10 dB)75 Hz - 20,000 Hz
  • Coverage, Horizontal135° conical
  • Calculated Maximum SPL @ 1 m98 dB
  • Nominal Impedance8 Ω (transformer bypass)
  • Power Handling, long-term continuous30 W
  • Power Handling, Peak120 W
  • Recommended Signal ProcessingNot required, Bose Professional EQ voicing and SmartBass processing available
  • Sensitivity (SPL/1 W at 1 m)83 dB
  • Transformer Taps, 100V6, 12, 25 W, bypass
  • Transformer Taps, 70V3 W, 6 W, 12 W, 25 W, bypass
  • Coverage, Vertical135° conical
  • Crossover1.7 kHz, passive 2-way crossover
  • Driver ProtectionRecommended high-pass protection 80 Hz with recommended 24 dB/octave filter
  • High-Frequency1 x 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted
  • Low-Frequency1 x 3.25 in (83 mm) woofer
