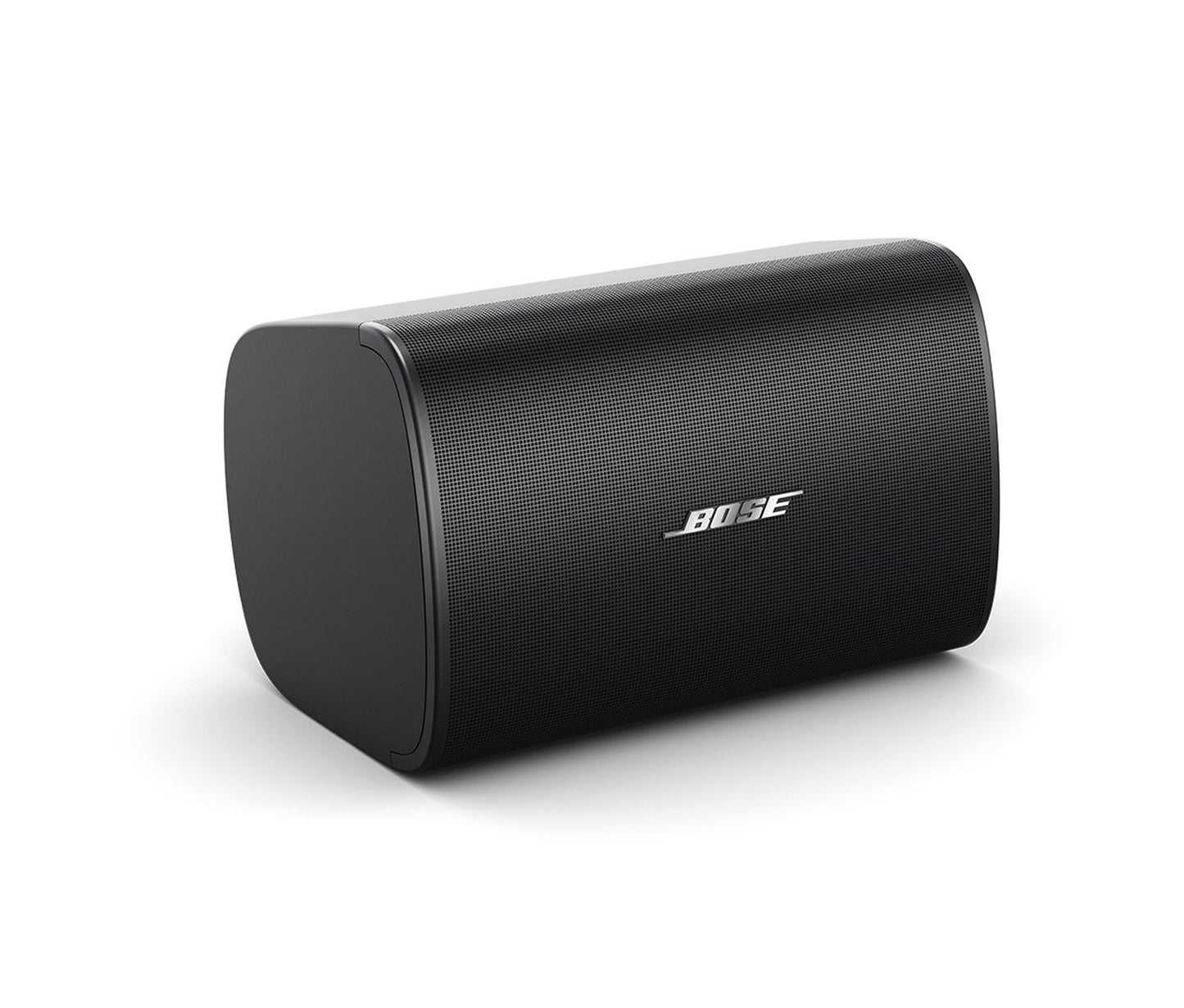

Bose DM6SE DesignMax Surface Mount Loudspeakers | Color: Black

Bose DM6SE DesignMax Surface Mount Loudspeakers | Color: Black

SoundPro Item: 147748

$749.00
$949.00 $749.00
Your Price Sold out
MSRP: $949.00 | MAP: $749.00

In stock and ready to ship

  • Combine DesignMax models to complete any design, big or small - 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
  • Deliver rich lows and clear, intelligible highs with coaxial two-way drivers - no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
  • Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter
  • Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
  • Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
  • Install easily with industry-standard accessories - all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
  • Install DM6SE outside - IP55 rating with standard aluminum grille for outdoor use
Log in or register for YOUR best price

With coaxial two-way drivers, the 125-watt Bose Professional DesignMax DM6SE loudspeaker offers rich lows and clear, intelligible highs - along with premium aesthetics that complement any commercial sound installation. The DM6SE features a 6.5-inch woofer and a 1.25-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 59 Hz - 20 kHz. The DM6SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.

View full details
  • Enclosure MaterialEngineered plastics, highly UV fade-resistant
  • EnvironmentalOutdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover
  • GrillePerforated aluminum, powder-coated finish, tamper-resistant design, paintable
  • Ingress ProtectionIP55
  • LogoRotatable, removable
  • Operating Temperature Range-25 °C to 70 °C (-13 °F to 158 °F)
  • Product Dimensions (HxWxD)13.4 in x 8.7 in x 9.0 in (340 mm x 222 mm x 229 mm), loudspeaker / 13.4 in x 8.7 in x 9.7 in (340 mm x 222 mm x 245 mm), loudspeaker with bracket
  • Net Weight13.1 lb (5.9 kg), loudspeaker with grille (single)
  • Shipping Weight32.5 lb (14.7 kg), pair
  • Frequency Range (-10 dB)59 Hz - 20,000 Hz
  • Coverage, Horizontal125° conical
  • Calculated Maximum SPL @ 1 m111 dB
  • Nominal Impedance8 Ω (transformer bypass)
  • Power Handling, long-term continuous125 W
  • Power Handling, Peak500 W
  • Recommended Signal ProcessingNot required, Bose Professional EQ voicing and SmartBass processing available
  • Sensitivity (SPL/1 W at 1 m)90 dB
  • Transformer Taps, 100V5, 10, 20, 40, 80 W, bypass
  • Transformer Taps, 70V2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
  • Coverage, Vertical125° conical
  • Crossover1.7 kHz, passive 2-way crossover
  • Driver ProtectionRecommended high-pass protection 60 Hz with recommended 24 dB/octave filter
  • High-Frequency1 x 1.25 in (32 mm) neodymium dome tweeter, coaxially mounted, weather-treated
  • Low-Frequency1 x 6.5 in (165 mm) woofer, weather-treated
