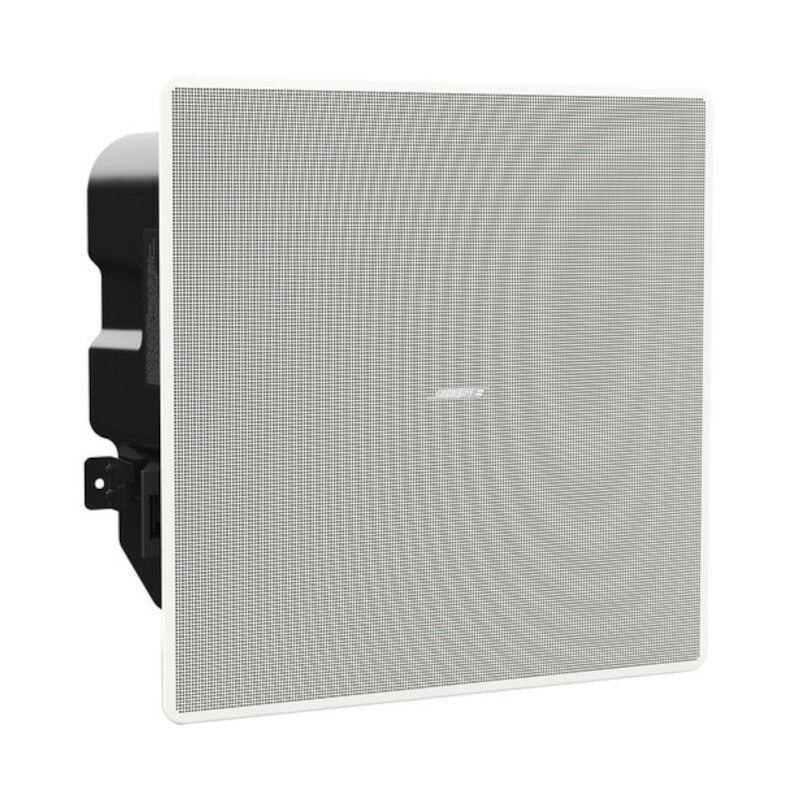

Bose EdgeMax EM180 Ceiling Speaker
Bose EdgeMax EM180 Ceiling Speaker
SoundPro Item: 106878 | Part Number: 777189-0220
In stock and ready to ship
- PhaseGuide technology – provides unique asymmetrical vertical pattern for room-filling coverage when mounting near wall-ceiling boundary
- Provides improved room visual appearance – for demanding interior designs by eliminating center-of-ceiling or wall-mounted loudspeakers
- Nominal 90° horizontal coverage – designed for in-ceiling mounting near room corners
- High-frequency compression driver – for best-in-class audio quality with superior frequency response and coverage consistency versus typical dome tweeters
- 8-inch woofer – with wall-boundary loading provides extended bass impact
- 2-way passive crossover with 70/100V transformer
- New auto-hold, spring-loaded mounting arms – for fast, easy installs
- Magnetically attached grill – for quick access to wiring and tap settings
- UL1480A listing – for air-handling (plenum) space installation
The EdgeMax EM180 Ceiling Speaker features Bose PhaseGuide technology with high-frequency compression drivers to create a new category that combines the room-filling coverage patterns with the aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries, EdgeMax loudspeakers provide improved audio quality and coverage, while reducing the number of required units, compared to conventional dome-tweeter ceiling speakers.
Applications include:
- Retail stores
- Restaurants and bars
- Concourse
- Transportation facilities
- Resorts and hospitality venues
- Houses of worship
- Conferencing
- Frequency Response (+/-3 dB)50 Hz - 18 kHz
- Frequency Range (-10 dB)45 Hz - 20 kHz
- Nominal Dispersion
- 75° Vertical
- 180° Horizontal
- Long-Term Power Handling125 W (500 W peak)
- Sensitivity (SPL / 1 W @ 1 m)93 dB SPL
- Maximum SPL @ 1 m114 dB SPL (120 dB SPL peak)
- Transducers
- 1 x 8-inch woofer
- 1 x compression driver
- Nominal Impedance8 Ω (transformer bypassed)
