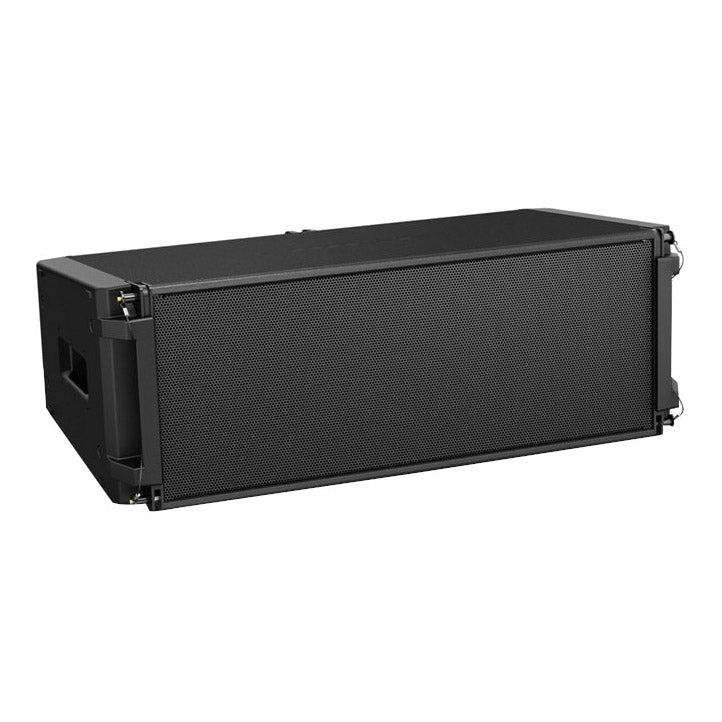

Bose ShowMatch SM20 DeltaQ Array Speaker
Bose ShowMatch SM20 DeltaQ Array Speaker
SoundPro Item: 107007 | Part Number: 730999-8860
Usually ships in 5-7 business days
- DeltaQ technology
- Changeable waveguides (70°and 100°waveguides included, optional 120°waveguides sold separately)
- Compact, portable enclosure
- Tour-sound output level
- 3-point “quick pin” rigging for fast and easy setup
- Removable side rigging -guard/handles
Bose Professional ShowMatch DeltaQ SM20 full-range array modules provide 20° nominal vertical coverage with included field-changeable waveguides offering choice of 70° or 100° horizontal coverage and optional accessory 120° waveguides. Replace single waveguide panel to form horizontal asymmetrical patterns. The 2-way module requires external power amplifiers (2- channels) and DSP to provide full-range response from 59 – 18,000 Hz with peak array output of up to 145 dB.
DeltaQ technology is the next-generation array design that allows “Q” (directivity) to vary with each module in the array for more consistent coverage over wide frequency range, reduced array weight and cost, and outstanding vocal clarity. Arrays can cover large vertical angles with fewer boxes.
Applications
- Theaters
- Houses of worship
- Auditoriums
- Performing arts venues
- Arenas
- Frequency Response (-3 dB)69 Hz - 16,000 Hz
- Frequency Range (-10 dB)59 Hz - 18,000 Hz
- Nominal Coverage Pattern (HxV)100° x 20° or 70° x 20°
- Long-Term Power Handling
- Low Frequency: 450W (1800W peak)
- High Frequency: 100W (400W peak)
- Nominal Impedance
- Low Frequency: 8 Ω
- High Frequency: 6 Ω
- Sensitivity (SPL / 1W @ 1m)
- Low Frequency: 94 dB
- High Frequency: 106 dB
- Max SPL @ 1m
- Low Frequency: 121 dB (127 dB peak)
- High Frequency: 125 dB (131 dB peak)
- Enclosure MaterialBaltic birch plywood with 2-part spray polyurethane coating
- Grill16-gauge perforated steel with powder-coated finish
- EnvironmentalIPx4
- Connectors2 x Neutrik NL4 wired parallel
- Suspension / Mountingintegrated 3-point quick-pin rigging
- Dimensions (HxWxD)11.9" x 31.2" x 18.1"
- Weight64 pounds (29 kg)
