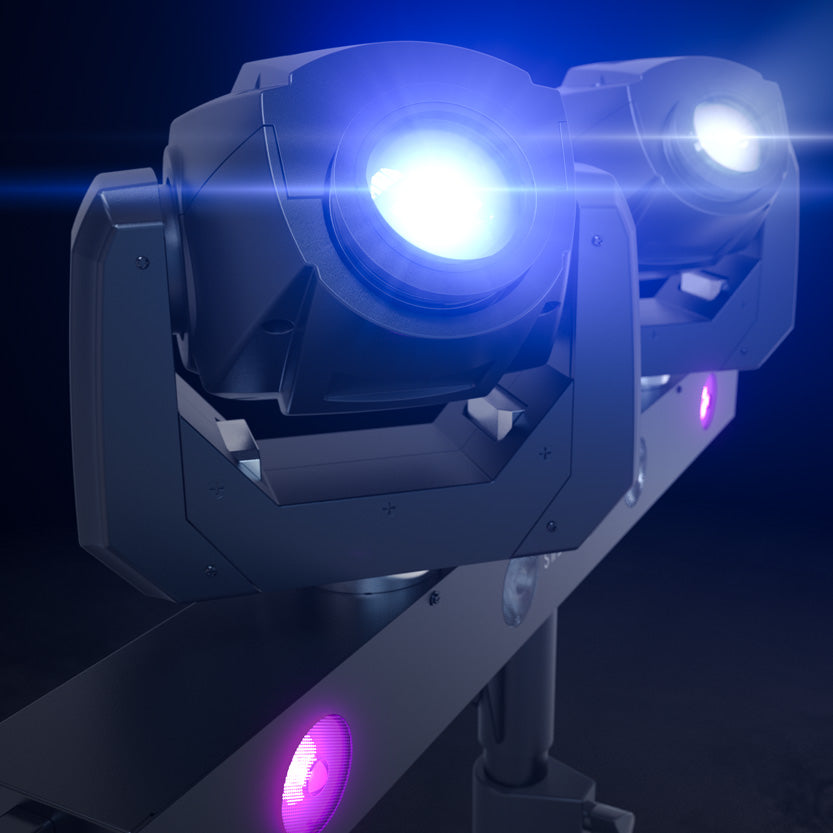

  • Chauvet DJ GigBAR Bridge ILS 2-in-1 Lighting System lifestyle 2
1 6

Chauvet DJ GigBAR Bridge ILS 2-in-1 Lighting System

Chauvet DJ GigBAR Bridge ILS 2-in-1 Lighting System

SoundPro Item: 145732 | Part Number: GIGBARBRIDGEILS

$1,069.99
$1,426.67 $1,069.99
Your Price Sold out
MSRP: $1,426.67 | MAP: $1,069.99

Usually ships in 5-7 business days

  • 2-in-1 lighting system that includes moving heads and washes pre-mounted on a single bar
  • Quickly and securely connect multiple fixtures with the built-in locking system
  • Built-in DFI transceiver communicates DMX or ILS signals wirelessly
  • Safely mounts onto truss or mobile tripods using the removable bracket
  • Easy navigation and access all functions directly from the full-color LCD display
  • Powerful moving heads with separate color and gobo wheels allow for creative programming
  • Totem Mode keeps the moving heads focused on the dance floor
  • Save time running cables and extension cords by power linking multiple units
  • ILS compatibility for use in the ILS ecosystem
Log in or register for YOUR best price

Enjoy a customizable party lighting setup that suits your needs with the connectable GigBAR Bridge ILS. This 2-in-1 lighting system has a minimal setup time thanks to its moving heads and wash lights that come pre-mounted onto a single bar. ILS compatibility makes creating coordinated light shows with this unit and different fixture types easy as 1, 2, 3. Create dynamic dancefloor moments with just one system.

View full details
  • DMX Channels3, 16 or 46
  • DMX Connectors3-pin XLRv
  • Strobe Rate0 to 20Hz
  • Operating Frequency2.4 GHZ
  • Power Linking8 units @ 120 V; 13 units @ 230 V
  • Input Voltage100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Weight18.6 lbs (8.4 kg)
  • Size26 x 2.8 x 12 in (660 x 71 x 305 mm)
  • ApprovalsCE, RoHS , FCC
  • Colors (moving head) 9 + open, split colors, continuous scroll at variable speeds
  • Gobos (moving head) 9 + open, continuous scroll at variable speeds
  • Light Source (moving head) 1 LED (cool white) 70W (3A), 50,000 hours life expectancy
  • Light Source (wash) 4 LEDs (hex-color RGBAW + UV) 10W (1.3 A), 50,000 hours life expectancy
  • Light Source (wash) 4 LEDs (hex-color RGBAW + UV) 10W (1.3 A), 50,000 hours life expectancy
  • Beam Angle (wash) Field Angle (wash) 22°
  • Field Angle (wash) 38°
  • Power and Current 191 W, 1.5 A @ 120 VAC, 60Hz: 191 W, 1.5 A @ 120 VAC, 60Hz
  • Power and Current 175 W, 1 A @ 230 VAC, 50Hz
  • Fits Tripod Sizes 1.5 in (37.4 mm)
  • Max Unobstructed Distance (D-Fi) 600 ft (183 m)
  • Optional Controllers RF, Footswitch, ILS Command
