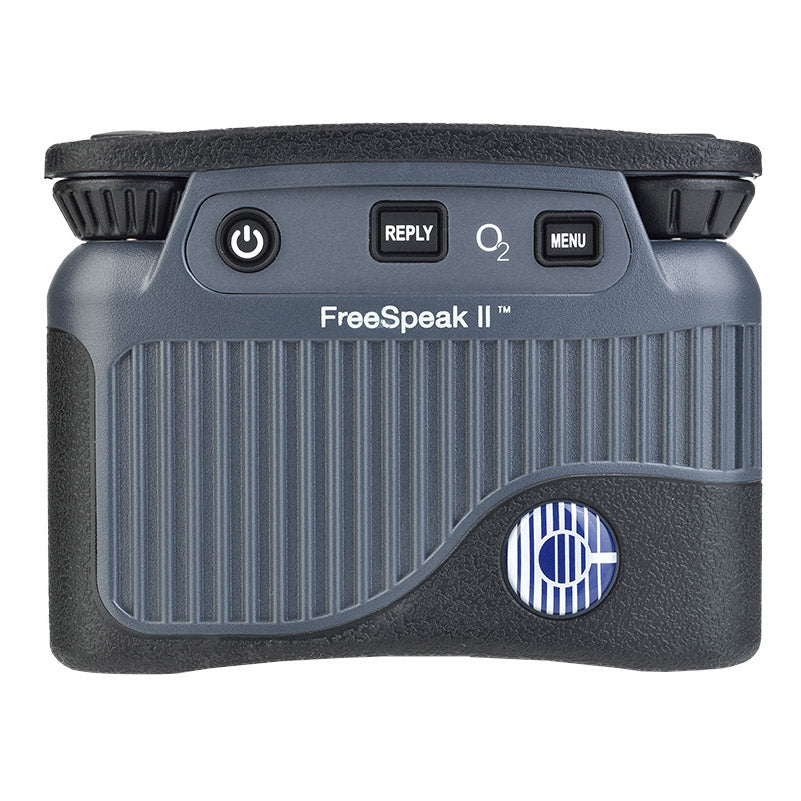

Clear-Com FSII-BP19-O2 FreeSpeak II 1.9GHz Wireless Beltpack
Clear-Com FSII-BP19-O2 FreeSpeak II 1.9GHz Wireless Beltpack
SoundPro Item: 31821 | Part Number: FSII-BP19-X4-O2-US
Usually ships in 5-7 business days
- Functions with FSII base, FreeSpeak Edge base, Arcadia Central Station, E-IPA-HX card, and FSII splitter hardware
- Designed to work at atmospheric pressure up to 75 psi
- Typical indoor range: 300 ft (90 m), outdoor range: 800 ft (240 m)
- 1.9 and 2.4 GHz beltpacks operate on a single system
- Up to 65 – 90 beltpacks on a single system
- Encoder Volume Swap between A&C and B&D
- “Listen Again” message replay
- Simple 2-channel partyline operation to 5-channel intercom on the same beltpack
- Over-the-air beltpack registration
- XLR-4M headset connector
- IP53 rating for wet and dusty conditions
- Built-in flashlight
- Uses AA alkaline or rechargeable Nickel Metal Hydride batteries
The FSII O2 1.9 GHz beltpack is specifically designed to work in Hyperbaric chambers safely, operating at atmospheric pressures of 5.1 atm, 517 kPa, or 75 psi with a change of +/- 26 psi per minute without damage.
- Audio
- Audio Bandwidth: 200Hz-7.5KHz
- No. of Full-Duplex Audio Paths: Up to 5 with individual level control (2 dedicated rotaries, 3 with menu), 2 controls and a main volume
- Mode of Operation: Full duplex on all routes
- Level/Talk Controls: 4 pushbuttons, a reply button and 2 rotary controls
- Enter/Answer-Back Button: 1
- Frequency Spectrum
- USA, Canada, Mexico: 1920-1930 MHz (5 Channels)
- Transceiver Range Output Power: 100mW
- EU, Russia, Singapore, Hong Kong, Australia, New Zealand, South Africa: 1880-1900 MHz (5 Channels)
- Transceiver Range Output Power: 250mW
- Japan: 1893-1906 MHz (2 Channels)
- Transceiver Range Output Power: 250mW
- Argentina, Bahamas: 1910 MHz-1930 MHz (10 Channels)
- Transceiver Range Output Power: 250mW
- Brazil: 1910 MHz-1930 MHz (5 Channels)
- Transceiver Range Output Power: 250mW
- Chile: 1910 MHz-1930 MHz (5 Channels)
- Transceiver Range Output Power: 70mW
- Taiwan: 1880–1895 MHz (8 Channels)
- Transceiver Range Output Power: 250mW
- Connectors
- Headset Connector: 4-pin male
- Microphone Type: Electret and Dynamic, selectable in beltpack menu
- Headset Limiter: Selectable from beltpack menu
- Power
- Modulation: GFSK, TDMA frame 10ms Full and Long slot
- Output power: (EU/Russia) 10dBm average, (US) 18-20dBm
- Range: Typical indoor range 300ft (90m), outdoor range 800ft (240m)
- Battery: 3 AA alkaline or Nickel Metal Hydride
- Battery Life: 9+ hours
- Environmental
- IP53 water and dust resistance
- Operating: 32º-125ºF (0º-50ºC)
- Storage: 32º-150ºF (0º-70ºC)
- Humidity: Between 20% and 90%, Non-Condensing
- Atmospheric pressures of 5.1 atm or 75 psi
- Dimensions (HxWxD)3.75x5x1.5" (97x130x45mm); Tapered design at largest points
- Weight9.0 oz (0.25 kg) including batteries
