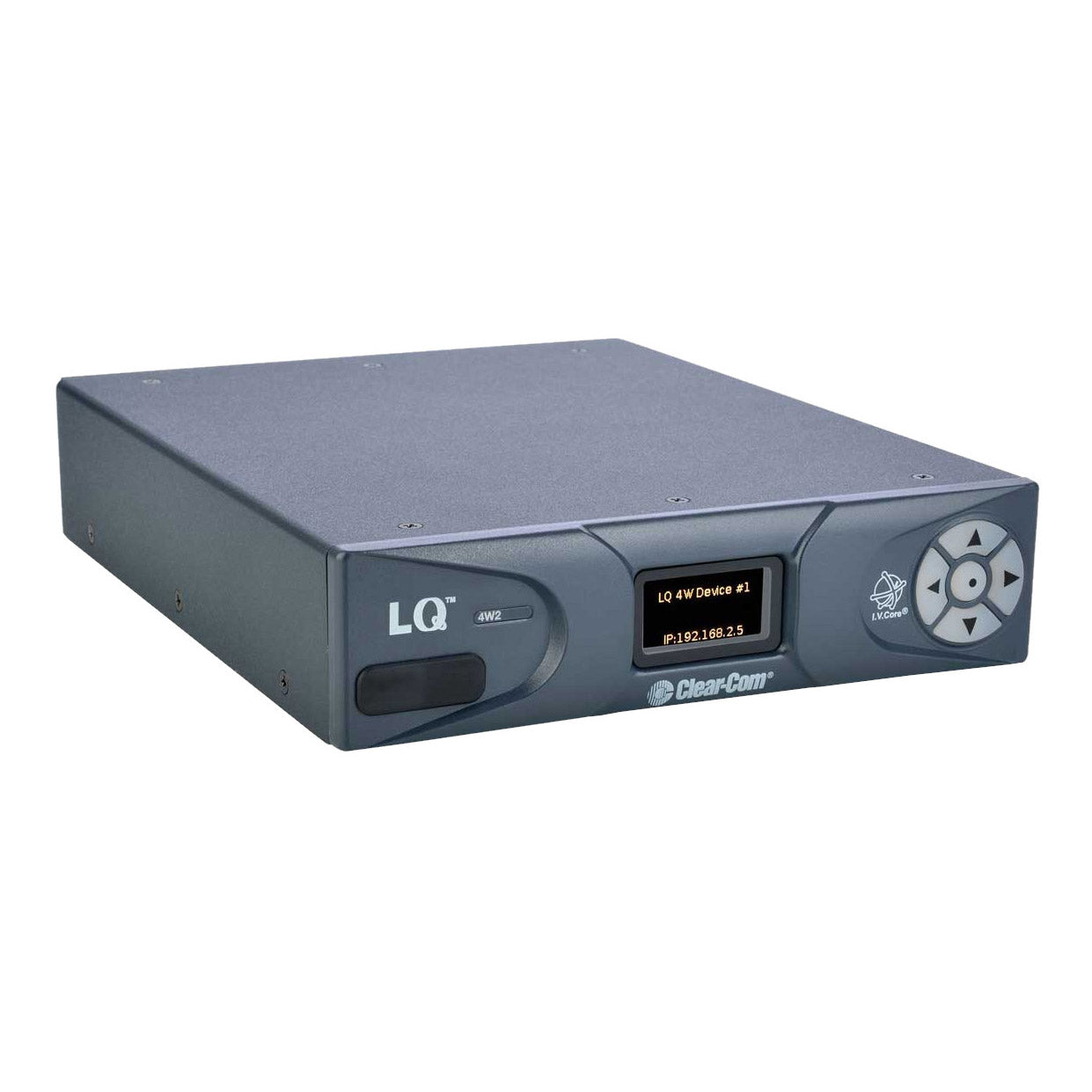

Clear-Com LQ-4W2 IP Interface

Clear-Com LQ-4W2 IP Interface

SoundPro Item: 31756 | Part Number: LQ-4W2

$2,985.00
$2,985.00 $2,985.00
Your Price Sold out
MSRP: $2,985.00 | MAP: $2,985.00

Usually ships in 5-7 business days

  • 2-Port Portable Unit for 4-wire Interfacing
  • Intercom-over-IP: routing intercom and audio signals over IP networks
  • Connect up to 6 LQ devices together over LAN, WAN, Internet
  • Remotely connect up to 8 IVC-32-HX or E-IPA-HX ports per LQ device
  • Supports up to 8 Agent-IC clients per LQ device (license required)
  • Supports up to 8 SIP client connections per LQ device (license required)
  • Connects to HelixNet via HLI-ET2 over LAN or WAN
  • Add up to 24 ports of audio I/O per HelixNet Main Station by connecting to LQ Series
  • 4-wire ports support data and audio for Clear-Com Eclipse and Drake 4000 panels
  • Adjustable bandwidth on a per port basis
  • Connectors: 2 x EtherCON (female): 2 x Network; 2 x EtherCON (female): 2 x Audio I/O
  • Network-friendly OPUS Codec
  • Browser-based Core Configuration Manager
  • Networked Control Events for multi-unicast one-to-many routing
Log in or register for YOUR best price

The Clear-Com LQ-4W2 IP Interface provides intercom connectivity for linking multiple systems together over IP networks, extending intercom channels to remote locations, adding mobile clients and SIP/VoIP telephony to existing intercom systems, and enable extra audio I/O for both HelixNet and Eclipse HX systems.

View full details
  • Audio
    • Resolution: 12 bit
    • Sample Rate: 24kHz
    • Frequency Response: 100 – 12kHz
    • CODEC: OPUS
    • Input Gain: -3dB to +3dB
    • Output Gain: -3dB to +3dB
  • Network Setting
    • Bit Rates: 32, 48, 64, 128kbps
    • Packet Size: 5, 10, 20, 40, 60ms
    • Jitter Buffers: 0 – 1000ms
  • Connectors
    • Network/LAN: EtherCON / RJ45 (female)
    • 4-wire Audio I/O: EtherCON / RJ45 (female)
  • Partyline Output Current
    • LQ
    • Local DC Powered: 150mA
    • POE Powered: 70mA
  • Power Supply
    • Plug-in adapter with sleeve locking connector
    • US, UK , Europe, AUS & China sockets included)
    • Input: 100-240V, 47-63Hz, 0.58A MAX
    • Output: DC 12V, 2A, 24W MAX
  • Environmental
    • Operating Temperature: +32°F – +104°F (0°C – +40°C)
    • Storage Temperature: -67°F – +158°F (-55°C – +70°C)
    • Humidity: 90%, non-condensing
  • Dimensions (WxHxD)6.8x1.79x8.45" (173x46x215mm)
  • Weight1.83lbs (.83kg)
