Community R.5HPT 3-Way 12-Inch Weather-Resistant Speaker
Community R.5HPT 3-Way 12-Inch Weather-Resistant Speaker
SoundPro Item: 46699 | Part Number: R.5HPT
Usually ships in 5-7 business days
- All-weather/all-purpose high performance loudspeaker
- Vastly improved music playback
- Additional coverage patterns
- Higher output
- Attractive paintable ABS enclosures

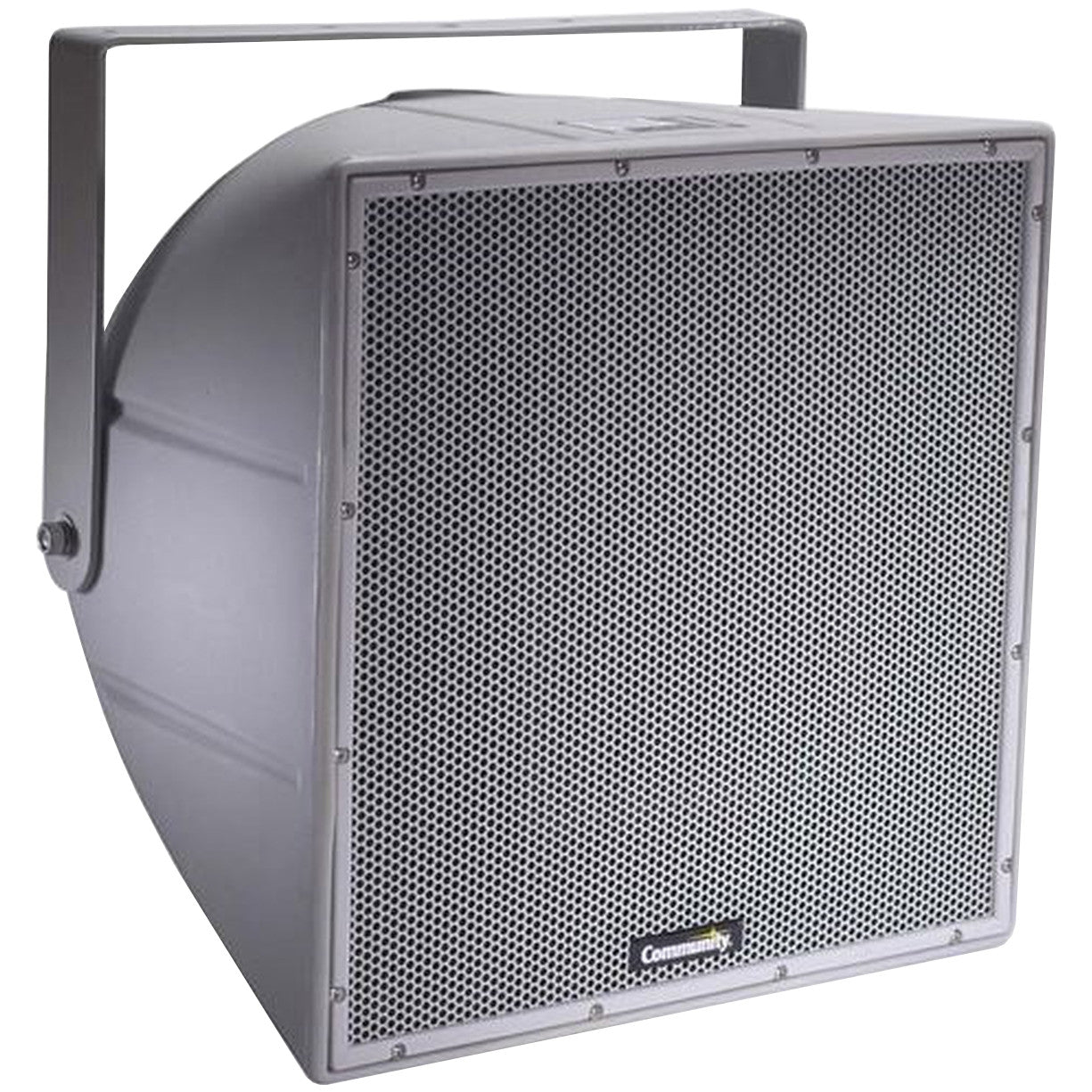

The R.5HPT from Community is a three-way, 12-inch, weather-resistant speaker.
Community expands its premier R-Series family of all-weather/all-purpose high performance loudspeakers with eight new models, including compact coaxial systems and high broadband output performers. These new models represent the next generation of R-Series with their improved musicality and aesthetically streamlined appearance.
Three new compact models, the R.15COAX, R.35COAX, and R.35-3896, give systems designers increased flexibility by offering vastly improved music playback, additional coverage patterns and higher output in attractive paintable ABS enclosures. Five new R-MAX products, the R.5-66MAX, R.5-96MAX, R2-64MAX, R2-66MAX, and R2-94MAX, provide the most well-behaved, flattest musical response premium loudspeakers ever offered in the R-Series.
- Loudspeaker Type3-way, horn loaded coaxial, weather-resistant
- Operating Range
- 90 Hz to 16 kHz
- 125 Hz to 12500 Hz (± 6 dB)
- Max Input Ratings200W, 70/100V
- Recommended Power Amplifier
- 25W to 200W @ 70 Volts
- 50W to 200W @ 100 Volts
- Sensitivity (1W/1m)
- 105 dB SPL (125 Hz to 10 kHz 1/3 octave bands)
- 106 dB SPL (250 Hz to 4 kHz speech range)
- Maximum Output on 200W Tap128 dB SPL
- 200W Nominal Impedance 25 ohms
- 200W Minimum Impedance12.1 ohms @ 11 kHz
- Nominal –6dB Beamwidth
- 60° H (+32° / -17°, 2 kHz to 10 kHz)
- 40° V (+33° / -1°, 2 kHz to 10 kHz)
- Axial Q / DI20.5 / 13.1, 2 kHz to 12.5 kHz
- Crossover Frequency600 Hz / 4 kHz
- Recommended Signal Processing70 Hz high pass filter
- Drivers
- LF (1) 12” weather treated, Ferrofluid-cooled
- MF (1) M200, Ferrofluid-cooled
- HF (1) 1” exit, titanium free, Ferrofluid-cooled
- Driver ProtectionNone
- Input Connection12 foot (4 m) UV-resistant #18 gauge multi-conductor cable
- ControlsNone
- EnclosureRotomolded LLDPE, light gray
- Mounting/Rigging Provisions(5) 3/8-16 rigging points
- Grille3-layer WeatherStop™, light gray (Zinc-rich epoxy dual-layer powder coated perforated steel grille, foam, woven poly mesh)
- Required AccessoriesNone
- Optional AccessoriesPMB Series pole mount brackets
- Dimensions (HxWxD)16x16x16.187" (406.4x406.4x411.15mm)
- Weight45.5 lbs (20.6 kg)
- Shipping Weight52 lbs (23.6 kg)
- Notes
- 1. Sensitivity: Free field pink noise measurement at 40 ft (12.2 m) at 60% power; extrapolated to 1 meter and an input of 2.45 volts RMS.
- 2. Watts: All wattage figures are calculated using the rated nominal impedance. R.5HPT-R
