• Community RMG-200A Voice Range Announcement System
1 1

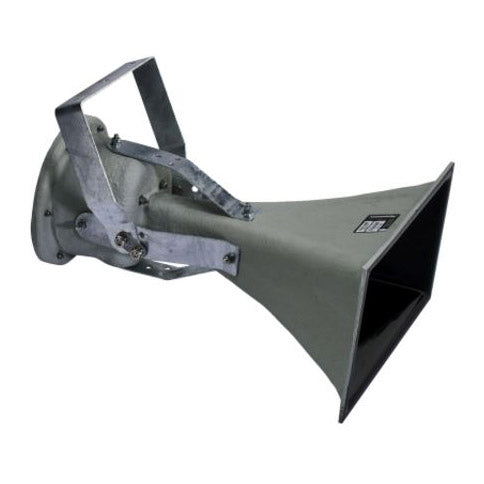

Community RMG-200A Voice Range Announcement System

Community RMG-200A Voice Range Announcement System

SoundPro Item: 63022 | Part Number: RMG-200A

$1,486.00
$1,486.00 $1,486.00
Your Price Sold out
MSRP: $1,486.00 | MAP: $1,486.00

Usually ships in 5-7 business days

  • 2-inch (51 mm) throat exit M200 driver
  • Low distortion, high efficiency, high power output
  • Non-metallic diaphragm
  • Swivel yoke bracket included
  • Highly resistant to harsh environments, IP65W rating per IEC 60529
Log in or register for YOUR best price

The RMG-200 is an extremely efficient standalone horn/driver system designed for long projection voice-range sound reinforcement, announcement and signaling applications. The 50° x 40° horn, driven by Community’s M200 midrange compression driver, delivers focused, high-output sound projection from 400 Hz to 8 kHz with effortless vocal clarity and extremely low distortion. The rugged fiberglass construction and inherently weather-resistant driver design ensure exceptional long-term durability and performance predictability. The RMG-200 is available from the factory with a 200W autoformer installed for 70V/100V applications. A weather-resistant, rotatable hot-dipped galvanized steel mounting bracket is included for installation convenience.

View full details
  • Loudspeaker TypeVoice-range horn system
  • Operating Range
    • 400 Hz to 8 Khz
    • 500 Hz to 4 khz (±3.5 dB)
  • Max Input Ratings75W continuous, 120W program
  • Recommended Power Amplifier100W to 140W
  • Sensitivity (1W/1m)115 dB SPL (400 Hz to 4 kHz 1/3 octave bands)
  • Maximum Output 134 dB SPL / 141 dB SPL (peak)
  • Nominal Impedance11 Ohms
  • Minimum Impedance10.8 Ohms @ 1.8 kHz
  • Nominal –6dB Beamwidth
    • 50°H (+14° / -9°, 2 kHz to 4 kHz)
    • 40°V (+10° / -10°, 2 kHz to 4 kHz)
  • Axial Q / Di35 / 15.4, 2 kHz to 4 kHz
  • Crossover FrequencyNo internal crossover
  • Recommended Signal Processing400 Hz high pass filter 24dB / Oct.
  • DriversMF 1 x M200, Ferrofluid-cooled
  • Driver ProtectionNone
  • Input Connection16 gauge, 2 conductor, 12 foot (4 m) SJOW cable through gland nut
  • ControlsNone
  • EnclosureFiberglass
  • Enclosure HardwareNone
  • Mounting/Rigging Provisions(4) 1/4” holes at the corners of the horn mouth Grille: None
  • Environmental PerformanceIEC529 IP66W rating with a minimum 5-degree downward aiming angle
  • Required Accessories400 Hz high pass filter 24dB / Oct.
  • Dimensions
    • Height:9.75 inches (248 mm)
    • Width (front): 17.63 inches (448 mm)
    • Width (rear): 10.5 inches (267 mm)
    • Depth: 25 inches (635 mm)
    • Weight (with bracket): 21 lbs (9.5 kg)
    • Shipping Weight: 27 lbs (12.2 kg)
  • Notes
    • 1. Sensitivity: Free field pink noise measurement at 40 ft (12.2 m) at 50% power; extrapolated to 1 meter and an input of 3.4 volts RMS.
    • 2. Watts: All wattage figures are calculated using the rated nominal driver impedance.
