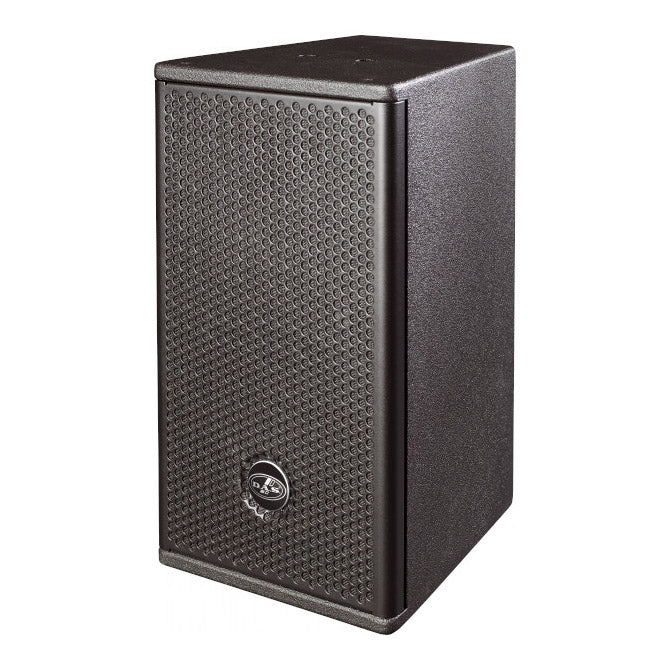

The ARTEC-508A incorporates a single 8” loudspeaker for low frequency reproduction. The 720 W peak power of the Class D amplifier provides extended bandwith, improved dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment. The DAS 8C loudspeaker provides accurate low frequency reproduction. High frequencies are handled by the M-34 compression driver with 1″ exit offering excellent HF performance. The birch plywood cabinet construction offers an ultra-compact design which is available in black or white.
DAS Audio ARTEC-508A Features
- Ultra lightweight Class D amplifier
- Switch-mode power supply
- Horizontal or vertical position
- Ideal for A/V systems, corporate events, conference rooms, classrooms, restaurants, and more
- ARTEC-508A 8" 2-way compact powered installation speaker1
- Frequency Range (-10dB)55Hz - 20,000Hz
- Horizontal Coverage (-6dB)80°
- Vertical Coverage80°
- Max. Peak SPL at 1m122dB
- Nominal Amplifier Power
- LF Continuous: 360W
- LF Peak: 720W
- HF Continuous: 180W
- HF Peak: 360W
- Input Typebalanced
- Input Impedance20 kΩ
- Input Sensitivity1.95 V (+8 dBu)
- Audio Signal Input Connector1 x female XLR
- Audio Signal Loop Thru Connector1 x male XLR
- Current Draw 230 V / 115 V-/2.4 A
- Components
- LF Driver: 8C
- HF Driver: M-34
- Horn/Waveguide: BC-88
- Enclosure
- Construction: birch plywood
- Geometry: trapezoidal
- Rigging: M10 rigging points
- Finish: ISO-flex paint
- Dimensions (HxWxD): 17.7" x 9.6" x 11.4"
- Weight: 21.8 pounds
