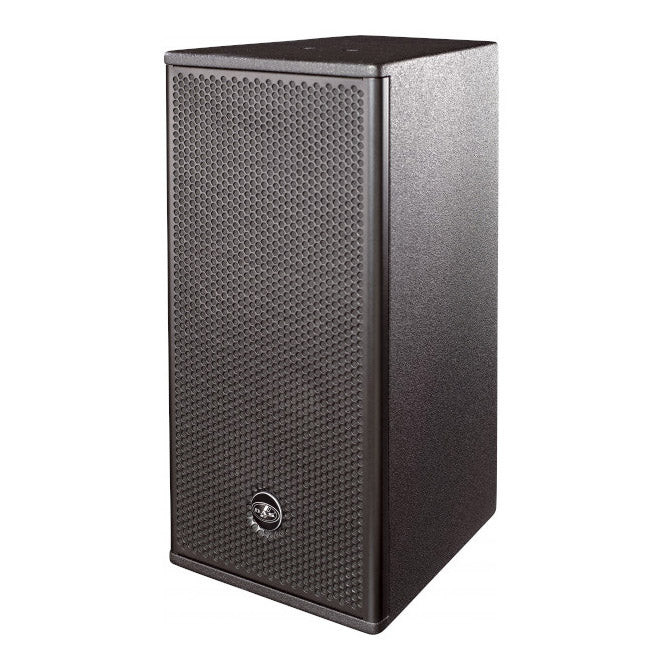

DAS Audio ARTEC-510 10-Inch Passive Surface Mount Speaker | Model: ARTEC-510
DAS Audio ARTEC-510 10-Inch Passive Surface Mount Speaker | Model: ARTEC-510
SoundPro Item: 19454 | Part Number: ARTEC-510
Usually ships in 5-7 business days
- Single 10” loudspeaker
- 1″ compression driver
- Threaded fixing points for wall mounts
- Pole mount socket
- Ideal for A/V systems, corporate events, conference rooms, classrooms, restaurants and more
The Artec-510 employs a single 10P woofer for low frequency reproduction. The M 60N compression driver with neodymium magnet assembly provides brilliant highs. The birch plywood cabinet construction offers an ultra compact design which is available in black or white. Precise coverage and control with its 110º x 50º horn geometry. The cabinets can be permanently installed by way of the optional “U” brackets and accessories which allow for multiple configurations. Four threaded fixing points for the AXW-1 adjustable wall mount and a pole mount socket augment adaptability. A robust steel grille internally lined with acoustically transparent filter cloth protects components.
- Frequency Range (-10dB)55Hz - 20,000Hz
- Horizontal Coverage (-6dB)110°
- Vertical Coverage50°
- Nominal Impedance8Ω
- RMS Power Handling400W
- Peak Power Handling1600W
- On-Axis Sensitivity 1W/1m96dB SPL
- Max. Peak SPL at 1m128dB
- Recommended Amplifier
- DX-80-230
- DX-80-115
- Recommended ProcessorDSP-2040
- Connectors
- Audio Input Connector: 1 x speakON NL4
- Audio Output Connector: 1 x speakON NL4
- Components
- LF Driver: 10P
- HF Driver: M-6ON
- Horn/Waveguide: BC-115
- Enclosure
- Construction: birch plywood
- Geometry: trapezoidal
- Rigging: M10 rigging points
- Finish: ISO-flex paint
- Dimensions (HxWxD): 24" x 11.6" x 13.6"
- Weight: 41.9 pounds
