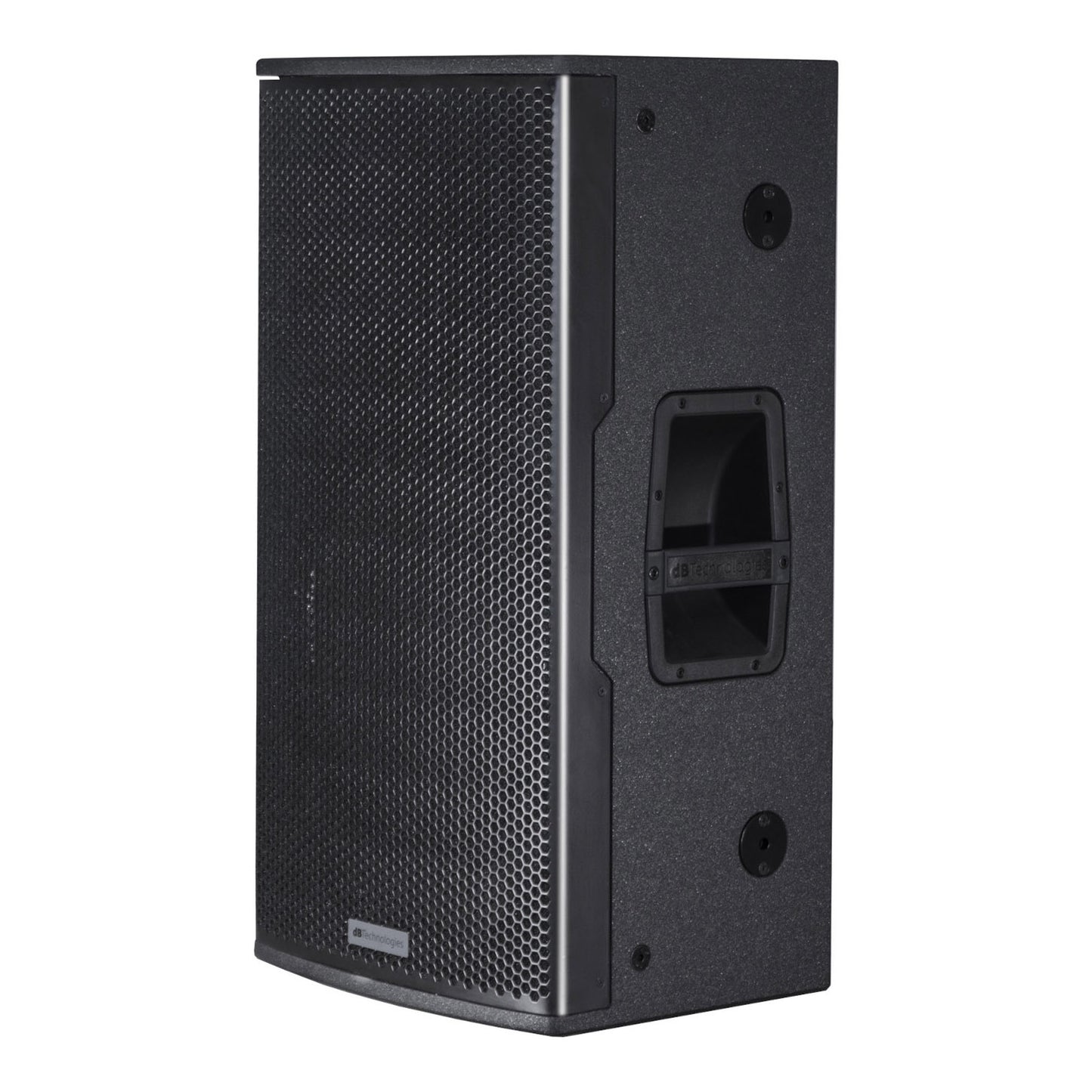

- Speaker Type2 way active loudspeaker
- Usable Bandwidth (-10dB)55Hz - 22,000Hz
- Frequency Response (-6dB)72Hz - 21,000Hz
- Max. SPL133.5 dB
- HF1 x 1.4"
- Voice Coil HF2.5" neodymium
- LF1 x 15"
- Voice Coil LF3" neodymium
- Directivity (HxV)60° x 40°
- Hornrotatable horn
- Amplifier900 W RMS Class-D Digipro® G3
- Coolingconvection
- Power Supplyauto-range SMPS
- ControllerDSP 28/56 bit
- AD/DA Converter24 bit / 48kHz
- Limiterpeak, RMS, thermal
- ProcessingFIR Linear Phase Filters
- Signal Input
- 1x XLR balanced, 1x RJ45 Link (RDNet)
- 1x USB Data Service
- Signal Output1x XLR balanced, 1x RJ45 Link (RDNet)
- Power Socket
- 1x PowerCON TRUE1 In
- 1x PowerCON TRUE1 Out
- Controls
- 1x Rotary Encoder (8x EQ, HPF presets)
- 1x Input sensitivity potentiometer
- 1x Mic / line switch
- Special Featuresopto-isolated floating pre-amp
- Housingwooden cabinet, Polyurea painting
- Handles1x (top), 2x (side)
- Wedge Anglemonitor use 50°
- Rigging Points12x M10 Thread + 4x Fast lock pins
- Pole MountØ36 mm
- Dimensions (WxHxD)15.74" x 29.52" x 18.7"
- Weight55.99 pounds
