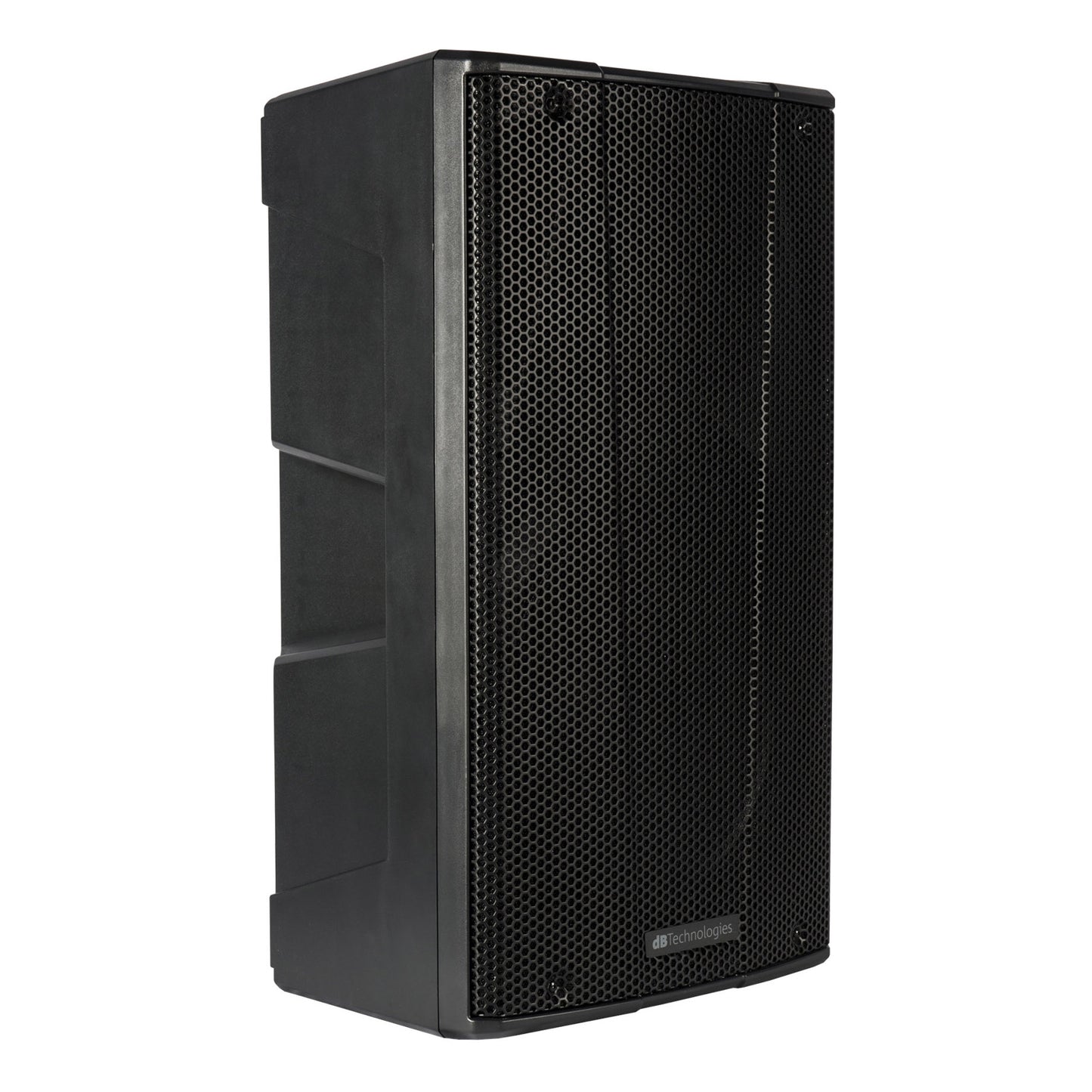

- Speaker type2-way active speaker
- Acoustical data
- Usable bandwidth (-10dB): 55-20,000Hz
- Frequency response (-6dB): 61-19,500Hz
- Max SPL: 126 dB
- HF: compression driver, 1" voice coil
- LF: 12", 2" voice coil
- Crossover frequency: 2100Hz (24dB/oct)
- Horizontal dispersion: asymmetrical 85° up / 120° down
- Vertical dipsersion: 85° (+25/-60)
- Amplifiercustom made, Class D, convection cooling
- Power peak400W
- Processor
- Controller: DSP 28/56bit-48kHz
- Limiter: peak, RMS, thermal
- Controls
- Volume
- Audio input sensitivity
- DSP preset
- Input
- Main connection: VDE
- Signal input: balanced 1x combo in (mic/line)
- Signal out: balanced 1x XLR out (link)
- Physical data
- Housing: polypropylene
- Grille: full metal grille
- Angles up: double wedge angle 45°
- Handles: 3 (2 on side, 1 on top)
- Pole mount: 36mm
- Dimensions (WxHxD): 13.77" x 25.4" x 12.99"
- Weight: 30.46 pounds (13.9 kg)
