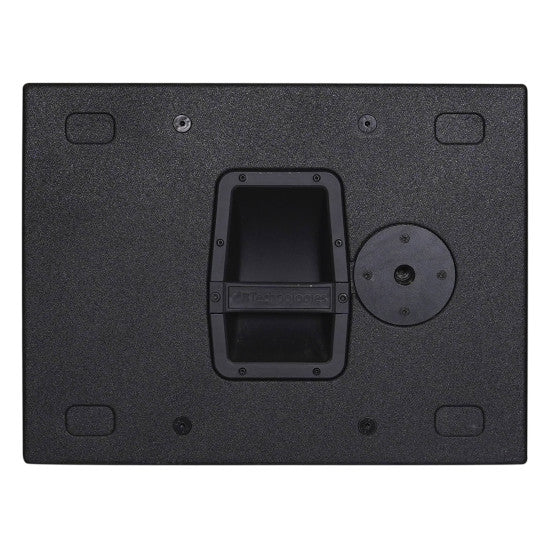

  • dBTechnologies VIO S115 Powered Line Array Subwoofer bottom
1 5

dBTechnologies VIO S115 Powered Line Array Subwoofer

dBTechnologies VIO S115 Powered Line Array Subwoofer

SoundPro Item: 121639 | Part Number: ViO S115

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Flyabe single 15" subwoofer
  • 900W RMS SMPS amplifier
  • Horizontal or vertical use
Log in or register for YOUR best price

VIO S115 is a self-powered, flyable, single 15" subwoofer, with a standard frontal bass reflex acoustic configuration. It is definitely inspired by dBTechnologies popular VIO S118R subwoofer, with the advantages of being flyable.

This is the most compact VIO sub, just perfect as a complement for all VIO X full range series. The system is loaded with a 15" neodymium woofer, driven by a 900 W RMS Digipro G3 amp, which allows for complete networkability with all other speakers in VIO family. The cabinet is provided with M10 flying points and M20 pole mounts on both top and side of the box, so the sub allows for horizontal or vertical use, when flown or ground stacked. Two different flybars and sub brackets open for tons of possible configurations with VIO X206 boxes when in line array mode, a single flybar allowing for a simple set up, and a double flybar, which allows to fly multiple sub arrays and top arrays together, and many more configurations that will suit any installation requirements.

View full details
  • Speaker TypeActive Bassreflex Subwoofer
  • Acoustical Data
    • Frequency Response (-6dB): 40Hz - user frequency LPF
    • Frequency Response (-10dB): 36Hz - user frequency LPF
    • Max. SPL: 134dB
    • LF: 1x15"
    • Voice Coil LF: 4"
    • Directivity: omnidirectional
  • Amplifier
    • Amp Technology: Digipro® G3
    • Amp Class: Class D
    • RMS Power: 900W
    • Peak Power: 1800W
    • Cooling: convection
  • Processor
    • Controller: DSP 32 bit
    • AD/DA Converter: 24 bit / 96kHz
    • Limiter: RMS, Peak, Thermal
  • Input
    • Signal Input
      • 1xXLR balanced
      • 1xRJ45 LINK (RDNet)
    • Signal Output
      • 1x XLR balanced
      • 1xRJ45 LINK (RDNet)
    • Power Socket
      • 1xPowerCON TRUE1 IN
      • 1xPowerCON TRUE1 OUT
    • Controls
      • 1x Input Sensitivity Rotary Encoder
      • 1x X-Over Selection Encoder
      • 1x Delay Selection Encoder
      • 1x Polarity Selection Switch
      • 1x X-Out Mode Selection Switch
      • 1x On LED
      • 1x Status LED
      • 1x Signal LED
      • 1x Limiter LED
      • 3x RDNet Status LED
  • Mechanics
    • Housing: multiplex plywood polyurea painted
    • Pole Mount: 1x M20 on Top, 1x M20 on Right Side
    • Handles: 1x side, aluminum
    • Rigging Points: 16x M10
    • Dimensions (WxHxD): 25.6" x 16.5" x 21.7"
    • Weight: 72.3 pounds
