• Decimator DMON-4S Quad SDI to HDMI Converter
1 1

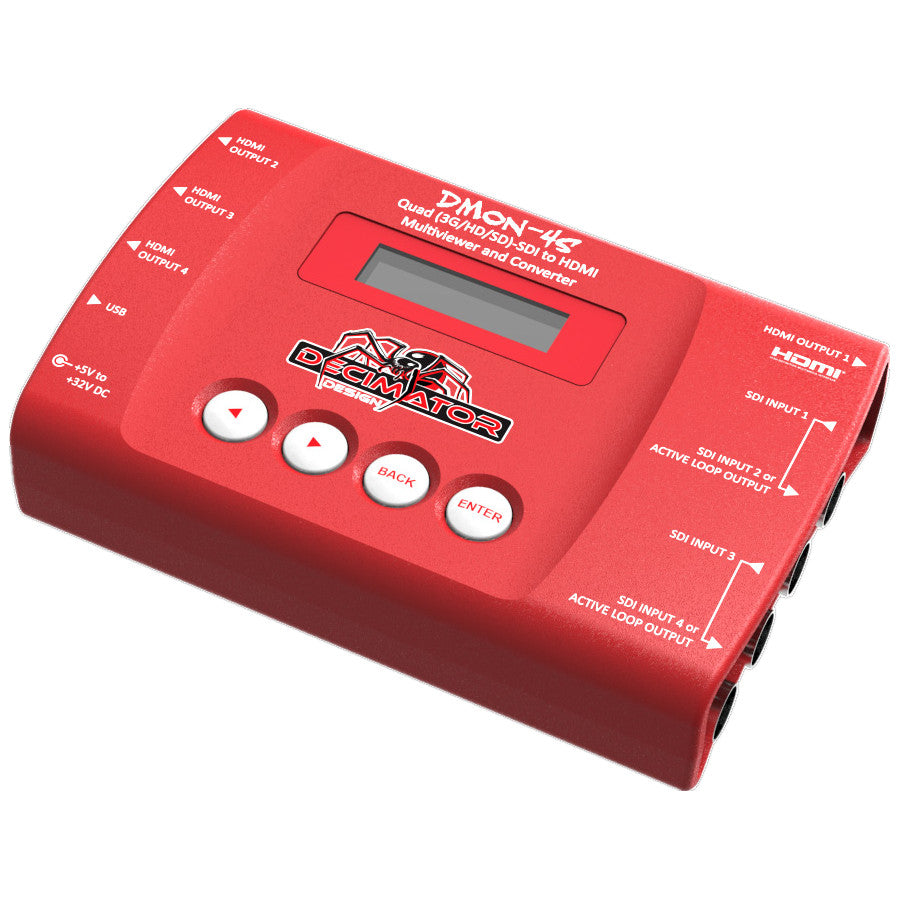

Decimator DMON-4S Quad SDI to HDMI Converter

Decimator DMON-4S Quad SDI to HDMI Converter

SoundPro Item: 35208 | Part Number: DMON-4S

$545.00
$545.00 $545.00
Your Price Sold out
MSRP: $545.00 | MAP: $545.00

Usually ships in 5-7 business days

Log in or register for YOUR best price

4 x (3G/HD/SD)-SDI to HDMI Converters with 1 to 4 MultiViewer, Custom Layouts and 8 Channel Audio Meters.

The DMON-4S is a truly portable converter, that incorporates Decimator's new easy to use LCD and button control system. Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously with variable aspect ratios per window.

View full details
  • SDI Input Formats
    • 3G: SMPTE 424M@2.97 and 2.967Gb/s
      • 1080p@60/59.94/50Hz
    • HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
      • 1080i@60/59.94/50Hz
      • 1080p/psf@30/29.97/25/24/23.98Hz
      • 720p@60/59.94/50/30/29.97/25/24/23.98Hz
    • SD:SMPTE 259M@270Mb/s
      • 625i50
      • 525i59.94
  • HDMI Output Formats
    • 1080p@60/59.94/50Hz
    • 1080i@60/59.94/50Hz
    • 1080p@30/29.97/25/24/23.98Hz
    • 720p@60/59.94/50/30/29.97/95
    • 625i50
    • 525i59.94
  • Power
    • +5V to +32V DC, 6 Watts
    • Positive Centre Pin
  • LCD / Button Menu Options
    • Status for all 4 inputs
    • HDMI output type and source selection from SDI inputs 1 to 4
    • Quad-Split output format selection
    • Quad-Split output aspect and type of 16:9 or 4:3 at either 90 or 100% of screen size
    • Quad-split individual aspect format for each input of Same as output, Letter-box or Pillar-box
    • Quad-split Border Enable
    • Quad-split mode reference of either Free-run or inputs 1 to 4
  • Inputs
    • Up to 4x (3G/HD/SD)-SDI inputs
    • Input Equalization > 100M using Belde n 1694A
    • USB for control and updates
  • Outputs
    • 4x mini HDMI Type C
    • Optional SDI Active Loop Out of inputs 1 and/or input 3
  • Dimensions3.1x4.8x1.2"
