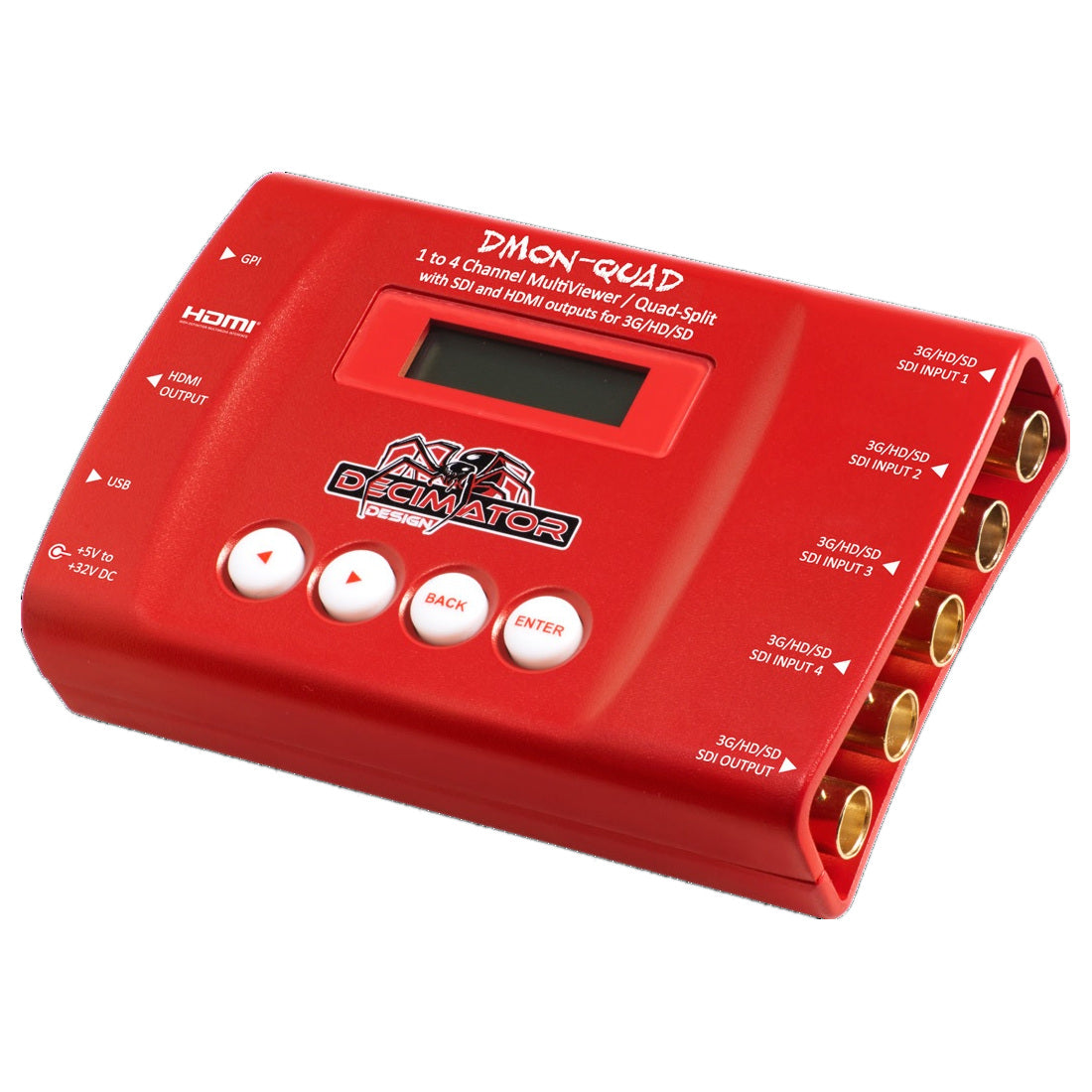

Decimator DMON-QUAD 4-Channel MultiViewer

Decimator DMON-QUAD 4-Channel MultiViewer

SoundPro Item: 35206 | Part Number: DMON-QUAD

$325.00
$325.00 $325.00
Your Price Sold out
MSRP: $325.00 | MAP: $325.00

Usually ships in 5-7 business days

  • Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
  • Custom layouts with various standard layouts
  • 16 character UMD overlay per window with individual enables, custom positioning and size
  • 8 channel audio metering overlay per window with individual enables, custom positioning and size
  • Horizontal and/or vertical image flipping per window
  • Audio ID overlay
  • Tallies can be applied to either tally boxes (default) or border
  • Tally boxes allows for up to 4 tallies per window
  • Fast switching between inputs using full-screen scaling
  • Selectable output format in both full-screen multi-viewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • Linked (3G/HD/SD)-SDI and HDMI outputs
  • 4 x (3G/HD/SD)-SDI inputs with auto detection (26 formats supported in total)
  • In pass-through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs
  • GPI on RJ-45 connector for tallies and remote switching
  • RS422/485 on RJ-45 connector for dynamic UMD and tallies
  • USB port for control and firmware updates
  • Robust aluminium box
  • Metal thread locking DC power socket
Log in or register for YOUR best price

The DMON-QUAD is a truly portable converter, that incorporates Decimator's easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting. Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously with variable aspect ratios per window. 4 x (3G/HD/SD)-SDI to HDMI Converters with 1 to 4 MultiViewer, Custom Layouts and 8 Channel Audio Meters.
