• Decimator MD-HX HDMI / SDI Cross Converter
1 1

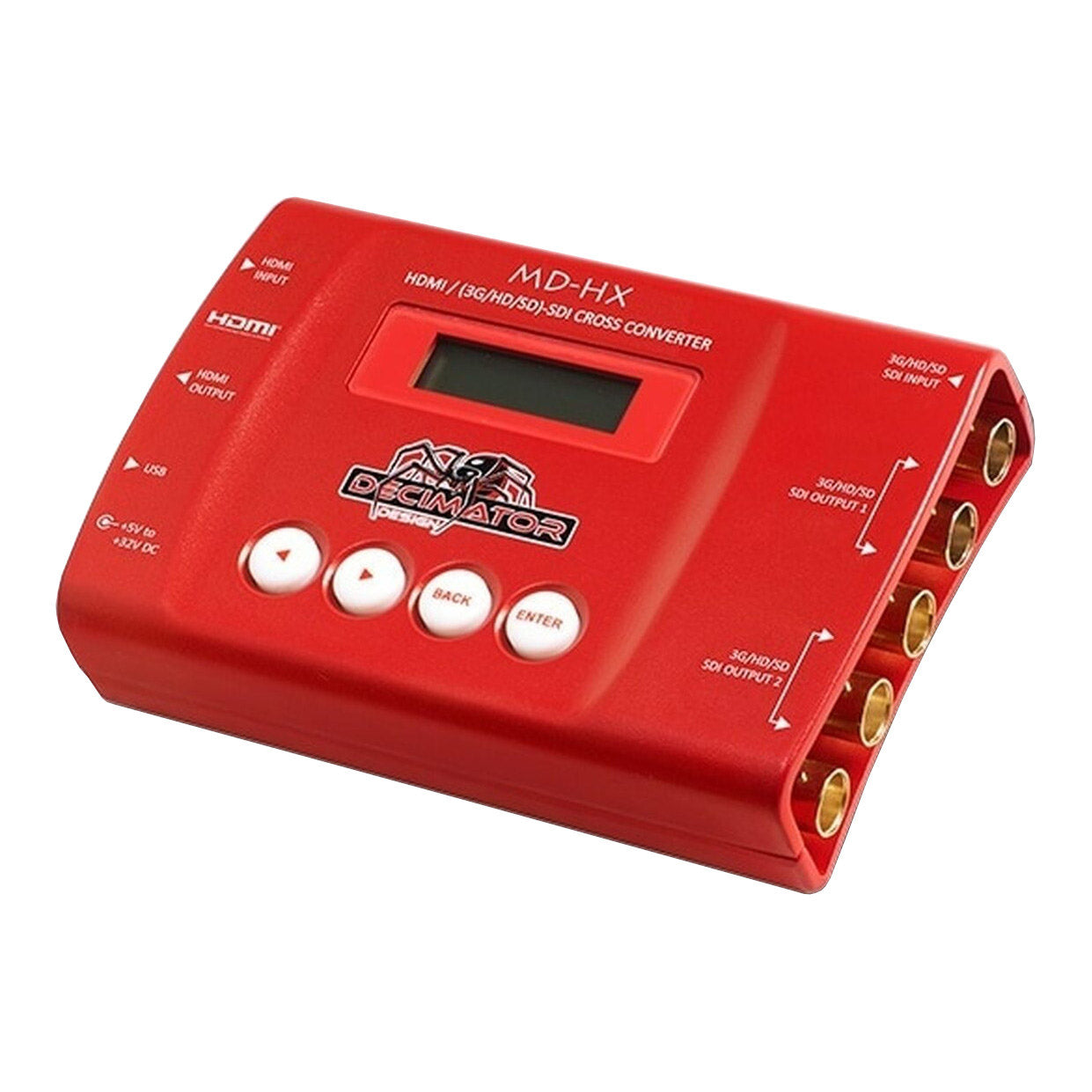

Decimator MD-HX HDMI/SDI Cross Converter

Decimator MD-HX HDMI/SDI Cross Converter

SoundPro Item: 35200 | Part Number: MD-HX

$325.00
$325.00 $325.00
Your Price Sold out
MSRP: $325.00 | MAP: $325.00

Usually ships in 5-7 business days

  • Supports both 3G level A and B on the input and output. Allowing conversion between A and B
  • Horizontal and/or Vertical image flipping via the built in scaler
  • Combines several converters for the price of one (e.g. SDI to HDMI, HDMI to SDI, Down Up Cross Converter, etc.)
  • Robust Aluminium Case with easy to use LCD and button control system
  • Features 14 modes
  • 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier
  • The audio pairs in the SDI and HDMI outputs can be rearranged as required
  • Includes the same Down Up Cross Converter from the multi-award winning MD-DUCC, allowing either the HDMI or SDI input to be scaled and/or frame rate
Log in or register for YOUR best price

The Decimator MD-HX is a truly portable converter, which incorporates Decimator's new easy to use LCD and button control system. This gives you easy access to all of the amazing features that have been unavailable without a computer until now. The days of having to play with complicated dip switches or having to carry around a computer to change a simple setting are gone.

View full details
  • SDI Formats
    • 3G: SMPTE 424M@2.97 and 2.967Gb/s
      • 1080p@60/59.94/50Hz
    • HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
      • 1080i@60/59.94/50Hz
      • 1080p/psf@30/29.97/25/24/23.98Hz
      • 720p@60/59.94/50/30/29.97/25/24/23.98Hz
    • SD:SMPTE 259M@270Mb/s
      • 625i50
      • 525i59.94
  • Inputs
    • 1 x HDMI input
    • 1 x (3G/HD/SD)-SDI input
  • Outputs
    • 1 x HDMI
    • 2 x (3G/HD/SD)-SDI Active Loop-through or addition outputs
    • 2 x (3G/HD/SD)-SDI outputs
  • Power
    • +5V to +32V DC
    • Positive Centre Pin
  • LCD / Button Menu Options
    • SDI output source from HDMI IN, SDI IN, Scaler
    • SDI output 1 is loop
    • HDMI output type and source from HDMI IN, SDI In, Scaler
    • Scaler source, reference, format and Aspect Controls
    • Audio pair routing for HDMI and SDI output
    • LCD backlight off time
    • Back to Status time
  • Dimensions3.1x4.8x1.2"
