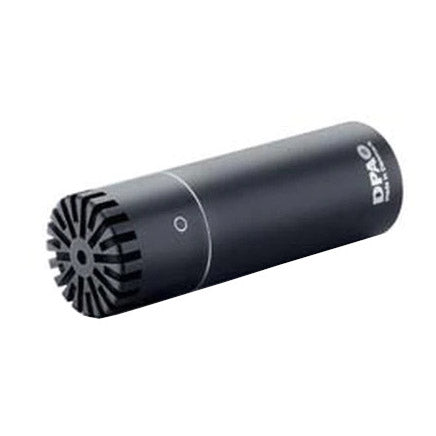

• DPA 2006C Twin Diaphragm Omnidirectional Microphone
1 1

DPA 2006C Twin Diaphragm Omni Microphone

DPA 2006C Twin Diaphragm Omni Microphone

SoundPro Item: 43215 | Part Number: 2006C

$1,070.00
$1,070.00 $1,070.00
Your Price Sold out
MSRP: $1,070.00 | MAP: $1,070.00

Usually ships in 5-7 business days

  • Acoustic authenticity
  • Linear in a large frequency bandwidth
  • Twin-Diaphragm-Capsule technology
  • Modular flexibility
Log in or register for YOUR best price

The d:dicate 2006C Twin Diaphragm Omnidirectional Microphone features a linear omnidirectional mic capsule. The distinctive sound is well balanced. This condenser mic bridges the gap between the extreme sound quality of the d:dicate Microphones series and our well-known Miniature Microphones in the d:screet and d:fine series.

View full details
  • Transducer TypeCondenser
  • Polar PatternOmnidirectional
  • Frequency Response20 Hz - 20 kHz
  • Rated Output Impedance100 ohms
  • Sensitivity, nominal, ±2 dB at 1 kHz40 mV/Pa; -28 dB re. 1 V/Pa
  • Equivalent Noise Level, A-WeightedTyp. 16 dB(A) re. 20 µPa (max. 18 dB(A))
  • Equivalent Noise Level, ITU-R BS.468-4Typ. 28 dB (max. 30 dB)
  • Distortion, THD <1%127 dB SPL RMS, 130 dB SPL peak
  • Dynamic Rangetyp. 114 dB
  • Max. SPL, THD 10%146 dB SPL peak
  • Cable Drive Capability100 m (328 ft)
  • Output Balance PrincipleImpedance balancing with Active Drive
  • Power Supply (for full performance)P48 (phantom power)
  • Current Consumption2.8mA
  • ConnectorXLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Max. Output Voltage, RMS4.5 V
  • Sensitivity selection tolerance (at 1 kHz)±1.5 dB
  • Dimensions0.75" diameter x 2.3" length
  • Weight2.1 oz
