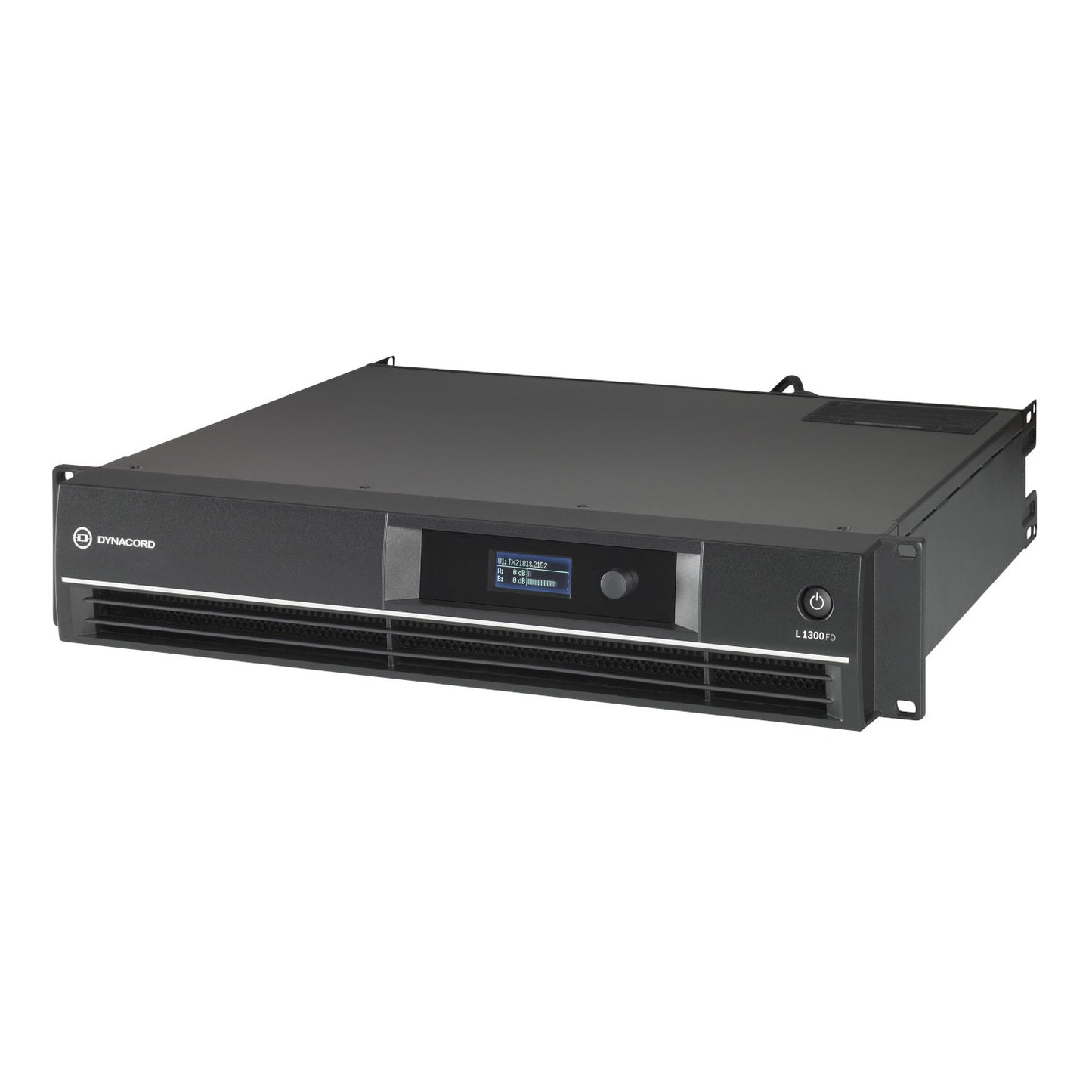

The Dynacord L1300FD-US 2x650W DSP Power Amplifier is a professional dual channel audio amplifier for live and mobile applications. Integrated digital signal processing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.
Dynacord L1300FD-US Features
- DSP 2 x 650W power amplifier
- For live and mobile application
- Fully integrated professional speaker processing with FIR drive technology
- Market-leading acoustic performance and rock solid reliability
- Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0
- L1300FD-US 2x650W DSP power amplifier1
- Max. Output Power, Single Channel
- 2Ω: 1100W
- 2.6Ω: 950W
- 4Ω: 660W
- 8Ω: 350W
- Max. Output Power, Dual Channel
- 2Ω: 1000W
- 2.6Ω: 850W
- 4Ω: 600W
- 8Ω: 320W
- Max. Output Power, Bridged
- 4Ω: 2000W
- 8Ω: 1200W
- Max. RMS Voltage Swing THD = 1%, 1kHz55.3 V
- Voltage Gain Ref. 1kHz32 dB
- THD at 450 W/4 Ω MBW = 80 kHz, 1kHz< 0.05%
- IMD-SMPTE, 60 Hz, 7 kHz< 0.1%
- DIM30, 3.15 kHz, 15 kHz< 0.05%
- Max. Input Level+21dBu
- Crosstalk ref. 1 kHz, at 100W/4 Ω< -80 dB
- Frequency Response, ref. 1 kHz10 Hz to 21 kHz (±1 dB)
- Input Impedance, Active Balanced20 k Ω
- Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 Ω>104 Db
- Output Noise, A-weighted< -68 dBu
- Output Stage TopologyClass AB
- Power Requirements240V, 230V, 120 V or 100V; 50 Hz to 60 Hz (factory configured)
- Power Consumption ⅛ MaximumOutput Power @ 4 Ω550W
- Mains Fuse240V/230V: T10AH; 120V/100V: T20AH
- ProtectionAudio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, In rush current limiters, Turn on delay
- CoolingFront-to-rear, 3-stage-fans
- Ambient Temperature Limits40°F to +105°F (5°C to 40°C)
- Safety ClassI
- Signal ProcessingFIR filters, audio limiters, output and array** delay, 10-band** user PEQ, 5-band array PEQ** per channel, load impedance
- Remote ControlSONICUE sound system software (requires firmware 2.0)
- Dimensions (WxHxD)19.02x3.46x18.21"
- Weight28.4 pounds
