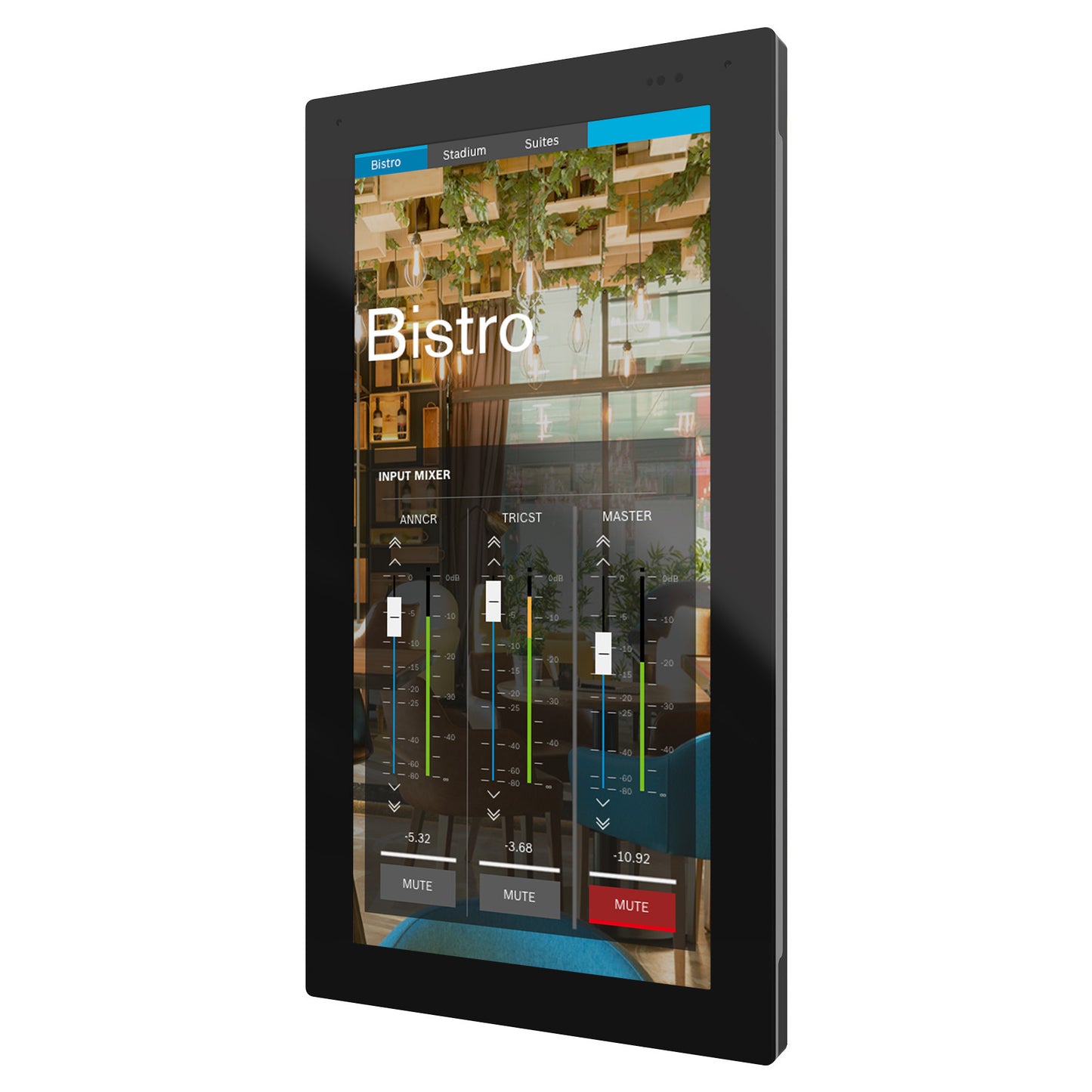

The TPC-1 touch panel controller allows the system integrator to provide customized apps to control MXE series audio matrices. Featuring a high definition 5.7” display, the super slim in wall profile and universal mounting for EU, UK, or US mounting boxes with Power over Ethernet (PoE) makes it easy to install, even in shallow wall spaces. TPC-1 features theft protection by a secured mounting plate. The TPC-1 interface is freely configurable in SONICUE sound system software, allowing custom images and text in local languages to be added to control elements.

Dynacord TPC-1 Features

  • Customized user control apps with SONICUE
  • High definition (720 x 1440) IPS 5.7" display with 450 nits of brightness
  • PoE, compatible with US single gang, EU and UK wall boxes
  • Only 1 inch installation depth in wall
  • TPC-1 touch panel controller1
  • DisplayIPS 5.7"
  • Resolution720 x 1440 px
  • Color16.7 million
  • Brightness450 nits
  • ProcessorNXP iMX8, 64-bit Armv8-A, quad symmetric-core ARM Cortex-A53 processor @ 1.8 Ghz
  • Proximity Sensor (Max. Range)120 cm
  • Proximity Sensor (Capture Range)25° horizontal, 25° vertical
  • Wired NetworkIEEE1588 Gigabit Ethernet
  • PoEIEEE PoE 802.3af compliant via LAN port
  • Aux Power+24 V DC (connector 5.5/2.5/12 mm), power supply not included
  • Power Consumption6W (typical), 8W (max.)
  • USBUSB 2.0 on the rear for service
  • InstallationWall-mount, US NEMA single gang, EU 65mm (IEC/EN 60670), UK BS 4662
  • Recommended CablingCAT6
  • Dimensions (WxHxD inside/outside wall)3.37" x 5.92" x 0.48"/0.81"
