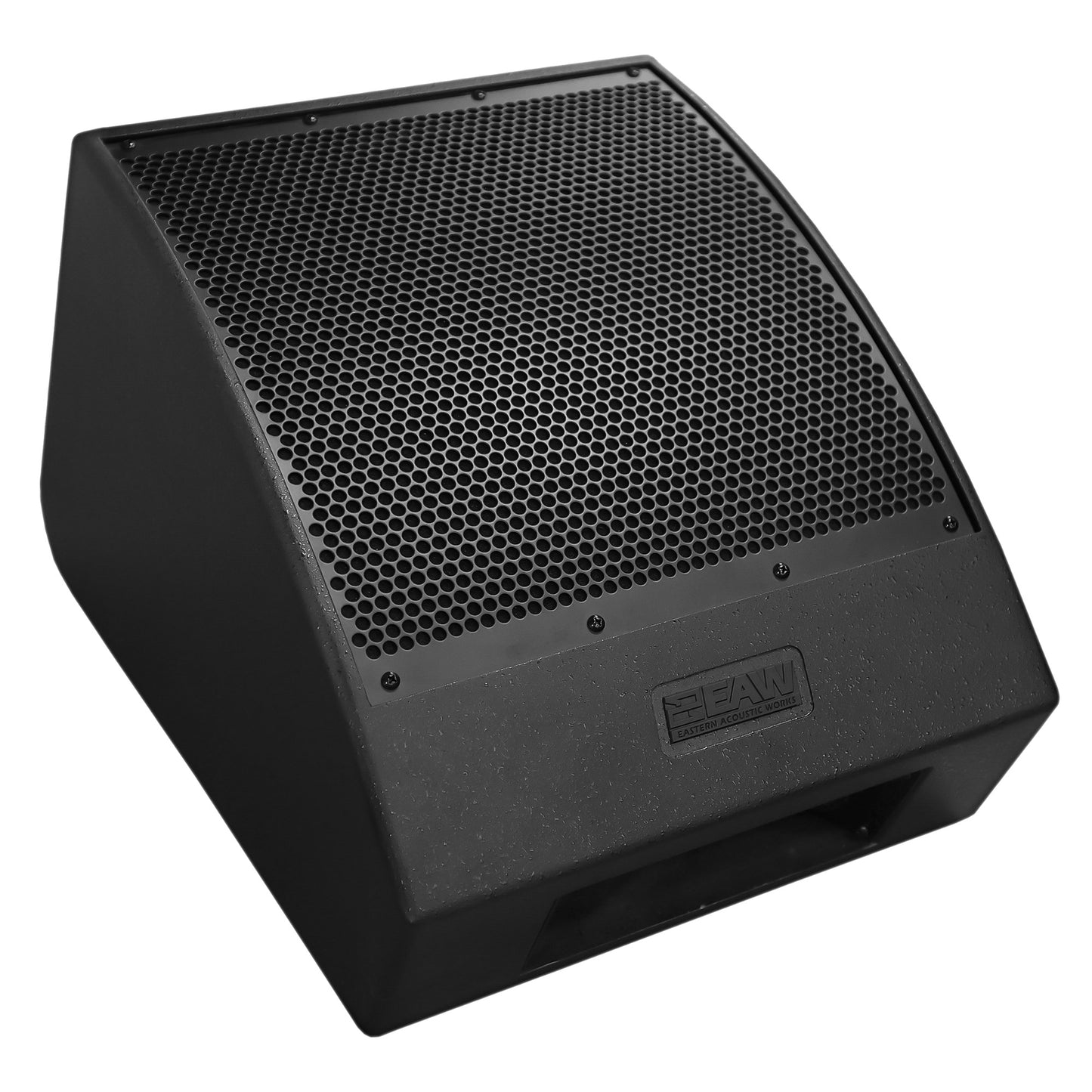

EAW SM12 12-Inch 2-Way Stage Monitor | Color: Black
EAW SM12 12-Inch 2-Way Stage Monitor | Color: Black
SoundPro Item: 141315 | Part Number: SM12 BLACK
Usually ships in 5-7 business days
- Available in black or white finish (white not pictured)
- High output, coaxial stage monitor
- Patented CSA coaxial horn provides superior control, fidelity and output
- Integrated kickstand supports alternative deployment angle
- Multiple input options improves cable management utilizing fewer cable runs
- Companion UXA4403 amplifier
- Passive operation for maximum amplifier utilization
Inspired by the Microwedge acoustic design, SM12 is the latest addition to EAW’s robust catalog of stage monitors.
Inspired by the Microwedge acoustic design, SM12 is the latest addition to EAW's robust catalog of stage monitors. The monitor can either be deployed on a flat surface using two cabinet orientations, or utilizing a third-party pole mount with the available mounting pattern. An integrated kickstand allows for additional positioning when used as a stage or floor monitor.
Multiple input options allows for easy concealment of cables while utilizing fewer cable runs. SM12 integrates seamlessly with the UXA4403 & UXA4416 amplifiers, ensuring a constant tuning each time the system is in use.
- PERFORMANCE
- Max SPL[1] (12 dB Crest Factor): 135dB
- Max SPL[1] (6 dB Crest Factor): 129dB
- Operating Range[2]: 60Hz-20kHz
- Nominal Beamwidth[3]: 90 x 60 degress, rotatable
- Axial Sensativity: 95dB
- Calculated Axial Output: 123dB average
- Nominal Phase: ±15o from ideal high-pass filter
- Input Impedance: 8 ohms nominal, 6.5 ohms @ 200Hz minimum
- Recommended HPF: 50Hz, 12dB/oct
- ACCELERATED LIFE TEST [4]LF/HF 600W @ 8ohms
- CONFIGURATION
- LF Transducer, Loading: 1x12" cone, 2.5" VC, Vented
- HF Transducer, Loading
- 1x1-in exit, 44mm voice coil compression driver,
- Concentric Summation Array (CSA) loaded
- Operating Modes: Single-Amp (LF/HF, DSP w/ EAW Focusing & DynO)
- PHYSICAL
- Physical Rigging
- 2x M6 Theaded Points for Pole Cup Mount
- 4 x M6 Mounting pattern for wall mount bracket
- Dimensions (HxWxD): 12.8x14.1x21.5" (326x357x546mm)
- Net Weight: 35 lbs (15.9kg)
- Shipping Weight: 40 lbs (18.1kg)
- Mounting Accessories: Metal Wall Mount Pan/Tilt Bracket
- Input Connector: 4x Nuetrik NL4 (2x on bottom, 2x inside port)
- Notes
- [1] Calculated peak SPL at 1m with stated crest factor pink noise. Specified as whole space (free field) for full range loudspeakers, half space for subwoofers.
- [2] Operating Range: Range where the processed Frequency Response stays within -10 dB SPL of the power averaged SPL within this range; measured on the geometric axis. Narrow band dips are excepted.
- [3] Nominal Beamwidth: Design angle for the -6 dB SPL points, referenced to 0 dB SPL as the highest level.
- [4] Accelerated Life Test: Maximum test input voltage applied with an EIA-426B defined spectrum; measured with recommended signal processing and Recommended Protection Filter."
- CONFIGURATION
