Elation PIXEL DRIVER 4000 V3

Elation PIXEL DRIVER 4000 V3

SoundPro Item: 141958 | Part Number: PIX698

$1,220.00
$1,220.00 $1,220.00
Your Price Sold out
MSRP: $1,220.00 | MAP: $1,220.00

Usually ships in 5-7 business days

  • Power/Data Supply for Elation PIXEL TAPE 16IP, 40IP, PIXEL BAR 30IP, 60IP, 120IP, and PIXEL WASH 40IP
  • Simple On-Board Manual Dimming and Strobe Control
  • Kling-Net, Art-Net, and sACN Protocol Support
  • 4,080 Max Pixel Mapping via Kling-Net, Art-Net and sACN (1,020 Pixels per Port)
  • 10 Artnet / sACN Universes per Port (1,020 Pixels per Port)
  • 19-inch (483mm) Rack Mount Kit Included
  • Truss Mounting Options (clamp not included)
  • Multi Unit Linking via RJ45 Ethernet
  • (4) Outputs
  • 5.65ft (1.7m) Power Cable Included
  • 9.25ft (2.8m) 16AWG Power/Data Cable Included

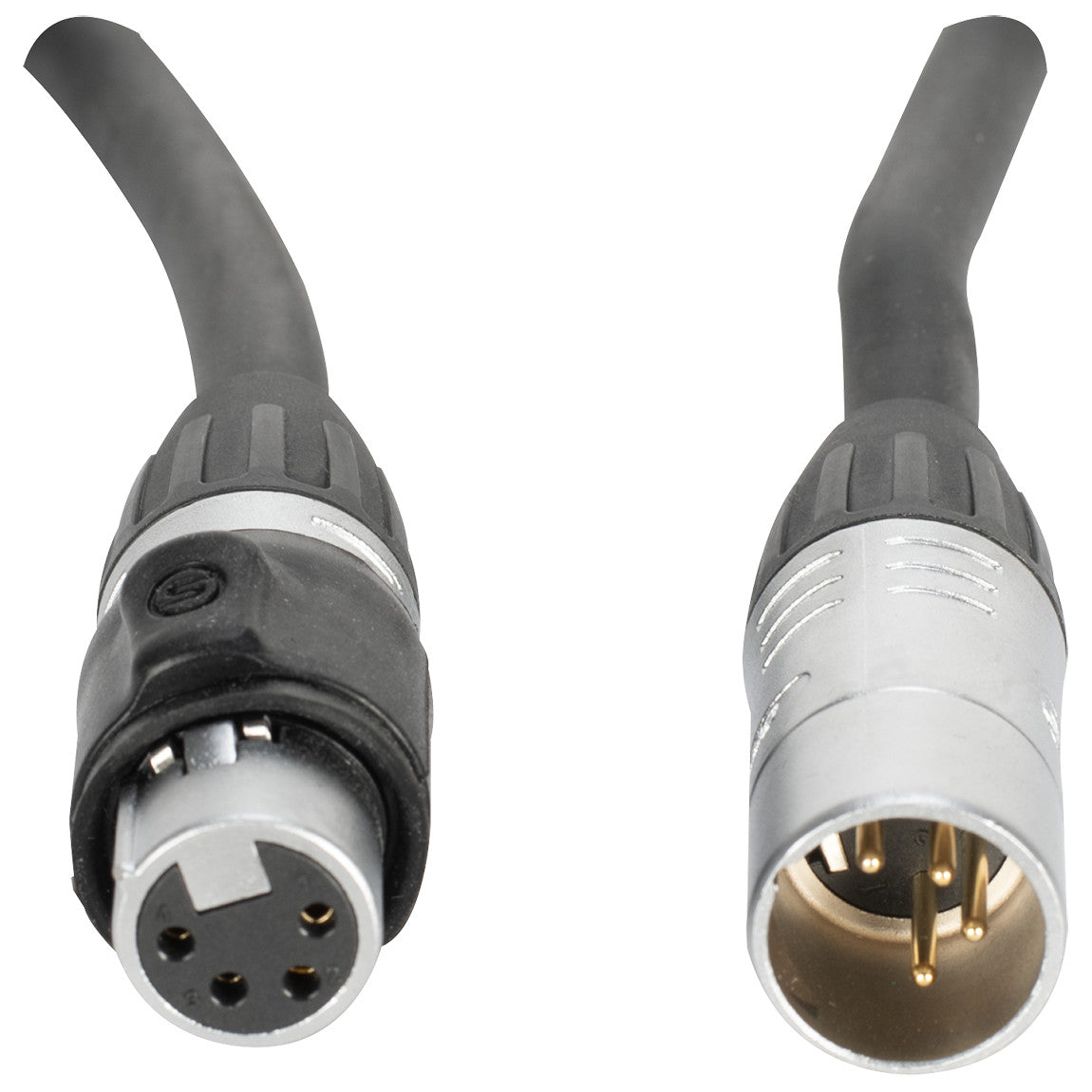

  • Proprietary IP Rated Power/Data Combo Cables
  • Available in, 16AWG; 2/3/5/10/12/15/20/25/30/50 Foot Lengths and 12AWG; 20/25/30/50 Foot Lengths
Log in or register for YOUR best price

PIXEL DRIVER 4000 V3™ is designed specifically for the Elation PIXEL TAPE 16IP, 40IP, PIXEL BAR 30IP, 60IP, 120IP series and PIXEL WASH 40IP, and provides easy and versatile control options including simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels, 1,020 pixels per port, via Kling-Net, Art-Net and sACN (streaming ACN) protocols.

The PIXEL DRIVER 4000 V3 features a universal auto switching power supply (100-240v), a 4-button LCD control menu display, RJ45 Ethernet in/out ports, and (4) outputs which use proprietary IP rated 4pin combo cables (sold separately) that supply power and data to each pixel product, (available in lengths from 2 to 50 feet). The PIXEL DRIVER 4000 V3 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).

View full details
  • CONTROL / CONNECTIONS
    • Manual RGB Mode
    • Internal Programs
    • Art-NET | sACN | Kling-NET
    • 2 RJ45 Ethernet Ports
    • 4 4pin Power/Data Outputs
    • USB Port for Firmware Updates
  • SIZE / WEIGHT
    • Length: 11.8” (301mm)
    • Width: 18.9” (480mm)
    • Height: 2.9” (74mm)
    • Weight: 10.8 lbs. (4.9kg)
  • ELECTRICAL
    • AC 100-240V - 50/60HZ
    • 800W Max Power Consumption
    • 4°F to 113°F (-20°C to 45°C)
  • APPROVALSCE | cETLus (Pending)
