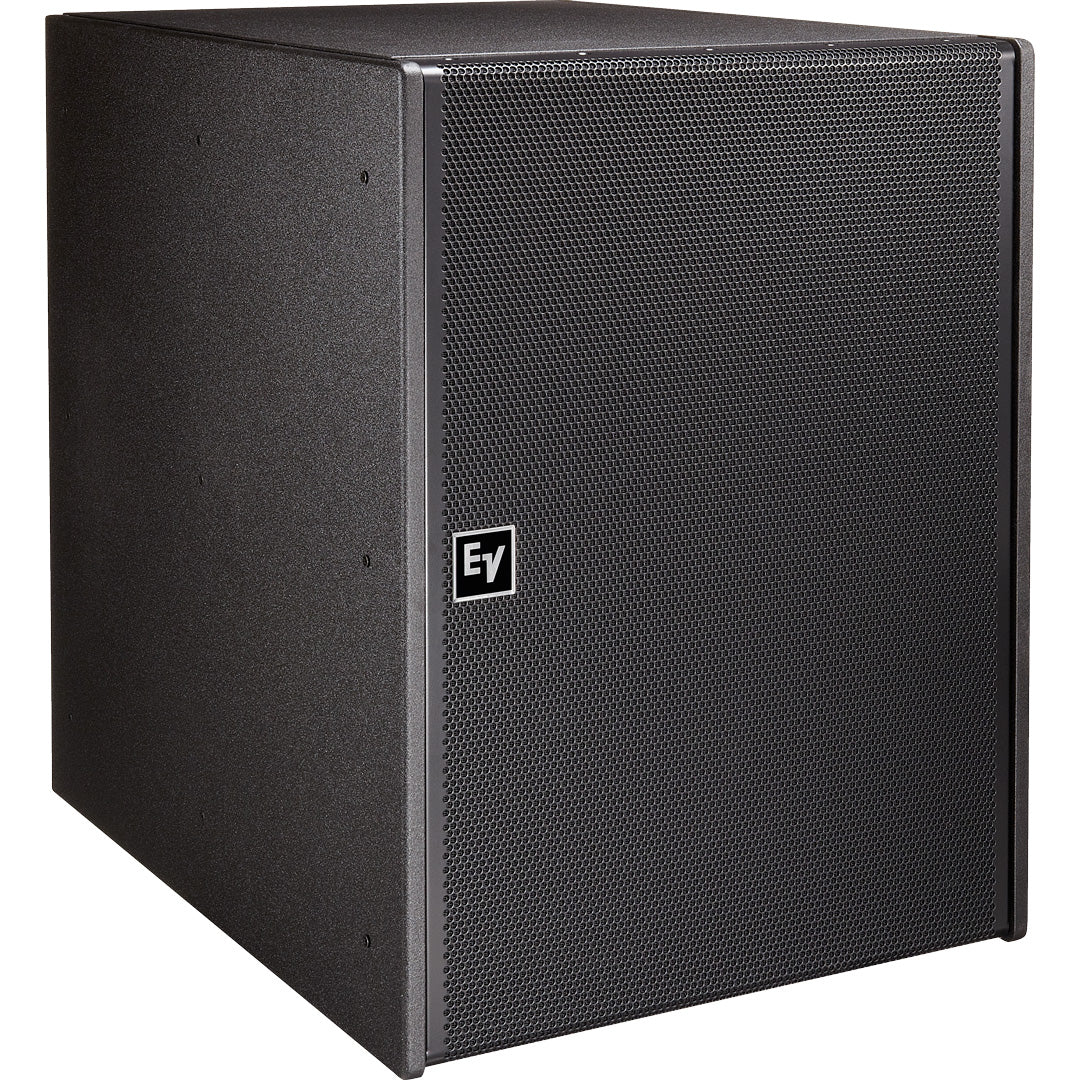

Electro-Voice EVA-2151D Dual 15-Inch Line Array Subwoofer | Color: Black
Electro-Voice EVA-2151D Dual 15-Inch Line Array Subwoofer | Color: Black
SoundPro Item: 45378 | Part Number: EVA-2151D-BLK
In stock and ready to ship
- High power, front loaded
- Ideal for fixed installations
- Seamless rigging with EVA line arrays
- DVX3159A woofer for low distortion at high SPL
- Steel-reinforced 13-ply birch enclosure
- Two DVX3159A woofers for low distortion at high SPL
- 100 dB sensitivity (1 W / 1 m half space)
- Power handling: 1000 W continuous, 4000 W peak
- 130/136dB maximum SPL (continuous/peak)
The Electro-Voice EVA-2151D is a high-power, front-loaded subwoofer module for use with EVA full-range line-array modules, designed exclusively for fixed installation applications. The unique acoustic and integrated rigging design of the EVA series allows for construction of vertical arrays up to eight modules high using any combination of EVA-2151D and/or EVA-2082S modules. The enclosure is constructed of 18-mm 13-ply birch plywood reinforced with internal steel rigging top to bottom and coated with EVCoatTM for durability and professional appearance.
The EVA-2151D’s DVX3159A 15” woofer is specially designed for subwoofer duty to provide reliable low-frequency performance with solid impact and low distortion at high sound pressure levels. Intermodule tie plates included with the EVA-2151D provide for splays of 0° or 5° between subwoofer modules to help accommodate the wide variety of array configurations possible, including stand-alone subwoofer arrays.
The Expandable Vertical Array (EVA) series from Electro-Voice is a vertical line array with a unique, elegant system design that provides a simple solution for installed sound applications. EVA is an affordable array option that offers true line array performance, streamlined and minimalistic rigging, and versatile and user-friendly installation options.
- Frequency Range (-10 dB) 28 - 200kHz (Half space)
- Suspension EVA grid (sold separately)
- Minimum Impedance 2.8Ω
- Nominal Impedance (Passive) 4Ω
- Speaker Type Subwoofer, Line-array
- Frequency Response (-3 dB) 200Hz (Half space)
- Max. SPL/1m (calc) 136dB (Half Space)
- Coverage (Nominal -6 dB) H 360°
- LF Transducer 2 x DVX3159A
- Coverage (Nominal -6 dB) V Omnidirectional°
- System Power Handling (Continuous/Program/Peak) 1000/2000/4000Watts
- Crossover Frequency 100Hz (active)
- Enclosure Material Birch Plywood
- Grille 16 GA Galvanneal, powder-coated; PI Version: stainless steel with hydrophobic cloth
- Sensitivity 1 W/1 m 100dB (Arithmetic average, 55-100Hz, half space measurement. )
- Height 36.63" (930.4mm)
- Width 23.5" (597mm)
- Depth 31.2" (792.5mm)
- Recommended High-Pass Frequency 32Hz (24dB per Octave BW, Half Space)
- Weight Net 178.13lbs (80.8kg)
- Input Connections Phoenix Euroblock
- Passive Power Handling 4000W peak
