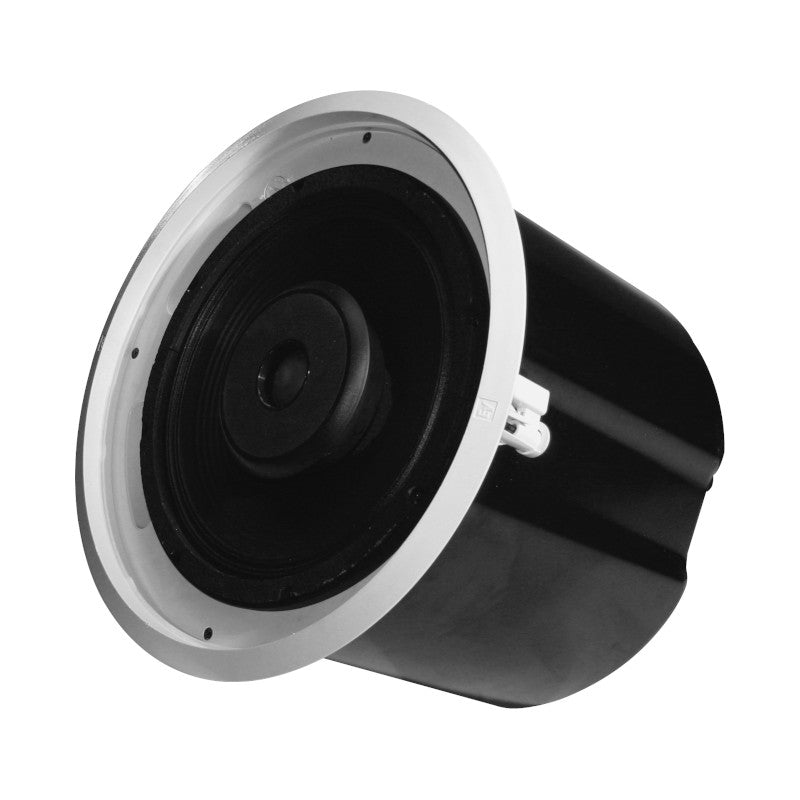

• Electro-Voice EVID C12.2 12'' 2-Way Coaxial Ceiling Speaker
1 1

Electro-Voice EVID C12.2 12-Inch Ceiling Speaker

Electro-Voice EVID C12.2 12-Inch Ceiling Speaker

SoundPro Item: 45494 | Part Number: EVID C12.2

$797.00
$797.00 $797.00
Your Price Sold out
MSRP: $797.00 | MAP: $797.00

Usually ships in 5-7 business days

  • Full-range power for high ceilings, large spaces
  • High sensitivity, high power-handling
  • Integrated transformer with automatic saturation compensation for distortion free 70V, 100V, or 8 Ohm use
  • Front-panel mode/wattage selector
  • White semi-gloss perforated grille
  • Heavy-gauge steel enclosure in black
  • 3/8" threaded-rod mount points for open ceilings
  • Safe, easy installation with included tile bridge and mounting ring
  • Complete package, requires no additional accessories
Log in or register for YOUR best price

The EVID C12.2 loudspeaker system is a high-efficiency two-way ceiling loudspeaker package for high ceiling applications. The loudspeaker features the Electro-Voice® EVID 920-8B transducer, a 12" coaxial with high power handling and 100 dB sensitivity. The integrated 64W transformer allows for use in 70V/100V applications and includes automatic saturation compensation. Transformer tap selection is via a convenient switch on the front baffle.

The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from heavy gauge steel and has a durable black powder coat that blends in when used in open ceiling applications. The rear enclosure provides an optimum internal volume for extended low-frequency performance.

View full details
  • Frequency Response (-3dB)85Hz - 18,000Hz
  • Frequency Range (-10 dB)65Hz - 20,000Hz
  • Axial Sensitivity100 dB (SPL 1W/1m)
  • Max. Calculated SPL126 dB
  • Power Handling
    • 8 Ω: 100W RMS
    • 70V: up to 64W
    • 100V: up to 64W
  • Impedance8 Ω nominal (transformer bypass)
  • Crossover Frequency2,000 Hz
  • Rec. Highpass Frequency60 Hz
  • Transducer920-8B, 12 in. high-efficiency coaxial driver
  • Transformer Taps
    • 70V: 4, 8, 16, 32, or 64W with ASC
    • 100V: 8, 16, 32, or 64W with ASC
    • Bypass: 8 Ω nominal
  • ConnectorsPhoenix type removable, with screw terminals and "loop-thru", accepts 12 AWG wire
  • Enclosure Material
    • Backcan: powdercoated steel
    • Baffle/Bezel: UL 94V-O rated ABS
  • Grilleperforated powder coated steel with safety tether
  • Mounting System
    • Integrated 4-point toggle anchors
    • Integrated 3-point pendant mount
    • Integrated 3/8" threaded rod
    • Additional secondary mount
  • Support Hardwaretile bridge, backing plate support, cutout template, paint shield
  • Dimensions
    • Depth: 13.12"
    • Diameter: 16.31"
    • Cutout Diameter Size: 15.35"
  • Weight29.3 lbs
