Electro-Voice R300-L Wireless Lavalier Microphone System
Electro-Voice R300-L Wireless Lavalier Microphone System
SoundPro Item: 85260 | Part Number: R300-L-C
Usually ships in 5-7 business days
- ClearScan automatically finds the clearest channel
- EZsync one-step channel setup

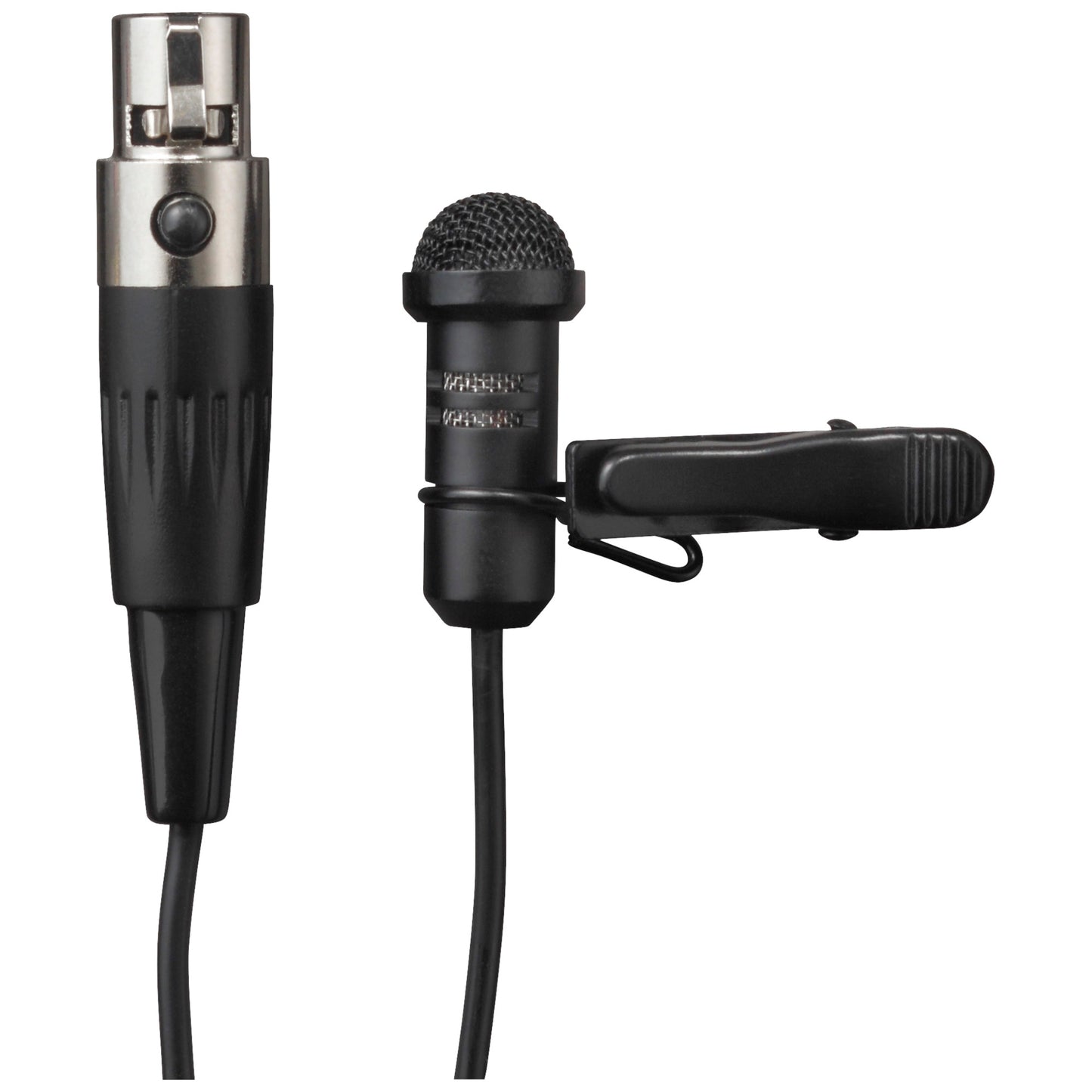

- ULM18 directional lavalier microphone
- 14 hour battery life from two AA alkaline
- Rugged metal transmitter
- Metal receiver chassis with optional rack mount
The R300-L is a robust UHF wireless bodypack system, suitable for any application where the convenience of a wireless lavalier microphone is required. The system's BP-300 rugged metal bodypack transmitter is simple to use, and is powered by two AA batteries. Included with the system, the ULM18 is a high quality directional (cardioid) condenser lavalier microphone suitable for sound reinforcement or recording of voice, and allows users the convenience of a hands-free presentation or performance experience. Exceptionally useful for sound reinforcement applications, the ULM18’s directional cardioid polar pattern reduces sound system feedback potential when used properly. The receiver's dual antenna diversity helps avoid signal dropouts, and its durable metal frame and chassis can either be used on a tabletop, or rack-mounted with optional rack mounting hardware.
- R300 Receiver
- Receiver Type: Synthesized PLL
- Frequency Range (RF)
- A Band 618 – 634 MHz
- B Band 678 – 694 MHz
- C Band 516 – 532 MHz
- E Band 850 – 865 MHz
- Number of Channels: 32
- Modulation: ± 40 kHz
- Diversity: True Antenna
- RF Sensitivity: <1.0 μV for 12 dB SINAD
- Image Rejection: > 55 dB
- Squelch: Tone Code plus Amplitude
- Power Requirements: 12–16 VDC, 500mA max
- Operating Temperature: 5°C to 45°C (41°F to 113°F)
- Dimensions (HxWxD): 1.72x7.8x8" (43x206x210mm)
- Audio Parameters
- Frequency Response: 80 Hz – 18 kHz ± 2 dB
- Balanced Output: 20 dBV (max @ 40 kHz deviation)
- Unbalanced Output: Adjustable 8 mV to 0.755V RMS
- Distortion: < 1.0%, 0.4% typical (ref 1 kHz, 40 kHz deviation)
- Signal-to-Noise Ratio: > 100 dB A-Weighted
- Dynamic Range: > 95 dB
- BP-300 and HT-300 Transmitter
- Radiated Output: 8 mW typical
- Back Lit LCD Display: Channel, Frequency, Mute, and Battery Level
- Microphone Head: Electro-Voice PL22 Cardioid Dynamic
- Standard Lavalier Microphone: Electro-Voice ULM18 Uni-Directional Condenser
- TA4F Connector Wiring: Pin 1: Ground; Pin 2: Mic Input;
- Pin 3: +5V bias; Pin 4: +5V thru 2.2kΩ
- Power Requirement: Two AA batteries
- Battery Life (Typical): > 14 hours with AA alkaline typical
- Bodypack Antenna: Flexible external 1/4 wave
- Handheld Antenna: Internal proprietary
- Bodypack Dimensions (HxWxD): 3.3x2.6x0.89" (84x66x23)
- Handheld Dimensions: 10.57" (26.7 cm) Long
