Elite Core Audio CSD5 Premium Hand-Built 5-Pin DMX Cable | Length: 10 feet
Elite Core Audio CSD5 Premium Hand-Built 5-Pin DMX Cable | Length: 10 feet
SoundPro Item: 144430 | Part Number: CSD5-NN-10
Usually ships in 5-7 business days
- 110Ω low capacitance.
- Braided Copper shielding blocks EMI and RF interference.
- Cotton filler allows the cable to remain exceptionally manageable and to coil easily.
- Designed to be extremely resilient and durable, from cable to connector.
The CSD5 from Elite Core Audio is a premium hand-built DMX cable with 5-pin Neutrik connectors. Only the finest available materials and most effective techniques are used in the manufacturing process. Every detail - the cable construction, the connector choice, the solder, the flux, the shrink tube, the testing, and the packaging, are each carefully chosen to create the finest stage and touring DMX cable available.

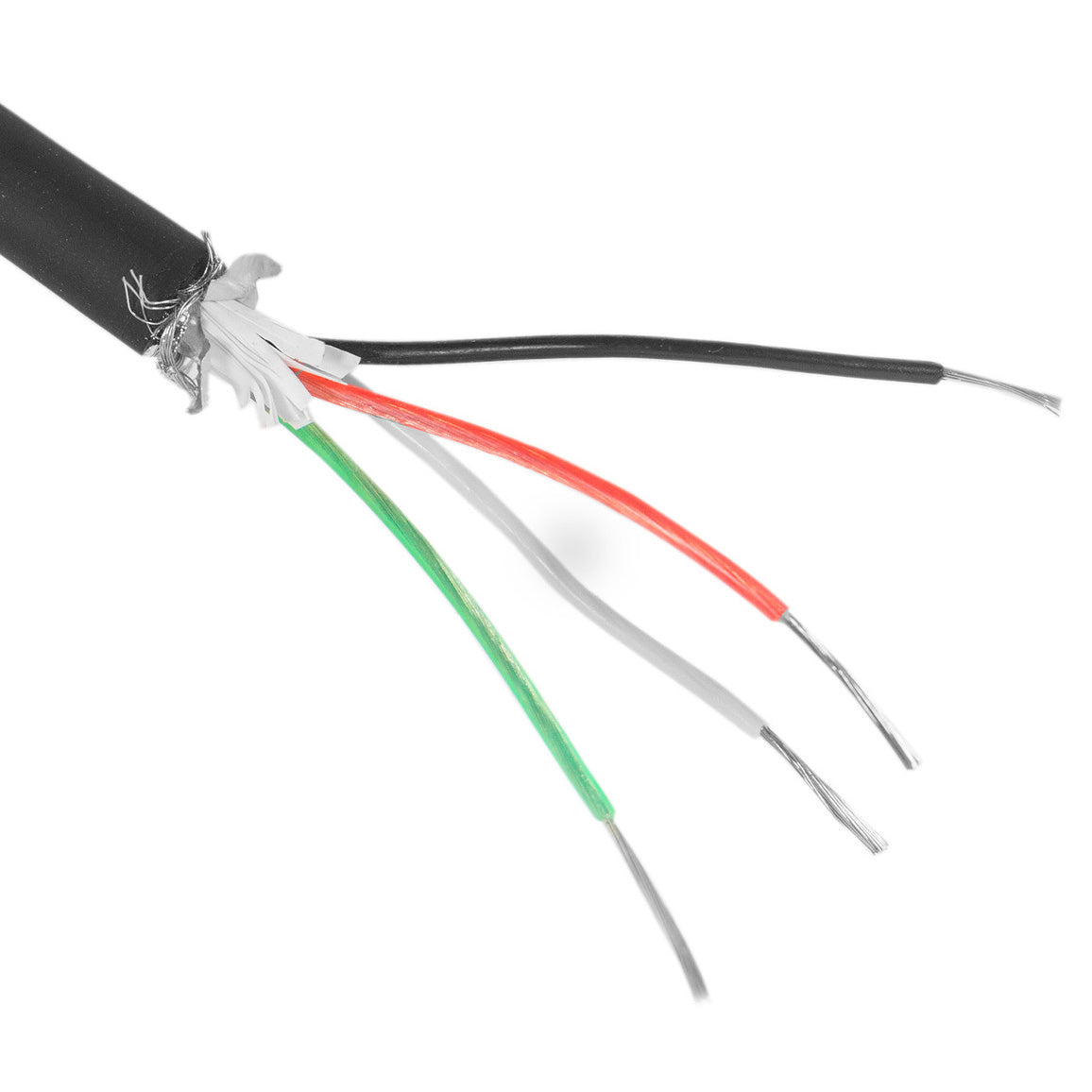

A braided copper shield and a natural cotton filler results in a cable that is extremely durable, while remaining easy to handle and comfortable to coil.
Rugged and exceptionally resistant to snags, tears, and abrasions, CSD5 cables are a great solution for completing your lighting setup.
- Wire22-AWG
- Wrap Material100%
- AL Jacket Swing Test≥1500
- DC Ω at 20°88.24Ω/km
- Conductor 20x0.12mm
- Copper Jacket Tensile Strength ≥7 MPa
- Capacitance43 pF/m
- Drain Wire7x0.2mm
- Copper Jacket Elongation≥150%
- Rated Temperature Voltage (V/DC) 60°C/30°C
- Insulation Tensile Strength≥10 MPa
- Jacket Material Black PVC
- Characteristic Impedance110Ω
- Insulation Elongation ≥150%
- Jacket Thickness 1.0mm
- Withstand Voltage0.5mA
- Insulation Material Polyethylene
- Shield Coverage87%
- Filler Material PPR
- Insulation Diameter1.65mm (±0.10mm)
- Shield DC Ω at 20°C 12.97Ω/km
- Outside Diameter 8mm (±0.3mm)
- Insulation Thickness 0.5mm
- Shield Construction 16*9 0.12mm Braided Copper
- Available Lengths3, 5, 10, 15, 25, 50, 100, or 300 feet"
- Wrap Material100%
