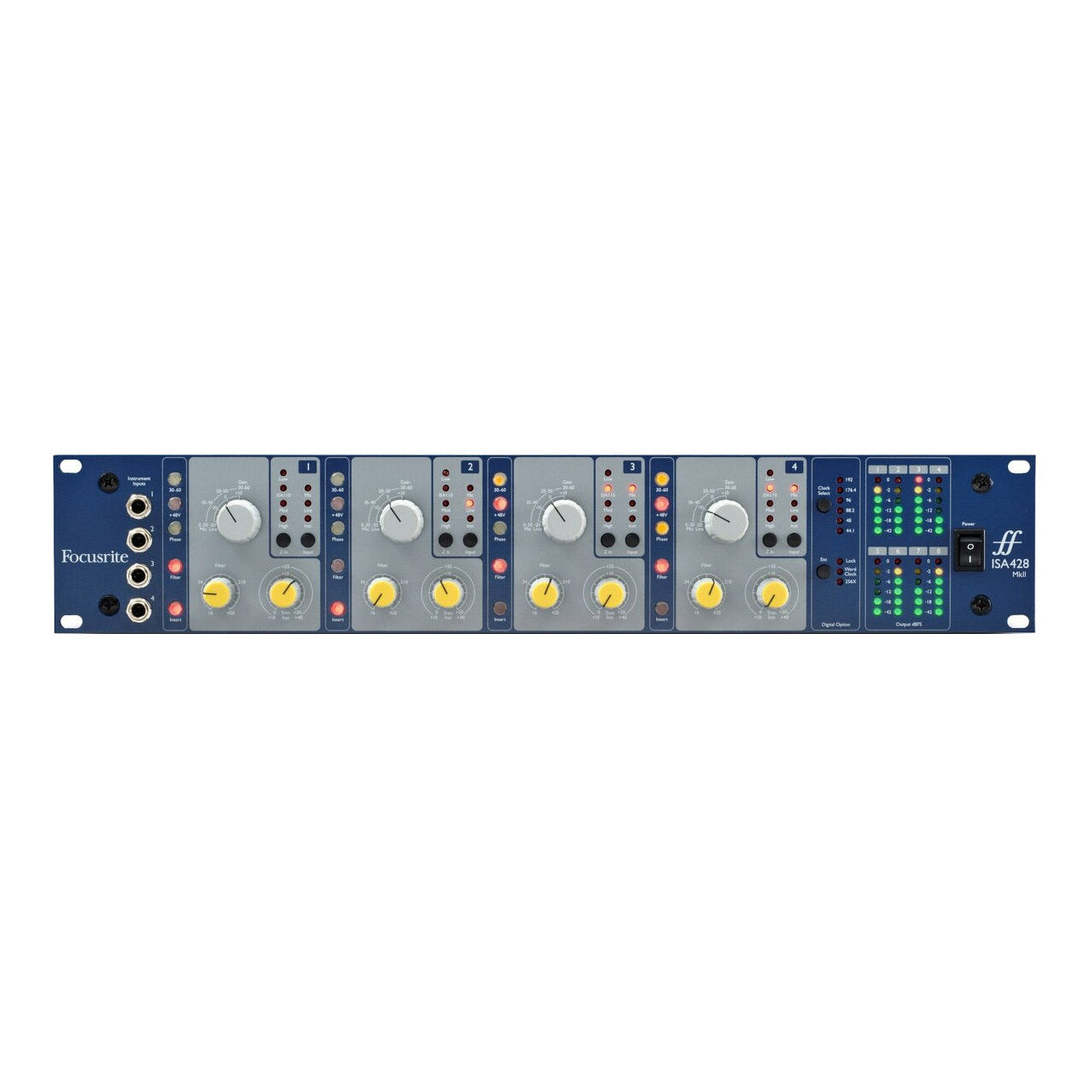

Focusrite Pro ISA 428 MKII Mic Preamp
Focusrite Pro ISA 428 MKII Mic Preamp
SoundPro Item: 16953 | Part Number: ISA428MKII
Usually ships in 5-7 business days
- Switchable input impedance including classic ISA 110 setting
- Classic ISA mic preamp design with Lundahl LL1538 input transformer
- Instrument line inputs have dedicated input connectors and front-panel switch
- Dedicated switchable insert point
- Compatible with A-D card to add 8 channels
- RedNet Control compatible
- 3 Year Warranty
The ISA 428 MkII incorporates 4 Focusrite mic pres in this user-friendly 2U enclosure so mic preamps, instrument inputs and line ins are all at your fingertips. Four impedances let you match any microphone – old or new – and access styles from the warmth of a vintage mic to modern designs with clear and transparent sound. The same circuitry as early ISA110 models is used in the ISA 428, providing a low noise floor and wide bandwidth. Gain adjustment excels on this preamp with up to 60dB available gain on rotary and gain range switches, and a continuously variable trim with an additional +20dB means a total of 80dB of gain is available.
LED meters display the peak signal level for the 4 mic pres and the direct inputs to the optional 8-channel A-D card. An overload LED in each meter flashes when SPLs strain audio quality of the system. A high-pass filler includes variable cut-off frequency for 16-420Hz. Choose from mic, line or instrument input, and variable input impedance on each mic pre. Inline processors such as compression are allowed with switchable rear-panel insert points. To emulate the style of the original Focusrite ISA 110 Equaliser and ISA 130 Dynamics Modules, the exclusive Brainworx bx_console Focusrite plug-in is included. RedNet Control and other software programs are also compatible.
Add the ISA ADN8 8-channel A-D card converter to this mic preamp for high-quality analogue-to-digital conversion. Controls on the front panel’s right side are for the additional channels provided by the optional converter card, and only function with the card installed.
- Analog audio outputs4 line XLR outputs, 4 insert send 1/4" TRS jacks
- Other I/OIEC power input connector 100Vac - 240Vac
- Mic inputs
- Frequency response at min gain: -0.35dB at 20Hz and –3dB at 122kHz
- Frequency response at max gain: –2.5dB at 20Hz and –3dB 103kHz
- Gain range: 0dB to 60dB in 10dB steps, plus 0dB to 20dB continuously variable trim
- Max headroom: 7.4dBu
- Noise EIN: -126dB (measured at 60dB of gain with 150O termination and 20Hz/22kHz bandpass filter)
- Noise at main output with unity gain: -98dBu (measured with a 20Hz/22kHz bandpass filter)
- SNR: 123dB (relative to max output 25dBu) 120dB (relative to 0dBFS ( 22dBu)
- CMRR: 88dB
- Input impedance, variable: 600O, 1400O, 2400O, 6800O
- Line inputs
- Frequency response at unity gain (0dB): -0.3dB at 20Hz and –3dB at 94kHz
- Gain range: -20dB to 10dB in 10dB steps, plus 0dB to 20dB continuously variable trim
- Max headroom: 25.4dBu
- THD N: 0.002 (measured with 4dBu input signal, 0dB gain setting, with a 20Hz/22kHz bandpass filter)
- Noise at main output with unity gain: -91dBu (measured with a 20Hz/22kHz bandpass filter)
- SNR: 116dB (relative to max output 25dBu) 113dB (relative to 0dBFS 22dBu)
- Input Impedance: 10kO
- Instrument inputs
- Gain range: 10dB to 40dB continuously variable
- Max headroom: 11.5dBu
- Noise at main output with min gain: -95dBu (measured with a 20Hz/22kHz bandpass filter)
- Input impedance: ->1MO
- High pass filter
- Roll off: 18dB per octave 3 pole filter
- Frequency range: 16Hz to 420Hz (continuously variable, measured at the 3dB down point)
