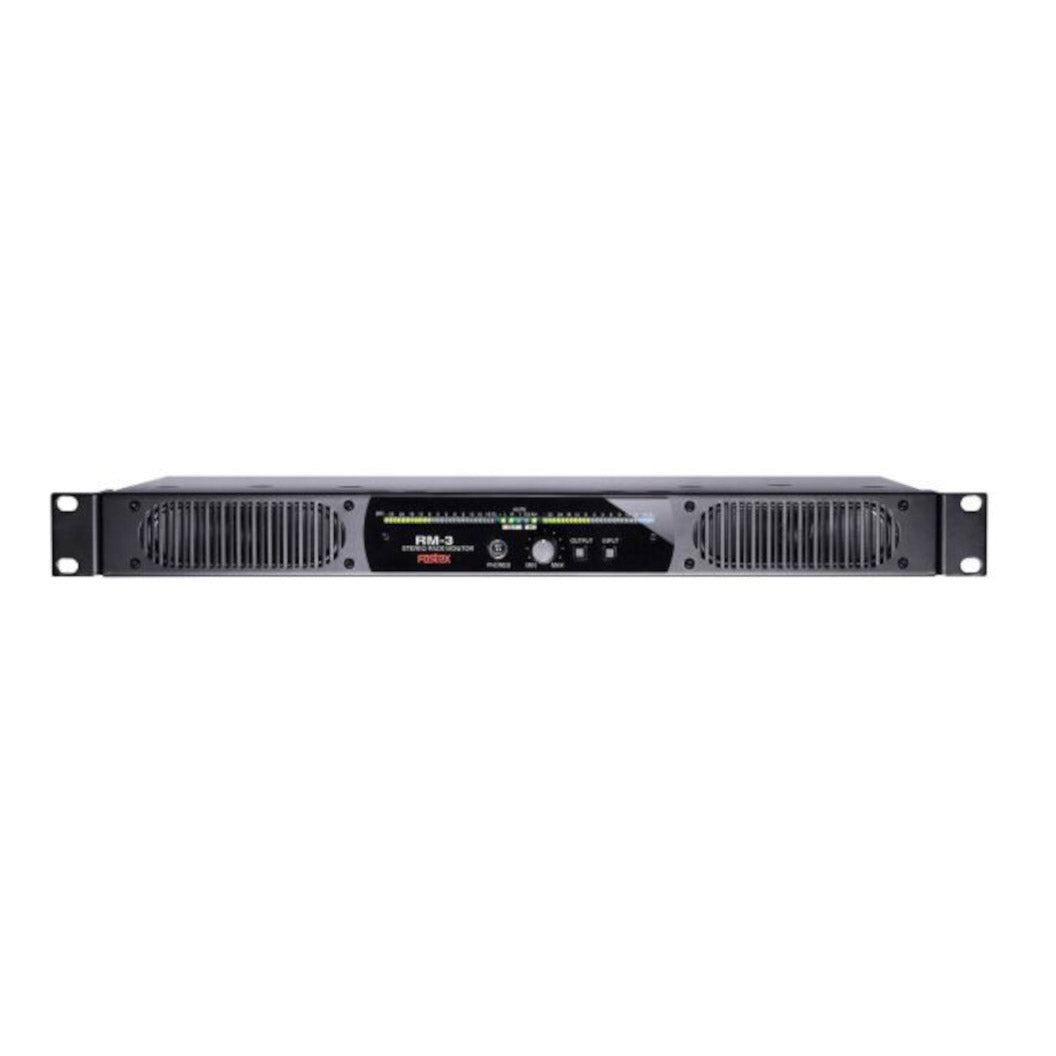

Fostex RM-3 Rack Mount Speaker Management System
Fostex RM-3 Rack Mount Speaker Management System
SoundPro Item: 11174 | Part Number: RM-3
Usually ships in 5-7 business days
- Rack mount stereo monitor speaker system with built-in 10W+10W D-class amplifier and 110x40mm elongated shape speaker units.
- Accepts both Analog input (XLR & 1/4" TS phone) and Digital Input (AES/EBU).
- Headphone out for headphone monitoring. When switching from headphone out to speaker out or vice versa, the output signal fades in to avoid unexpected level difference.
Model RM-3 is a rack stereo powered monitor speaker system to succeed the current model RM-2.
New features include a THRU OUT, brightness adjustment of LED, and auto memory of Input / Output status etc. via newly added DIP switch on the rear panel.
The RM-3 is the ideal solution for monitoring needs in various space-challenged environments such as machine rooms, video monitoring, surveillance, mobile and stationary control rooms, theme park applications where audio monitoring is needed in a compact environment.
- Speaker Section
- Units: 110 x 40 mm antimagnetic cone speakers
- Frequency Response: 200Hz–20kHz
- Amplifier Section
- Rated Output Power 10W x 2
- Digital Input
- XLR-3-31 connector (AES/EBU)
- Sampling Frequency: 44.1kHz to 96kHz
- Analog Inputs
- XLR-3-31 connector (balanced)
- Rated input level: +4/0dBu
- Input Impedance: 10k ohm or more
- 1/4” Phone jack (unbalanced)
- Rated input level: -10/-14 dBV
- Input Impedance: 10k ohm or more
- Digital THRU: XLR-3-31 connector (AES/EBU)
- Analog THRU: XLR-3-31 / 1/4” TS phone
- Phones
- 1/4” stereo phones
- Adapted load impedance: 16 ohm or more
- Maximum output: 20mW + 20mW (32ohm, 1kHz)
- Level Meter
- 26-dot LED x 2
- Reference Level: Digital -20dBFS
- Analog XLR +4/9dBu; TS phone: -10/-14dBV
- Distortion (T.H.D.) : 0.1% or less
- Dimensions (HxWxD)482x44x284 mm (including protruding parts)
- Weight approx. 3.5 kgs
- Power Requirement AC 100V to 240V 50/60Hz
- Power Consumption10W (0.5W or less in standby mode)
