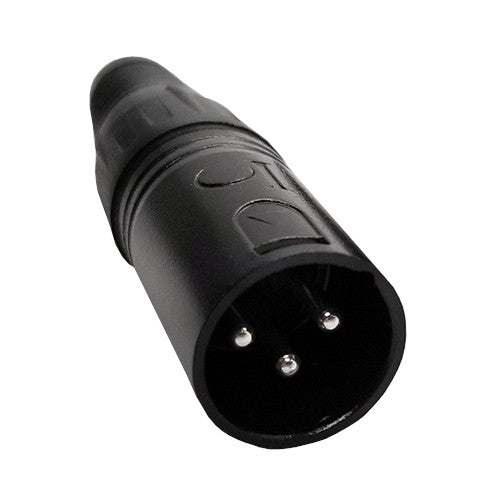

Io Audio Technologies IO-XLR3-M-BK 3-Pin Male XLR Connector
Io Audio Technologies IO-XLR3-M-BK 3-Pin Male XLR Connector
SoundPro Item: 131153 | Part Number: IO-XLR3-M-BK
In stock and ready to ship
- Durable metal shell
- Strain relief
- Silver plated contacts
- Threaded housing assembly
- Latch lock
- Solder termination
The IO-XLR3-M-BK and IO-XLR3-F-BK connectors feature durable die cast zinc shells with built in latch locks which provide a reliable connection when mated with the opposite gender. They also feature a sturdy plastic insert that tightens onto the cable to provide strain relief while an additional rubber boot delivers extended support from excessive bending. The silver plated contacts ensure a great signal every time.
3 pin XLR connectors are a perfect solution for applications requiring a rugged and dependable locking connection. Because the housing construction is threaded, the connectors require no tools for assembly, making them ideal for onsite termination and allow the user to be able to troubleshoot connection issues quickly. This connector is perfect for use in balanced audio, DMX, low voltage power, and control applications where the termination method is solder cups.
- Contacts3
- Electrical
- Capacitance Between Contacts: < 2 pF
- Capacitance Between Contact and Ground: < 2 pF
- Contact Resistance: < 3 mΩ
- Insulation Resistance: ≥ 5000 MΩ
- Dielectric Strength: 1500V @ 60s
- Current Rating: 15 A / 125 V AC
- Environmental
- Standard Compliance: IEC 61076-2-103
- UL Flammability Rating: UL 94 HB
- Temperature Range: -40°C ~ +70° C (-40°F ~ +158°F)
- Mechanical
- Lifetime: > 1000 Mating Cycles
- Cable O.D.: 3.5 - 8.0mm
- Wiresize: 2mm max
- Wiring: Solder Contacts
- Solderability: Complies with IEC 60068-2-20
- Material
- Pins: brass
- Pin Plating: Silver
- Push Button: Die Cast Zinc
- Locking Mechanism: Stainless Steel
- Locking Mechanism Finish: Tin
- Shell: Die Cast Zinc
- Shell Finish: Black (Electrocoated)
- Insert: POM
- Bushing: PVC
