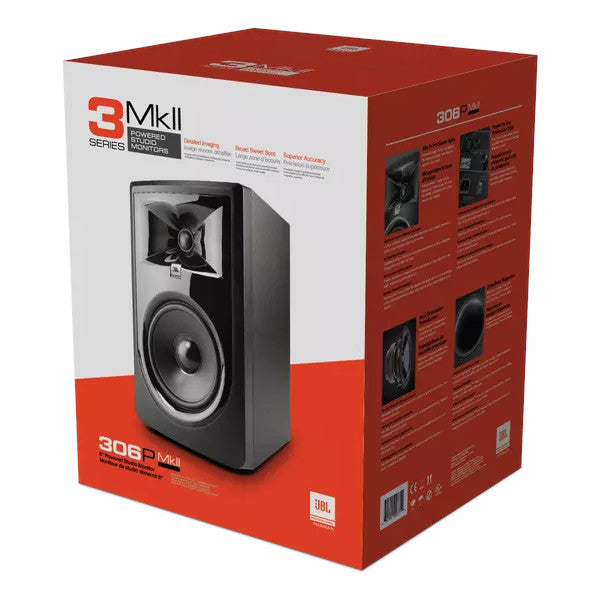

JBL 306P MKII 6-Inch Powered Studio Monitor
JBL 306P MKII 6-Inch Powered Studio Monitor
SoundPro Item: 25569 | Part Number: 306P MKII
Usually ships in 5-7 business days
- 3-position HF trim switch
- Patented Slip Stream low-frequency port
- Dual-integrated, custom Class-D amplifiers
- Flexible connectivity
- Engineered to JBL Linear Spatial Reference design criteria
- Strenuous JBL 100-hour full-power test
- Sleek, modern design
The next-generation JBL 306P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 306P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the critical listening capabilities of any modern workspace. Featuring patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 306P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.
- LF Driver Size 165 mm (6.5")
- HF Driver Size 25 mm (1")
- HF Driver Type Soft dome
- Crossover 1425Hz 4th order acoustic Linkwitz-Riley
- Power Configuration Bi-amplified
- HF Driver Power Amp 56 W Class D
- LF Driver Power Amp 56 W Class D
- Frequency Response 47Hz – 20kHz (±3dB)
- Frequency Range 39Hz – 24kHz (-10dB)
- Low Frequency Extension 39Hz (-10dB)
- Maximum Continuous SPL 92dB
- Maximum Peak SPL 110dB
- Maximum Peak Input Level +6dBV / +20.3dBu (-10dBV / +4dBu)
- System Distortion Criteria <10% THD at maximum output with full compressor / limiter engagement
- Electrical Distortion Criteria 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
- Signal to Noise Ratio 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
- Coverage Pattern 120° x 90° (horizontal x vertical)
- HF Trim Control -2dB, 0dB, +2dB
- Boundary EQ LF Shelf @ 50Hz
- AC Input Voltage 100 – 240VAC (±10%), 50 / 60Hz
- Dimensions
- Height: 361 mm (14.2")
- Width: 224 mm (8.8")
- Depth: 282 mm (11.1")
- Net Weight: 6.1 kg (13.42 lbs)
- Design
- Enclosure Type: Ported
- Enclosure Construction: 15mm MDF
- Enclosure Finish: Matte black PVC
- Baffle Construction: Injection-molded structural ABS
- Audio Input
- Analog Input Types: 1 x XLR female, 1 x TRS female, balanced
- Input Sensitivity: 92dB / 1m (-10dBV Input)
