JBL AC118S 18" High Power Subwoofer
JBL AC118S 18-Inch High Power Subwoofer

JBL AC118S 18-Inch High Power Subwoofer

SoundPro Item: 43231
MSRP: $1,386.00

Add to Wish List

Account manager
Contact an Account Manager for your personalized price

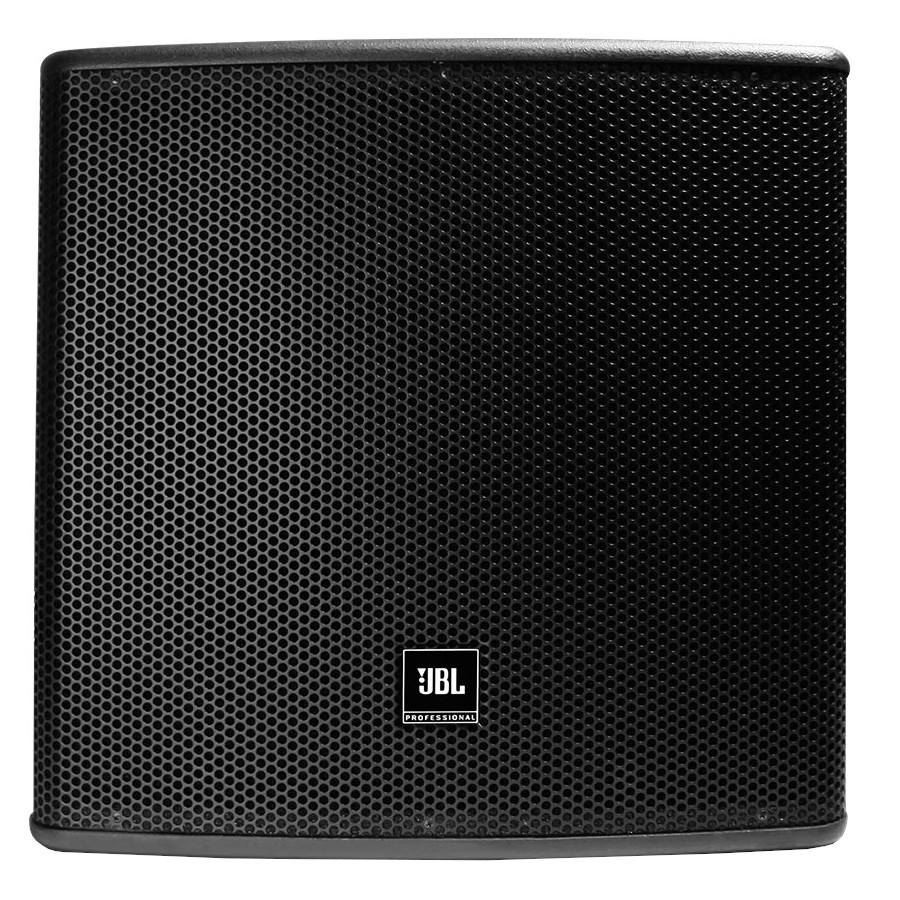

AC118S is a high power subwoofer system comprised of one 459 mm (18 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility.

As a part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC118S provides a natural low-frequency sound quality.

JBL AC118S Features

  • High power and long excursion driver for lower frequency reproduction
  • High sensitivity with lower power compression
  • Large port for high output and low-frequency reinforcement
  • Multiple Attachment Points for Ultimate Flexibility
  • Robust 18 mm multiply hardwood with textured black finish
  • AC118S 18" High Power Subwoofer1
  • Frequency Range (-10dB) 32 Hz - 250 Hz
  • Frequency Response (±3 dB) 40 Hz - 250 Hz
  • System Sensitivity (1w @ 1m) 95 dB
  • Nominal Impedance 8 ohms
  • Maximum SPL (1m) 122 dB (128 dB peak)
  • System Power Rating
    • 600W (2400W peak), 2 hrs (AES rated)
    • 450 W/900 W/1800 W (Continuous/Program/Peak) (IEC rated)
  • LF Driver 1x 18″ woofer (P/N: 5021800), 457.2 mm (18 in) driver with 75 mm (3 in) voice-coil
  • Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
  • Enclosure 18 mm multi-ply hardwood plywood
  • Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
  • Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
  • Suspension Attachment 12 x M10 threaded suspension points
  • Dimensions (H x W x D) 548 mm x 561 mm x 720 mm 21.5 in x 22.0 in x 28.3 in
  • Net Weight (each) 32.3 kg (71.2 lbs)
  • Nominal LF Driver Impedance8 ohms
