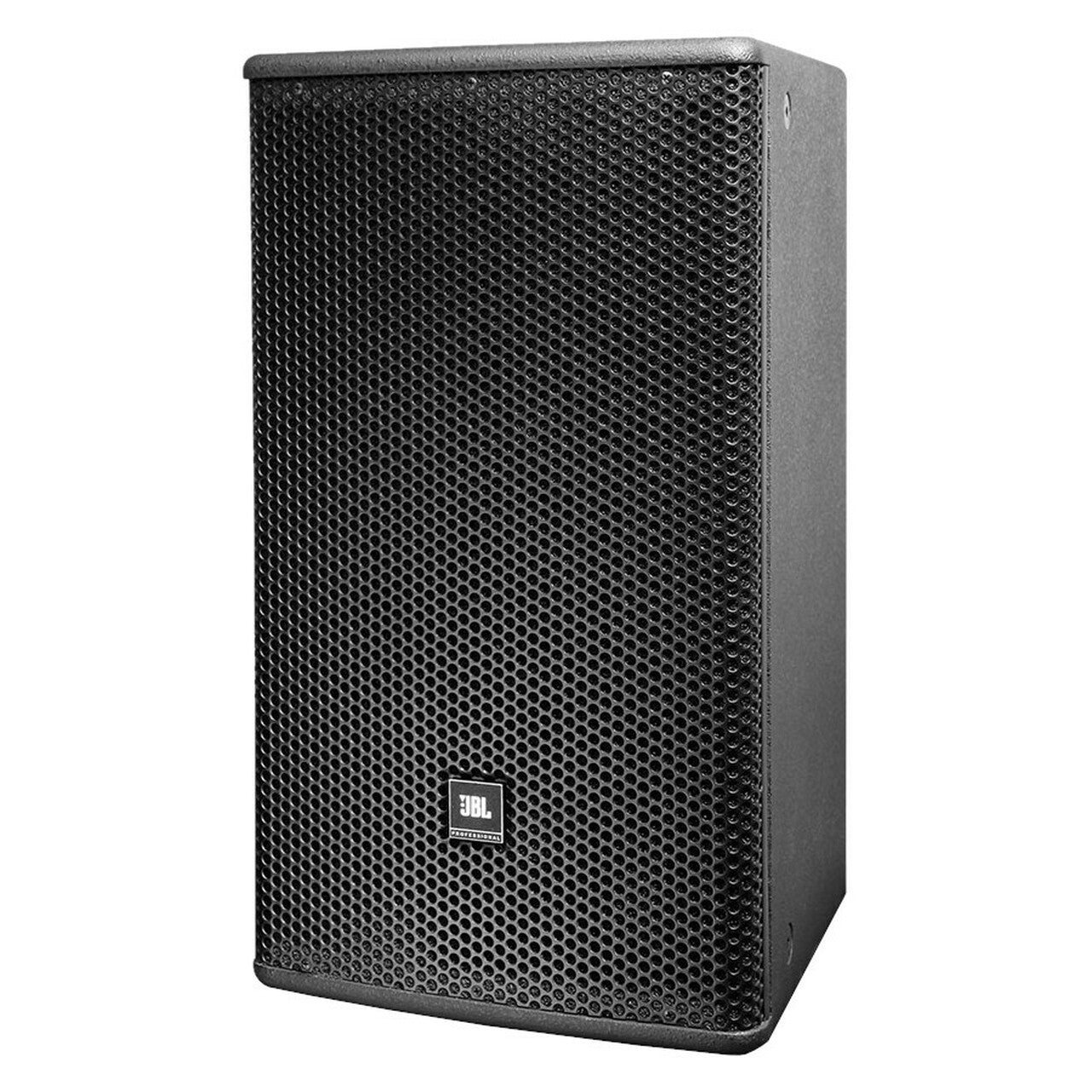

JBL AC195 10-Inch Surface Mount Install Speaker | Color: Black

JBL AC195 10-Inch Surface Mount Install Speaker | Color: Black

SoundPro Item: 23294 | Part Number: AC195

$1,350.00
$1,350.00 $1,350.00
Your Price Sold out
MSRP: $1,350.00 | MAP: $1,350.00

Usually ships in 5-7 business days

  • Compact enclosure
  • 258 mm (10 in) LF transducer
  • 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 35mm (1.5") voice-coil compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for ultimate flexibility
Log in or register for YOUR best price

AC195 is a compact 2-way full-range loudspeaker system comprised of one 258 mm (10 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled off axis response.

The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount® or similar type mounting.

AC195 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

View full details
  • Frequency Range (-10dB) 68 Hz - 20 kHz
  • Frequency Response (±3 dB) 85 Hz - 18kHz
  • System Sensitivity (1w @ 1m) 95 dB
  • Nominal Impedance 8 ohms
  • Maximum SPL (1m) 118 dB (124 dB peak)
  • System Power Rating 300W (1200W peak), 2 hrs (AES rated)
  • Coverage Pattern 90° x 50° (H x V)
  • Crossover 1.8 kHz
  • LF Driver 1 x 10" woofer (P/N: 5050692), 258 mm (10 in) driver with 66 mm (2.5 in) voice-coil
  • HF Driver 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
  • Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
  • Enclosure 15 mm multi-ply hardwood plywood
  • Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
  • Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
  • Suspension Attachment 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
  • Dimensions (H x W x D) 535 mm x 310 mm x 329 mm 21.0 in x 12.2 in x 12.9 in
  • Net Weight (each) 13.1 kg (28.8 lbs)
  • Nominal LF Driver Impedance 8 ohms
  • Nominal HF Driver Impedance 8 ohms
