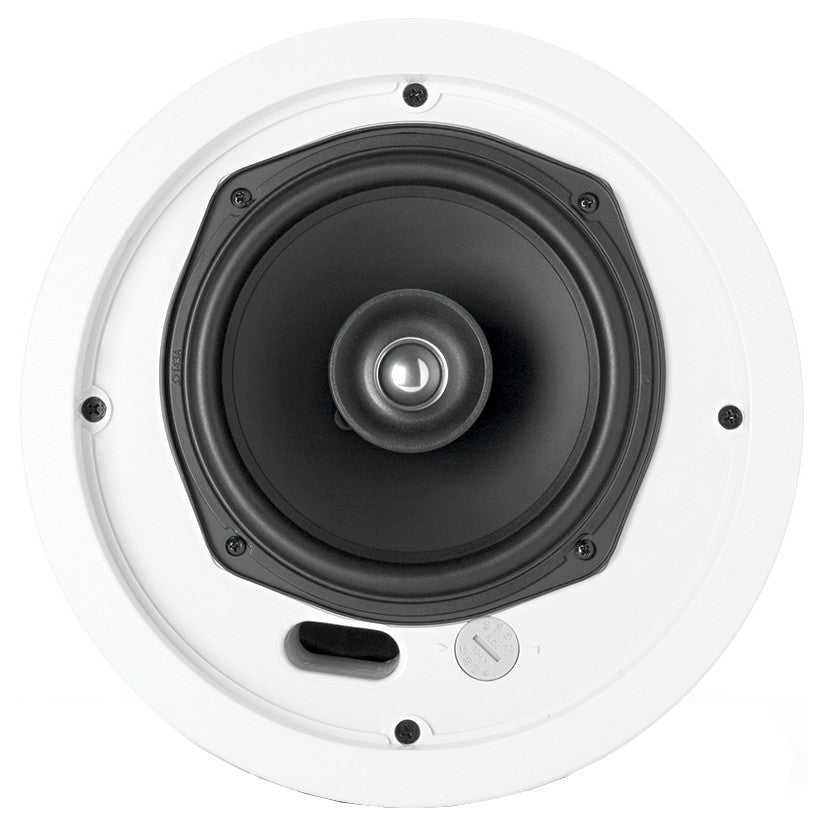

JBL Control 266C/T 6.5-Inch Ceiling Speaker
JBL Control 266C/T 6.5-Inch Ceiling Speaker
SoundPro Item: 14773 | Part Number: CONTROL 226C/T
Usually ships in 5-7 business days
- Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated diffraction-loaded tweeter
- High power, wide frequency response and low distortion for high sound level capability
- JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved system reliability
- Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking
The Control 26C ceiling speaker contains a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, delivering max sound level over a wide coverage area.
- Frequency Range75 Hz - 20 kHz
- Power Rating
- IEC System Long-Term Ratings (low-Z direct): 150 Watts Continuous Program Power
- 75 Watts Continuous Pink Noise (150W peak), 100 hrs
- Nominal Sensitivity 89 dB, 1m/1 W
- Coverage Angle 110° conical
- Directivity Index (DI) 4.6 averaged 500 Hz to 4 KHz
- Impedance 16 ohms
- Maximum SPL (1m) 107 dB (low-impedance, 113 dB peak)
- Drivers
- LF Driver: 165 mm (6.5 in)
- HF Driver: 19 mm (¾ in)
- Terminations Removable 4-pin locking connector with screw-down terminals.
- Dimensions (H x Dia) 210 mm x 252 mm (8.3 in x 9.9 in)
- Net Weight (each) 2.7 kg (6 lbs)
- Shipping Weight (pair) 6.4 kg (15 lbs)
- Sensitivity 89 dB (100 Hz - 10 kHz)
- Color White
- Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
- Backcan formed steel (included "blind-mount")
- Baffle/Rim Medium impact polystyrene, fire rated UL94V-0
- Ceiling Cutout Size 220 mm (8.75 in) diameter (cardboard cutout template included)
- Plenum Usage Yes, backcan included
