- Product typePA Complete Systems
- TypePowered
- ColorBlack
- Max. SPL (Peak) 127 dB
- Frequency response (-10dB) 37 Hz - 20000 Hz
- Dispersion (HxV) 120° x 30°
- Total Height2052 mm
- Weight35.4 kg
- FeaturesBluetooth Audio Streaming, Cardioid column, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/ Stereo Application
- Subwoofer
- Woofer dimensions: 12 "
- Woofer dimensions: 305 mm
- Woofer magnet: Ferrite
- Woofer brand: Custom-made
- Woofer voice coil: 3"
- Woofer voice coil (mm): 76.2 mm
- Cabinet construction: Bass Reflex
- Housing material: 15 mm Multiplex
- Cabinet surface: Polyurea
- Dimensions Subwoofer (WxHxD): 370x527x472 mm
- Subwoofer weight: 22.8 kg
- Mid/Hi System
- Midrange dimensions: 12x3.5"
- Midrange dimensions: 12x89mm
- Midrange magnet: Ferrite
- Midrange brand: Custom-made
- Midrange voice coil: 0.75"
- Midrange voice coil: 19 mm
- Tweeter dimensions: 2x1"
- Tweeter dimensions: 2x25.4 mm
- Tweeter magnet: Neodymium
- Tweeter brand: Custom-made
- Tweeter voice coil: 1"
- Tweeter voice coil: 25.4 mm
- Wave Guide: CD Waveguide
- Loudspeaker inputs: 1
- Speaker input connections: Custom-made multipin
- Cabinet construction mid/high: Passive Cardioid
- Mid/Hi system cabinet material: Aluminum
- Mid/Hi system cabinet surface: Powder-coated
- Mid/Hi system width: 103 mm
- Mid/Hi system height: 1540 mm
- Mid/Hi system depth: 135 mm
- Mid/Hi system weight: 12.6 kg
- Amplifier module (integrated in subwoofer)
- Amplifier: Class D
- System output (RMS): 1030W
- System output (Peak): 2060W
- Protection circuits: DC protection, Multiband limiter, Short circuit, Thermal protection
- Cooling: Convection

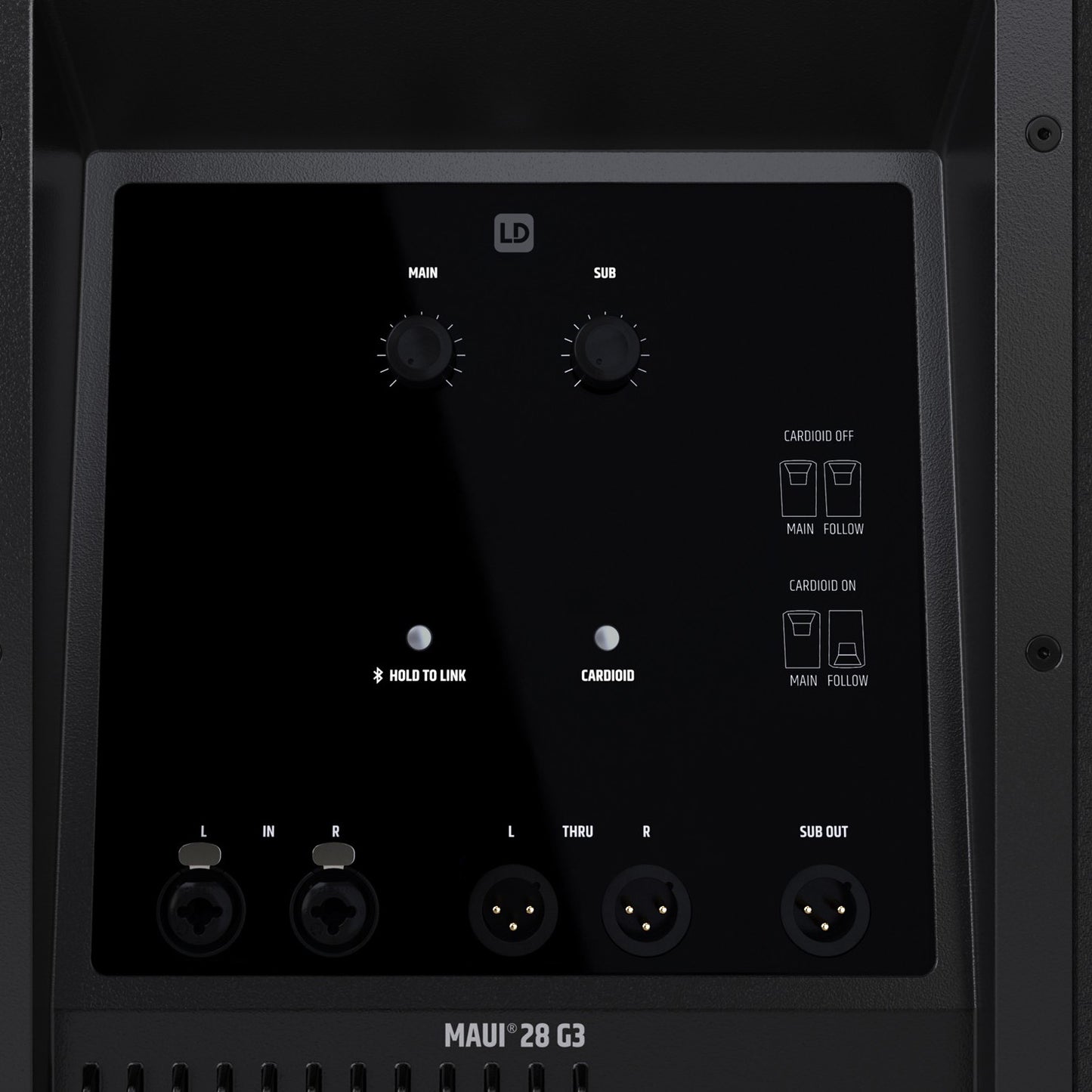

- Controls: Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level
- Indicators: Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer Mode
- Mains connector: IEC power cable (included)
- Operating voltage: 100V AC - 120V AC, 50 - 60 Hz, 220V AC - 240V AC, 50-60 Hz
- Fuse: T 5AL / 250V
- Power consumption: 400W
- Ambient temperature (operating): 0 - 40°C
- Relative Humidity: < 80% (non-condensing)
- Line Inputs: 2
- Line Input Connectors: Combo XLR / TRS
- Line Outputs: 1 x Sub OUT, 2 x THRU
- Line Output Connectors: XLR male
- Number of speaker outputs: 1
- Loudspeaker Output Connectors: Custom-made multipin
- Bluetooth Standard: A2DP
- Bluetooth Audio Decoder: AAC, SBC
- DSP characteristics
- Bit depth AD/DA converter: 24 bit
- Sampling frequency: 48 kHz
